Ceiling Hook
1. Do not remove the wall mount bracket, even if you are
not using it for mounting. This provides structural stability
to the case.
2. Be sure the ceiling has adequate reinforcement to attach
a hook anchor.

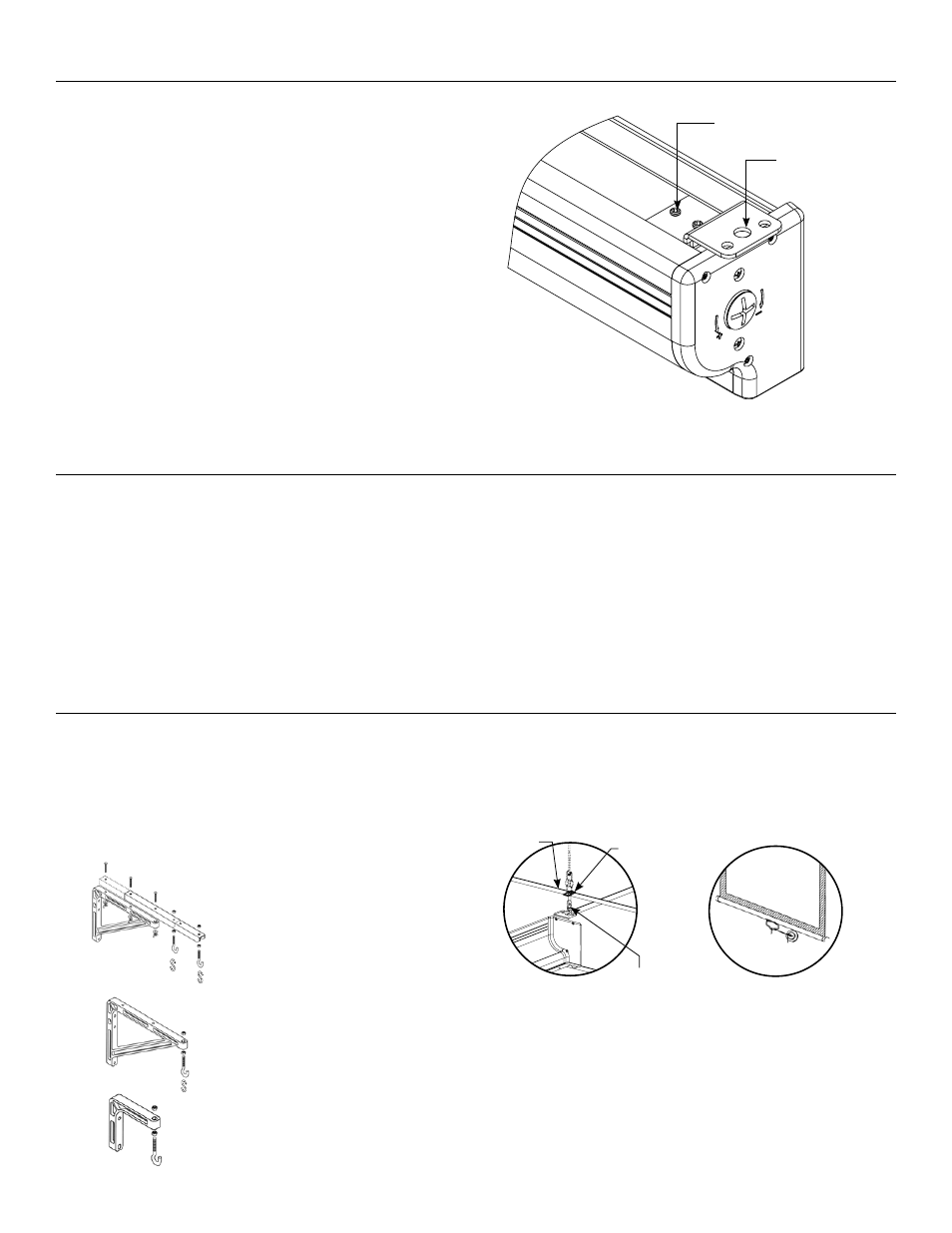

3. The top of the screen case has a channel that the ceiling
hook brackets slide into. The brackets can be attached
anywhere within 12" of the end of the case. Loosen the set
screws on the brackets and slide the brackets to the desired
location. Lock the brackets in place by tightening two set
screws. Refer to Figure 3.
4. Attach an S-hook or similar fastener to the large center
hole on the bracket.
To Lower Picture Surface
Pull screen down all the way. HESITATE – then allow screen to
retract VERY SLOWLY until it locks in place.
To Raise Picture Surface
Pull down on the pull bail, then release quickly. The screen will
retract gently into the case.
To Adjust Retraction Speed
Use a large flat screwdriver to turn the adjustment knob on the
right end of the screen (see Figure 2 or 3). To increase the travel
speed turn counterclockwise. To decrease the travel speed turn
clockwise. Adjustments should be made in half turn increments
and travel speed checked before adjusting further.
If screen locks at the bottom and will not retract, turn
adjustment knob one quarter turn counterclockwise.
Wall Brackets – (75# per pair maximum)
Da-Lite No. 6 and No. 11 Non-adjustable wall brackets and
No. 23 adjustable extension wall brackets are ideal for keystone
elimination, clearance, or corner mounting. The screen brackets
should be fastened to the studding or other solid surface and
not in the plaster only.
Installation
Operating Instructions
Screen Accessories
Hook Mount Hole
Set Screws (2)
Figure 3
No. 23 Adjustable
Wall Brackets
Screen can be extended
10", 14", 153⁄4", 181/4", 20" or
24" from wall by wing nut
and bolt adjustment.
No. 11 Wall Brackets
Screen can be extended
10" or 14" from wall by
changing position
of bracket.
No. 6 Wall Brackets
Screen can be extended
6" from wall.
T-Bar Clip
For Dropped Ceilings
50 Lb. Max. load capacity.
Tilt Lock
For Keystone Elimination
Holds back bottom of
screen in tilted position
to eliminate keystoning.
S-Hook
T-Bar clip
Ceiling
