Advantage® manual installation – Da-Lite Advantage Manual With CSR (Ceiling Recessed) User Manual

Page 3

background image

3

3/8" Threaded Rod
(Not Supplied)

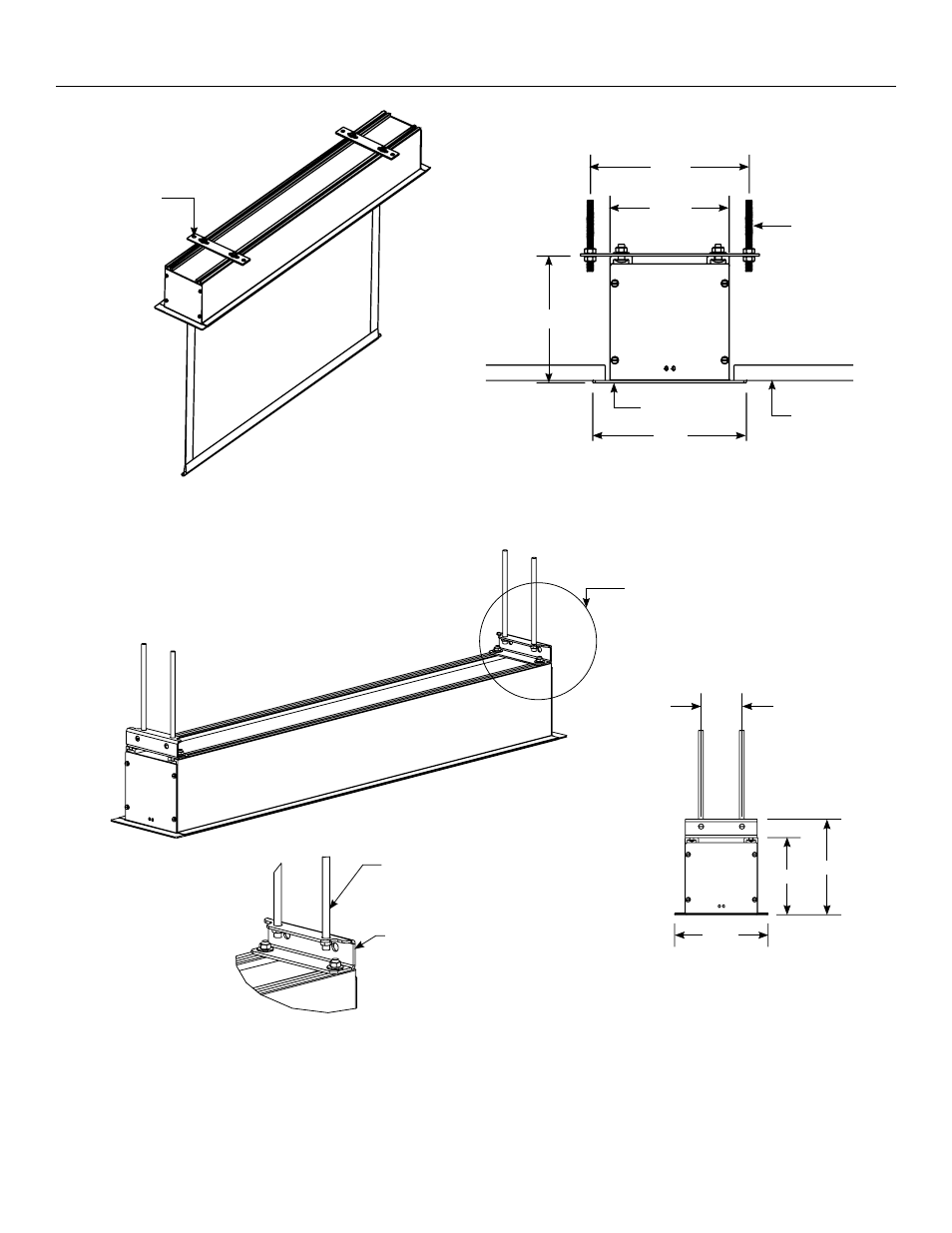

Advantage® Manual Installation

Hanger Bracket

See Detail A

Detail A

3.41"

Variable

Position

Mounting

Channel

3/8" Threaded
Rod (Not
Included)
Attached
To Mounting
Bracket

Finished
Ceiling

Self-Trimming
Flange

6 3/8"

9 1/4"

6 1/16"

7 3/4"

7.75"

6.42"

7.95"
