4

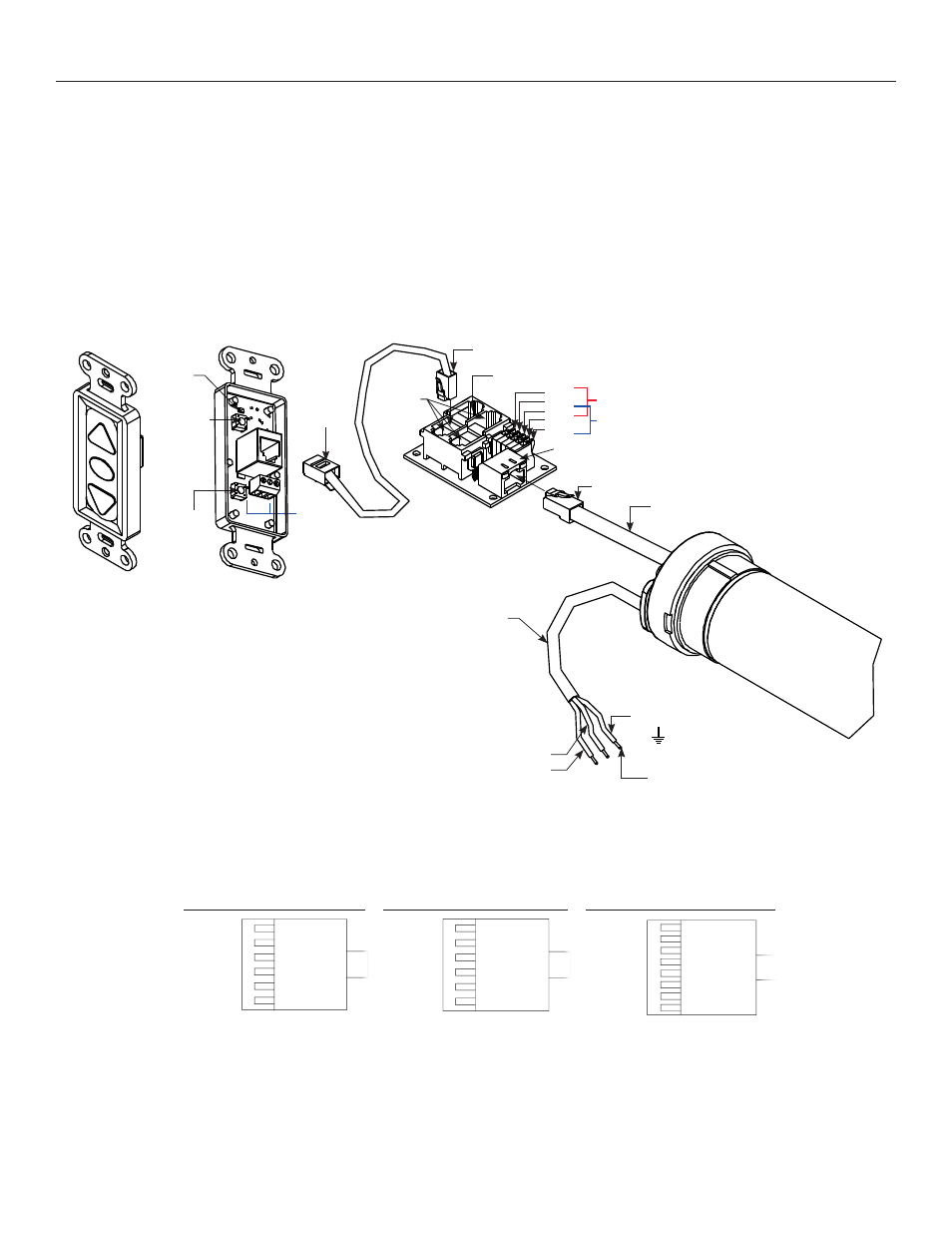

120V Wiring Diagram with Optional Built-In Low Voltage Control
Up
Down
Common
Bus
5V
Ground–Must Be Connected
To Building Ground
UP
STOP
DOWN
Power Input 120VAC / 60Hz
Green (Ground)
Black (Hot)
White (Common)
Power Wire
Data Cable
RJ-45 Jack
RJ-45 Receptacle
RJ-22 Output
RJ-22
Jack
RJ-22
Inputs
RJ-22
Jack
LED
Up Limit
Tactile
Button
Down
Limit
Tactile
Button
Front Of
Wall Switch
Back Of
Wall Switch
Dry Contacts
BUS
BUS COM 5V
BUS
3-conductor 20-24 gauge wire can be used in place of the
supplied RJ-14 cable to connect the wall switch. Connect the BUS
terminals on the wall switch to the corresponding BUS terminals
on the splitter board.
IMPORTANT NOTE: The wall switch is REQUIRED to make any
limit switch adjustments, EVEN if a third party control system is
used. Therefore, it is advised to wire the switch or provide a
3-conductor connection that is accessible.
RJ-14 Pin-Outs (Tab Is Facing Up)
Supplied RJ-14 cable
Bus (RP Data)
RQ Data
+5V
Ground
White
Green
Red
Black
RJ-22 Pin-Outs (Tab Is Facing Up)
Standard RJ-22 can be used in place of RJ-14
Bus (RP Data)
+12V
RQ Clock
RQ Data
+5V
Ground
Yellow
Green
Red
Black
White
Blue
RJ-45 Pin-Outs (Tab Is Facing Up)
+12V
Manual 2
Ground
Manual 1
RQ Clock
Bus (RP Data)
RQ Data
+5V
Blue
Green
Yellow
Red
Black
Orange
Purple
Brown
