Follow these steps if your screen and roller assembly was ordered separately from the case.
1. Remove the access door. First, remove the 2 screws from the
ends using a #2 phillips screwdriver. Be sure to support the
door during this step to avoid injury. Then lift the door slightly
and pull away from the edge of the case (Figure 1).
2. Carefully unpack screen and roller assembly. Use supplied 1/8"
hex key to remove shipping brackets attached to slat. Remove
fabric and roller assembly from shipping board using a 1/2"
wrench. Leave packing paper on roller.
3. To install screen and roller assembly, loosen (but do not
remove) four 1/4-20 nuts securing pin end bracket (opposite
end from the junction box) to the case housing. Slide the pin
end bracket towards the end of the case (Figure 2).
4. Insert the motor end square shaft into the motor end bracket
(junction box end) and secure with the clip (Figure 3).
5. Moving to the pin end of the case, slide the pin end bracket
until the hole fits securely over the pin. Tighten the 1/4-20 nuts
on the pin end bracket securely (Figure 2).
6. Complete electrical hook-up by snapping motor wire
connector into case connector (Figure 3).
8. Test installation by running screen up and down a few times.
Be prepared to stop screen should any objects obstruct the
movement of the screen. To prevent damage to the motor, the
standard duty cycle is 1 minute on and 3 minutes off.
9. Re-install the access door. Procedure is the reverse of step 1
listed above.

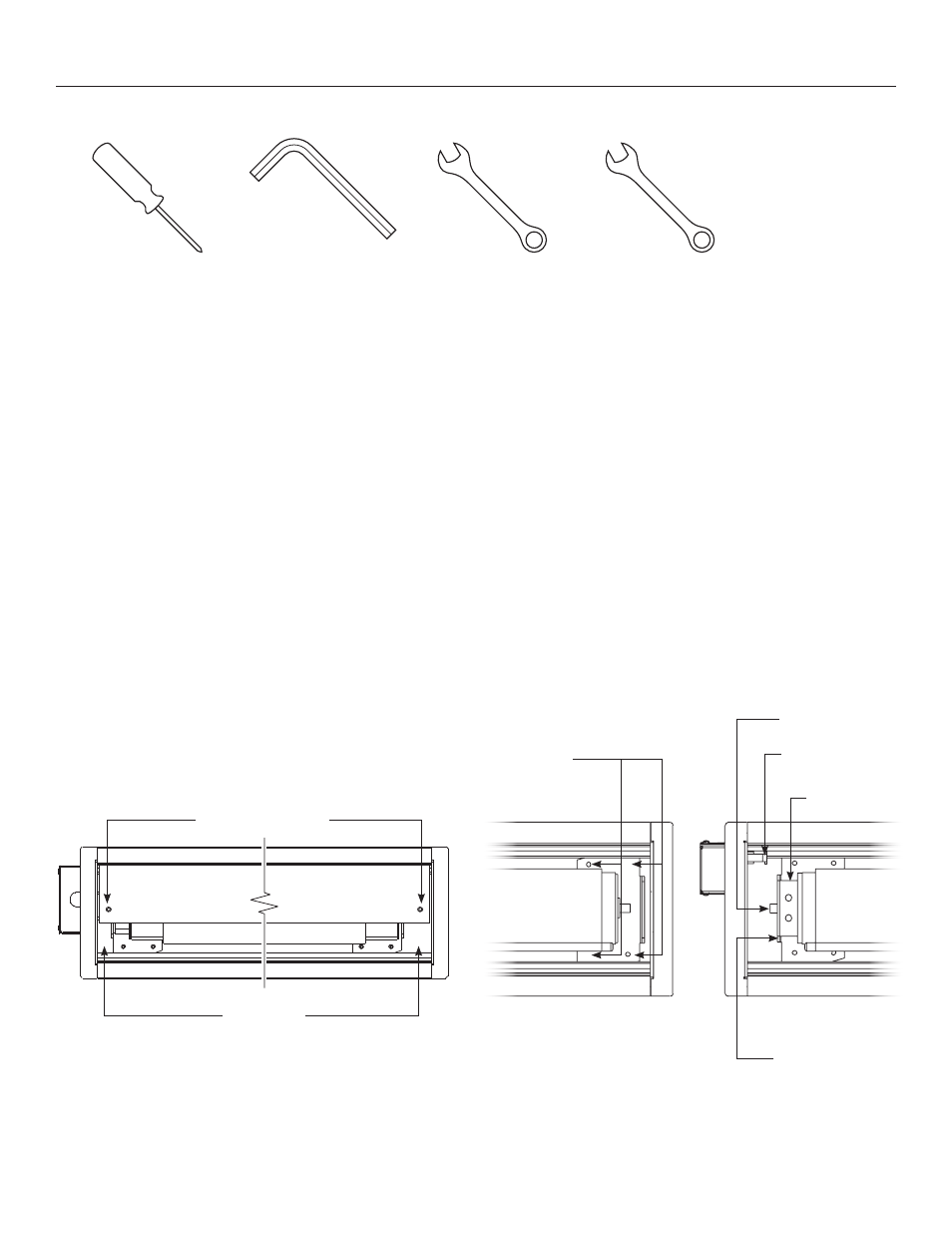

Screen And Roller Assembly Installation
Motor Mount
Bracket
Motor
Motor Power
Connector
Clip
Figure 1 Figure 3
#2 Phillips Screwdriver
1/4-20 Nuts
Figure 2
Access Door Screws
Foam Blocks
Tools required for screen and roller assembly:
1/4“ Open Wrench
or Socket Driver
1/2“ Open Wrench
or Socket Driver
1/8“ Hex Key
