18
Video control panel buttons in Figure 3- 20 are (from left to right): previous, next, pause/play, by
frame, quick play, slow play. Previous and next is based on time mode set in smart phone. For
example. In 60 min mode, previous means to play video taken one hour ago. Available modes
are: 5min, 30min, 60min. Quick mode supports max 4x speed while slow mode supports min 1/4
speed.
3.5 Image Playback
Image playback is also called Smart PictureView which can play images on smart phone as they
are saved on device. The playback supports zoom in/out via signs on screen or buttons at
bottom and move. See Figure 3- 21.

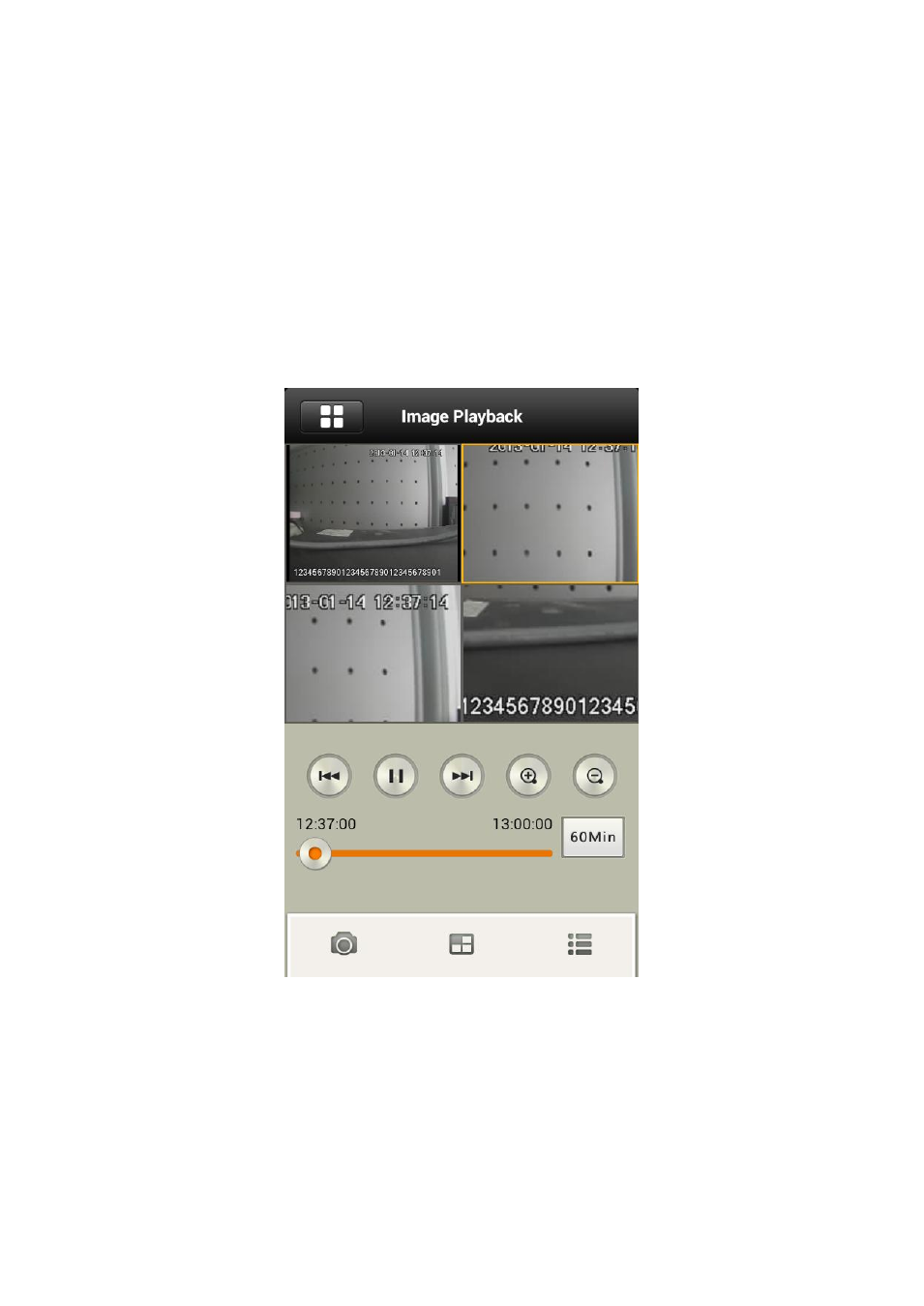

Figure 3- 21
Definitions of button in Figure 3- 21 can refer to video playback.
3.6 Alarm Push
Alarm push function is a combination of smart phone monitor software and device alarm module
which push alarm on device to smart phone and supports user to view related video plus real
