A4F-RB Broiler / Griddle Combination
The Connerton Company
Telephone: (714) 547-9218 Fax: (714) 547-1969
Specifications:
Overall Width: . . . . . . . . . . . 47”
Overall Depth (body): . . . . . 25”
Overall Height: . . . . . . . . . . 47 3/4”
Char Broiler Height: . . . . . . 47 3/4”
Broiler Grid Up: . . . . . . . . . . 30”
Broiler Grid Down: . . . . . . . 26”
Legs : . . . . . . . . . . . . . . . . . 6”
Broiler Grid pulls out: . . . . . 13”
Broiler Grid:. . . . . . . . . . . . . 17 3/4” x 18 1/2”
Char Broiler surface: . . . . . . 43” x 17”
Gas Inlet: . . . . . . . . . . . . . . 3/4” pipe
Maximum BTU: . . . . . . . . . . 216,000
Crated Weight (approx): . . . 880 lbs.

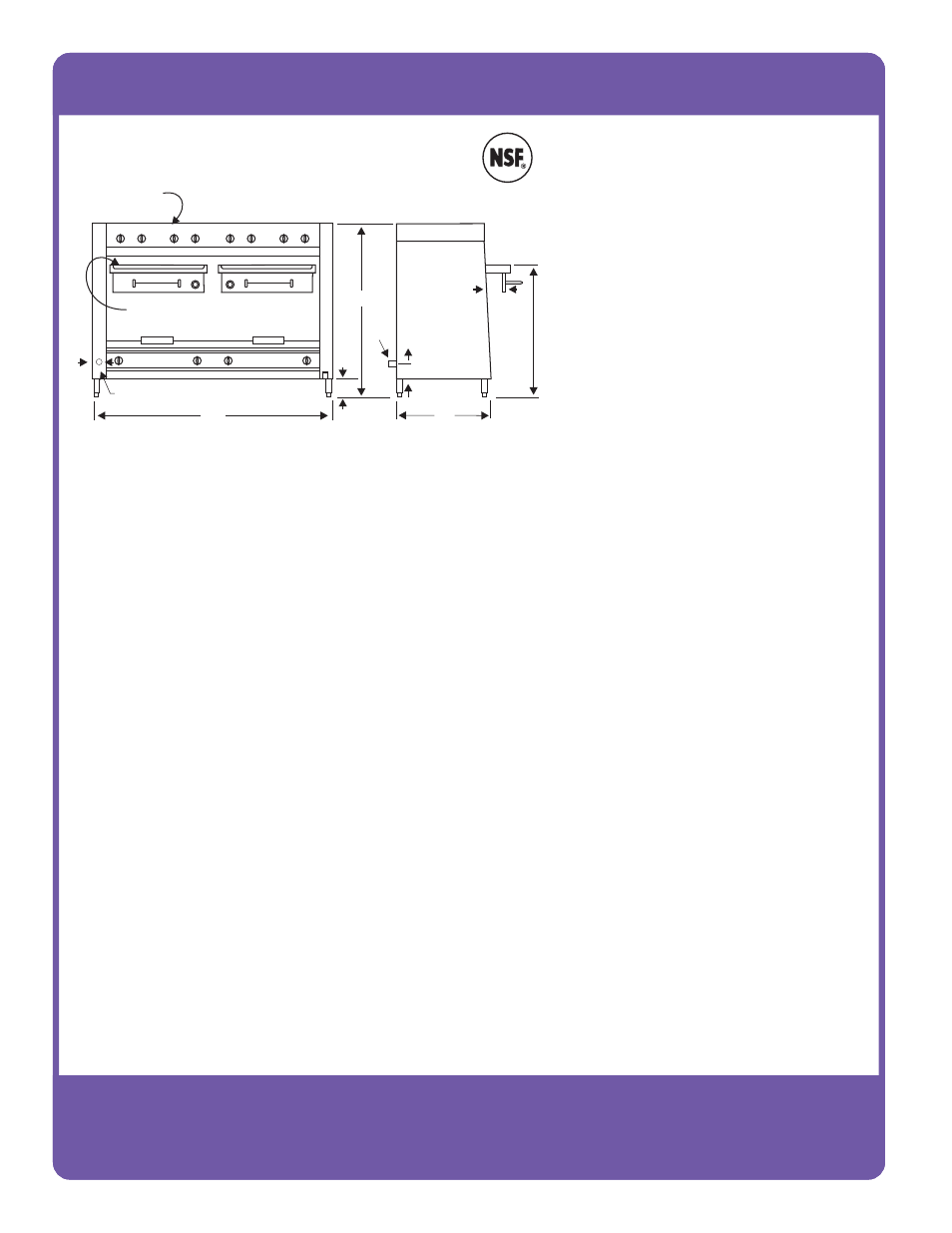

GAS INLET
2”
47”
4 1/2”
GAS
INLET
25”
47 3/4”
6”
13” max
30”
Charbroiler
Broiler Grid
- Heavily insulated, all stainless steel body with stainless steel inner body lining and stainless steel removable
side and back liners for easier cleaning
- All welded frame with stainless steel legs and adjustable feet
- Broiler griddle mechanism assembly removable for easier cleaning
- Broiler mechanism moves in and out with ease on our specially designed, heavy-duty ball bearing rollers for
loading and unloading of product
Product Specifications:
Body:
Inner Liner:
Griddle Plates:
Splash:
Burners:
Drip Pan:
Valves:
Gas Inlet:
18 Gauge #304 Stainless Steel
24 Gauge #304 Stainless Steel
Bottom -- 5/8” Highly Polished Steel Plate
14 Gauge #304 Stainless Steel
Top Radiant Broiler -- Stainless Steel w/Steel Radiants
Broiler Top -- Cast Iron w/Ceramic Radiants
Broiler Bottom -- Stainless Steel
18 Gauge #304 Stainless Steel
Heavy Duty Brass
¾ NPT
Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
Connerton Company reserves the right, without notice, to make changes and revisions in product specifications,
materials and design, which in our opinion will provide better performance, durability and efficiency.
Notes:
Gas Pressure Regulator is supplied and must be installed
Combustible Locations:
6” Clearance sides and back
Non-Combustible Locations Only: 0” Clearance sides and back
Specify type of gas and altitude if over 2,000 feet
Available Options:
o
Casters (5” Locking)
