A-1G Broiler / Griddle Combination
The Connerton Company
Telephone: (714) 547-9218 Fax: (714) 547-1969
Specifications:
DESIGN
CERTIFIED
DESIGN
CERTIFIED
- Independently controlled top thermostatic griddle
- Heavily insulated, all stainless steel body with stainless steel inner body lining and stainless steel removable
side and back liners for easier cleaning
- All welded frame with stainless steel legs and adjustable feet
- Broiler griddle mechanism assembly removable for easier cleaning
- Broiler mechanism moves in and out with ease on our specially designed, heavy-duty ball bearing rollers for
loading and unloading of product
Product Specifications:
Body:
Inner Liner:
Griddle Plates:
Splash:
Burners:
Drip Pan:
Valves:
Gas Inlet:
20 Gauge #304 Stainless Steel
24 Gauge #304 Stainless Steel
Top -- 3/4” Highly Polished Steel Plate (1” available)
Bottom -- 5/8” Highly Polished Steel Plate
14 Gauge #304 Stainless Steel
Griddle Top -- Stainless Steel
Broiler Top -- Stainless Steel w/Stainless Steel Radiants
Broiler Bottom -- Stainless Steel
18 Gauge #304 Stainless Steel
Heavy Duty Brass
¾ NPT
Connerton Company reserves the right, without notice, to make changes and revisions in product specifications,
materials and design, which in our opinion will provide better performance, durability and efficiency.
Notes:
Gas Pressure Regulator is supplied and must be installed
Combustible Locations:
6” Clearance sides and back
Non-Combustible Locations Only: 0” Clearance sides and back
Specify type of gas and altitude if over 2,000 feet
Available Options:
o
o
Casters (5” Locking)
Grooved Griddle

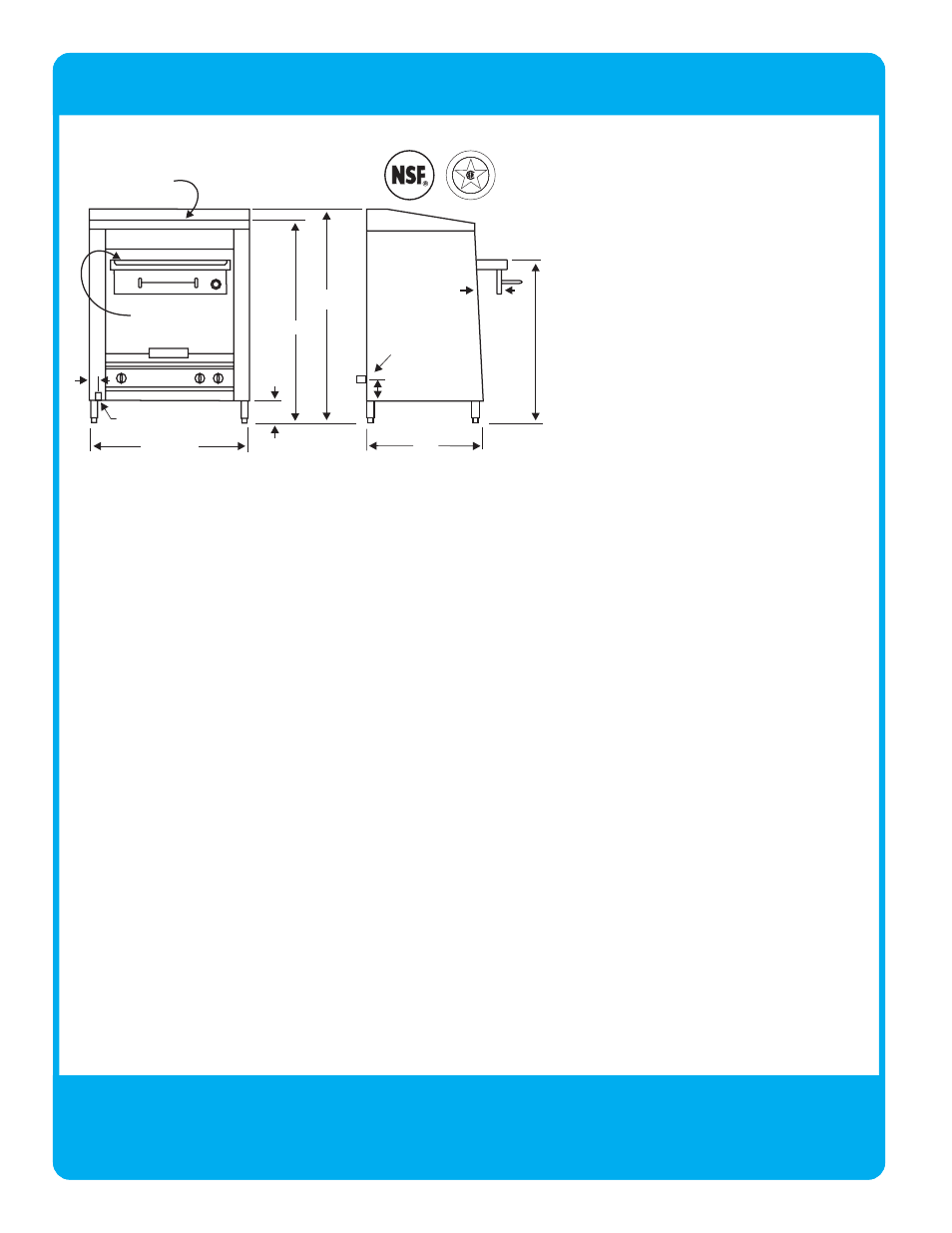

GAS INLET
2”
31 - 1/4”
4 1/2”
GAS
INLET
25”
48 7/8”
6”
42 3/8”
Top Fry Grid
Broiler Grid
13”max
30”
Overall Width: . . . . . . . . . . . 31 1/4”
Overall Depth (body): . . . . . 25”
Overall Height: . . . . . . . . . . 48 7/8”
Top Fry Grid Height: . . . . . . 42 3/8”
Broiler Grid Up: . . . . . . . . . . 30”
Broiler Grid Down: . . . . . . . 26”
Legs (S/S) : . . . . . . . . . . . . . 6”
Broiler Grid pulls out: . . . . . 13”
Broiler Grid:. . . . . . . . . . . . . 17 3/4” x 23 1/2”
Top Fry Grid: . . . . . . . . . . . . 20” x 31”
Gas Inlet: . . . . . . . . . . . . . . 3/4” pipe
Maximum BTU: . . . . . . . . . . 132,000
Crated Weight (approx): . . . 530 lbs.
