Connerton Model A-1F - Manual (Page 8)

16
1
2
55
5-L
5-R
3
3-A
21
5-A
5-A
6-L
6-R
8
24-C
53
13
12
14
25
46-B
22
22-A
11
23
17
18-L/R
1 Ceramic Radiant
4 Top Lighter Tube Orifice
10 Outer Track
11 Inner Track
2 Top Burner
3 Top Lighter Tube (R & L)
3-A Bracket For Lighter Tube
5-L Top Manifold (left)
5-R Top Manifold (right)
6-L Top Manifold Tubing (left)
6-R Top Manifold Tubing (right)
7 Top Lighter Tube Tubing
8 Orifice with Hood
17 Removable Back Liner
18-L Removable Side Liner (left)
18-R Removable Side Liner (right)
21 Flexible Gas Connector
22 Track Support
22-A Grease Deflector
23 Grease Pan
5-A Manifold Air Mixer 24-B Manual Valve (¼ mpt x ½ cc)
24-C Manual Valve (¼ mpt x ¼ mpt)
25 Chrome Valve Knob
46 Adjustable Foot Insert
46-B Pop-in Swivel Caster
9 Cabinet 46-C Stud Swivel Caster
53 Pilot Adjustment Valve
54 Burner Support Bar
12 Gas Pressure Regulator 55 Burner Support Channel
13 Primary Gas Manifold 57 Serial Number Plate
14 Front Control Panel
15 Top Griddle Plate
16 Removable Grease Chute

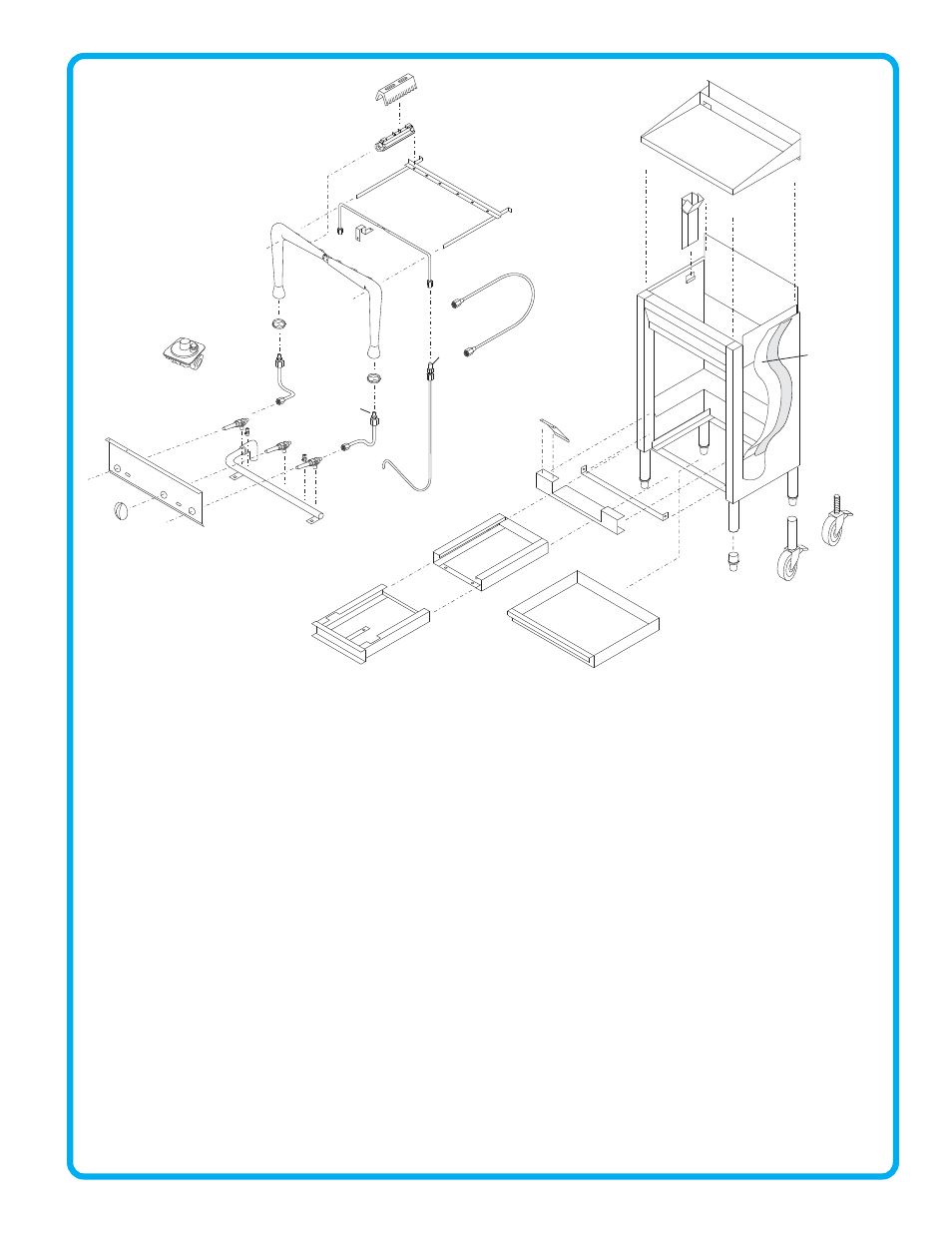

Model A1-F Parts List
24-B
24-B
46
4
7
9
15
54
46-C
10
