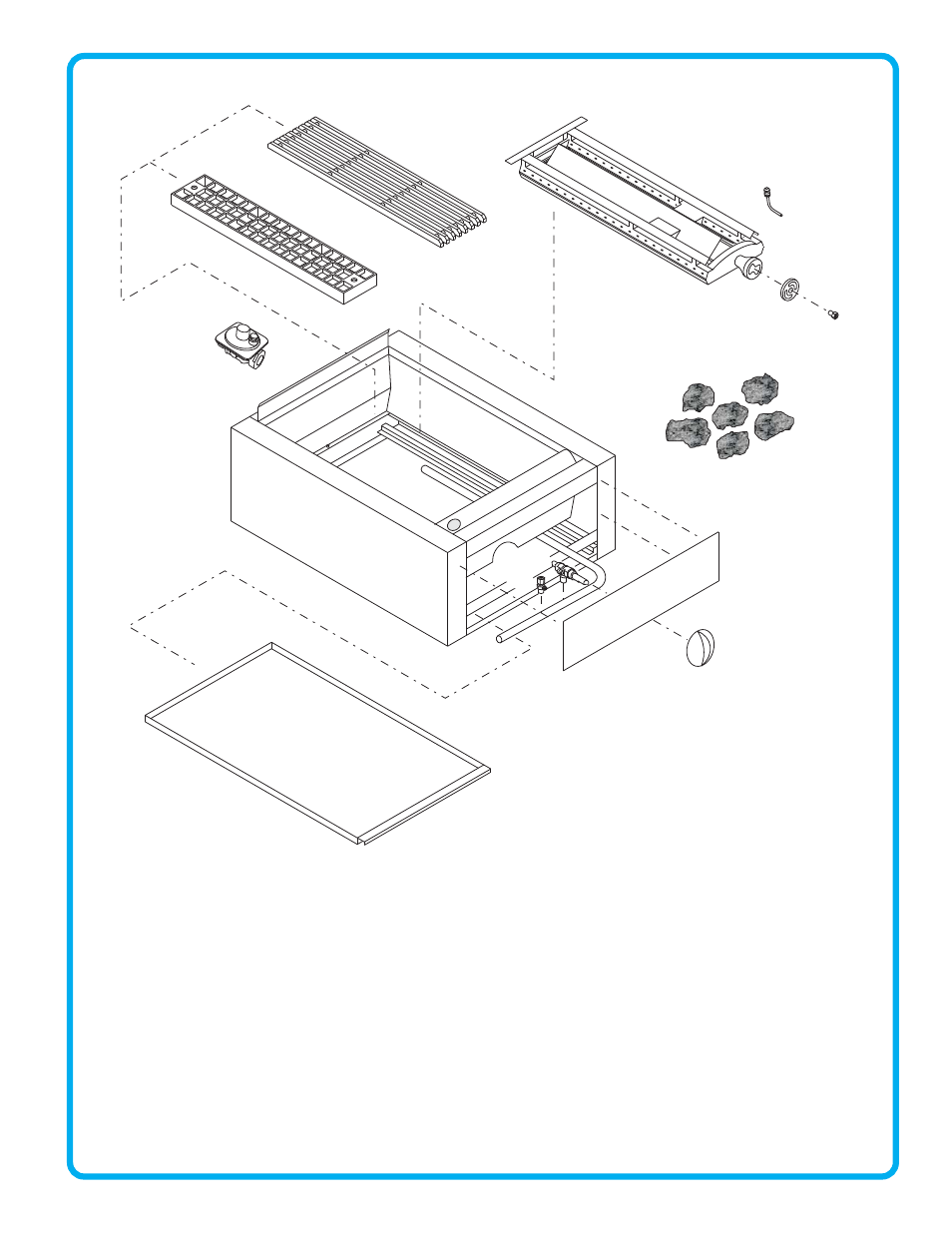

LRB LAVA ROCK BROILERS
1. 50-400-xx
Body
2. 50-425-xx
Front Panel
3. 50-450-xx
Grease Pan
4. 50-100-02
Waffle Grate
5. 50-100-01
Top Grate
6. 50-150-00
Burner
7. 00-575-00
Air Shutter
00-275-02
Regulator - Propane
50-200-02
Orifice Hood - Propane
9. 50-350-00
Pilot w/tubing
10. 50-300-xx
Gas Manifold
11. 00-225-00
Pilot Valve
12. 00-250-00
Manual Control Valve
13. 00-500-00
Chrome Knob
14. 00-275-01
Regulator - Natural
8. 50-200-01
Orifice Hood - Natural
15. 00-175-00
Lava Rock
*** For part numbers ending in xx, specify model size (ie: 50-400-42 for a LRB-42)
