Page 7
Use AB Glue
0
10
20
30
40
2

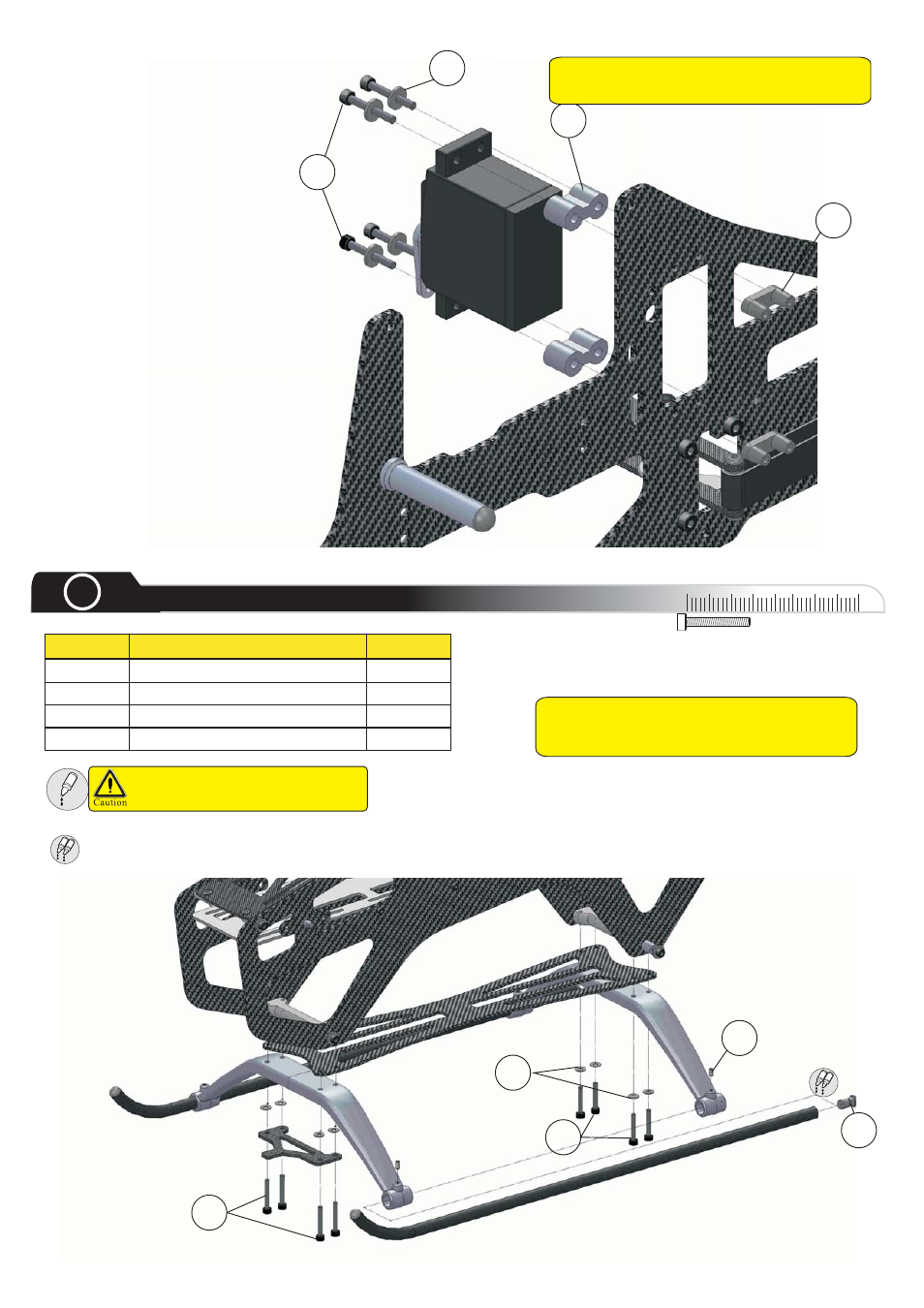

Landing Gear
A
B
Tip
:
Do not over tighten the four 3 x 5mm
set screws as it can damage the landing
struts.
A
B
1
1
2
3
4
Pos
Description
Qty
1
M3x20 Socket Head Bolt
8
2
3mm Washer
8
3
3x5mm Set Screw
4
4
Skid Caps
4
Tail Servo
Installation
6
7
Tip
:
Do not over tighten the four servo
screws as it may damage the plastic parts.
Use medium threadlock on all
screws going into metal parts
8
9
