Stereo Amplifier Configuration
WARNING: Please ensure that the power switch is turned OFF while you are connecting the
amplifier. Connecting or disconnecting cables while the amplifier is powered on could
cause damage to your speakers.
NOTE: Ensure that the mode switch located between the input jacks on the rear of the
amplifier is set to the stereo position for normal operation. Bridged operation is explained on
page 7.

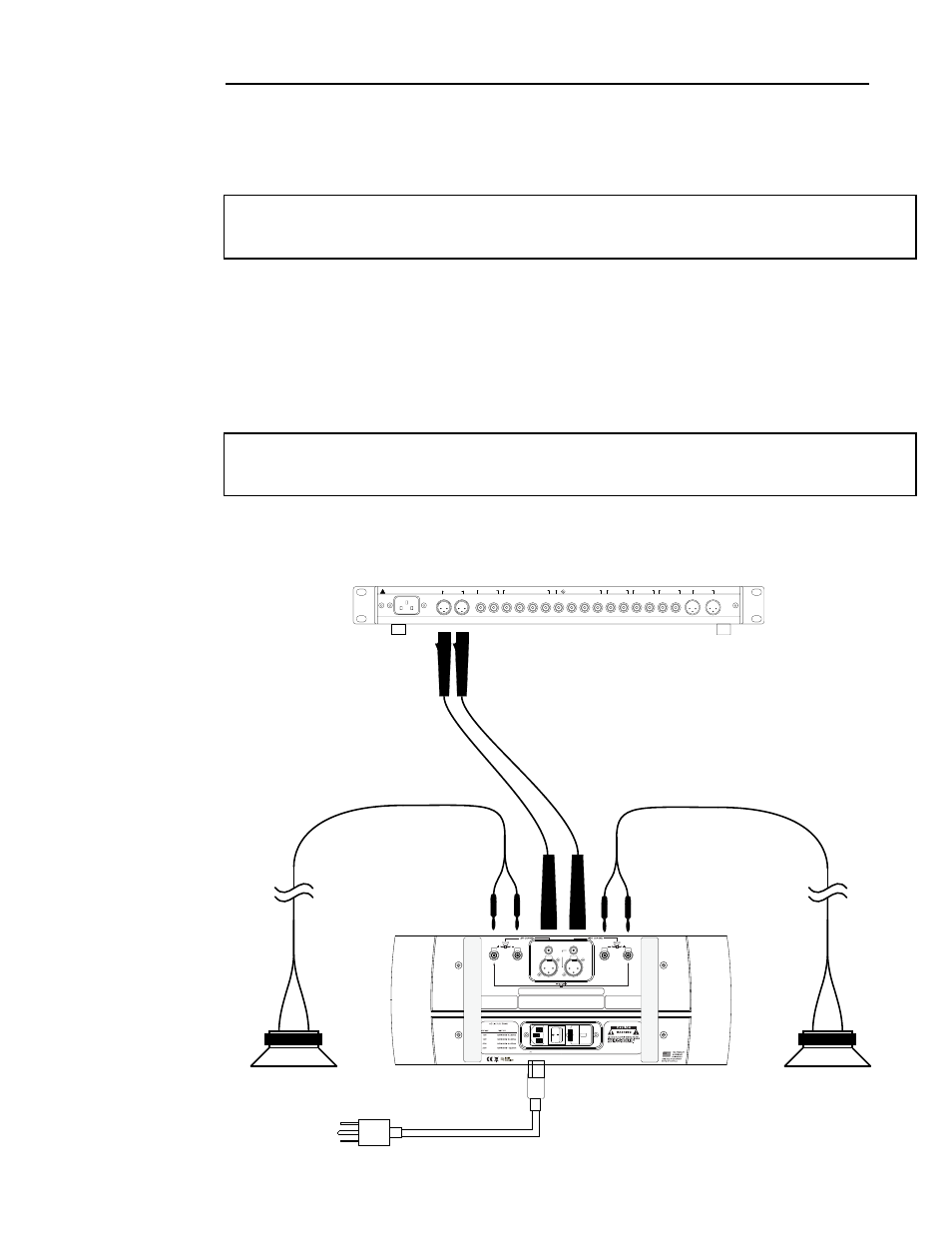

The diagram below shows the default connections necessary to operate the AMPLIFIER 15.0
as a stereo amplifier. This is the simplest and most common mode of operation, and the
quickest way to get started. Once these connections are made you can turn the power
switch on, enable the bias from the front panel and start listening to your amplifier.
For simplicity this diagram shows an audio configuration using balanced interconnects. This
is the default input mode of the amplifier. Unbalanced operation requires that you set the
appropriate input mode as detailed on page 5.
INITIAL SETUP 3
LEFT SPEAKER RIGHT SPEAKER
PREAMPLIFIER
AMPLIFIER 15.0
! FOR CONTINUED PROTECTION AGAINST SHOCK OR FIRE HAZARD,DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. AC LINE INPUT SEE SERIAL T AG FOR POWER REQUIREMENTS
~ UNBALANCED INPUT RIGHT LEFT COMPACT DISC RIGHT LEFT TUNER RIGHT LEFT VIDEO RIGHT LEFT MONITOR RIGHT LEFT RIGHT LEFT IN OUT PROCESSOR RIGHT LEFT RIGHT LEFT IN OUT VIDEO RIGHT LEFT UNBALANCED OUTPUT RIGHT LEFT
DO NOT CONNECT AMPLIFIER OUTPUT
TERMINALS TOGETHER. CONNECT AMPLIFIER OUTPUT TERMINALS ONLY TO
SPEAKERS.
FOR CONTINUED PROTECTION AGAINST
SHOCK OR FIRE:
REPLACE FUSE WITH SAME TYPE AND
RATING. DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE
SEE SERIAL TAG FOR POWER REQUIREMENTS. REMOVE POWER CORD BEFORE CHANGING FUSE OR LINE VOLTAGE.
AC LINE INPUT MAIN POWER FUSE / VOLTAGE SELECTOR
READ THE BRIDGING SECTION OF THE OPERATING MANUAL OR CONTACT YOUR CODA AUTHORIZED DEALER TO SET THE BRIDGING SWITCHES
BRIDGED MODE
16 AMP
16 AMP
8 AMP
8 AMP
UNBALANCED
BRIDGED INPUTS
INPUTS
BALANCED
BALANCED
INPUTS
UNBALANCED
PUSH PUSH
230
