8 IGLOO
INSTALLATION AND START-UP
1
3
5
4
5
4
1
2
6
1
2
6
3
1
2

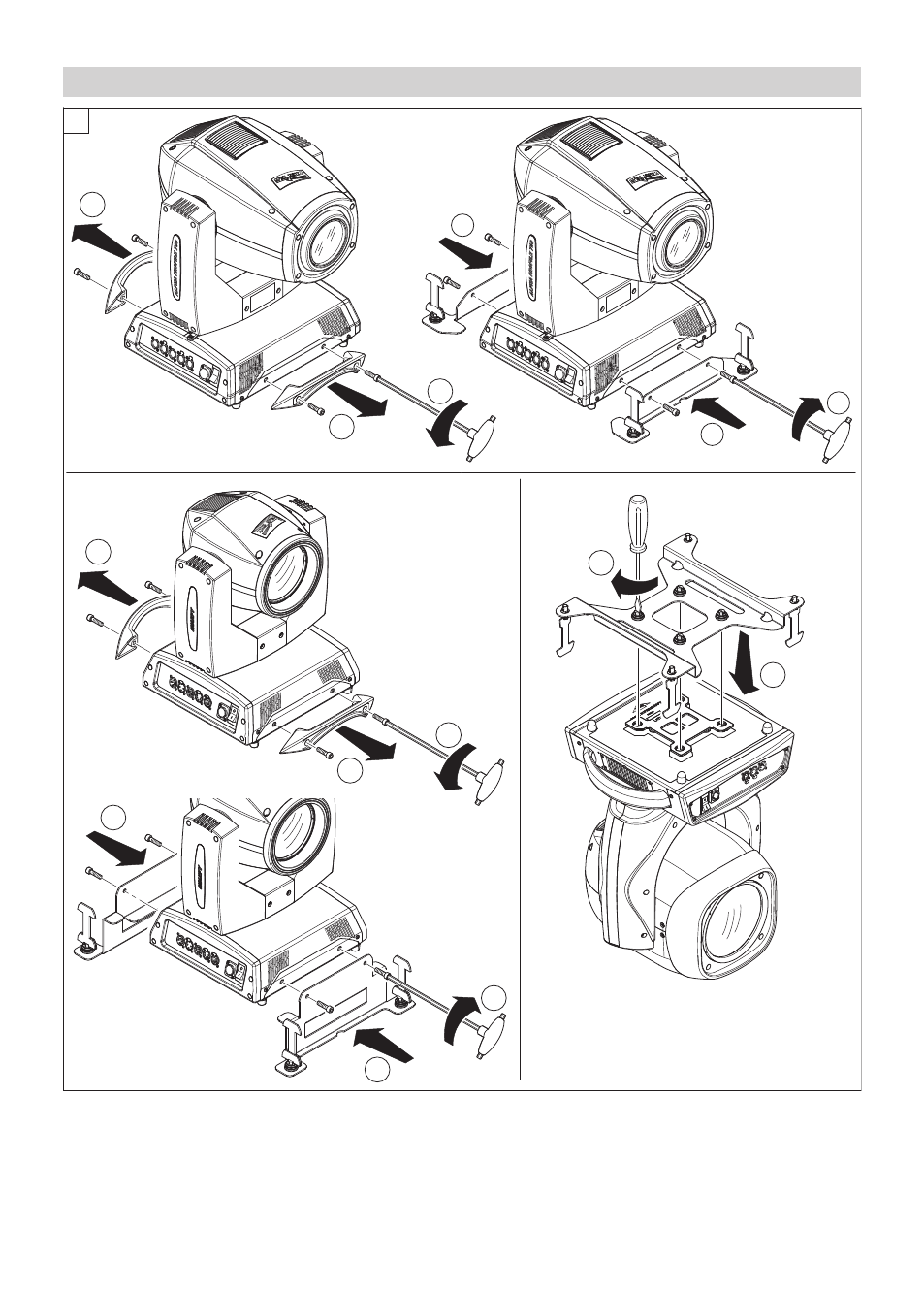

Mounting brackets for projector placement - Fig. 1
The dedicated brackets replacing the side handles should be mounted before inserting the projector in the IGLOO:
C61192 - fast fit bracket for ALPHA 300/700
C61191 - fast fit bracket for SHARPY and SHARPY WASH 330
C61183 - fast fit bracket for A.leda K10 line
C61184 - fast fit bracket for A.leda K20 line.
C61176 - quick fastening rod and connection extension for Mythos and Supersharpy
WARNING:
to avoid damaging the
projector, use the
screws supplied with
the bracket unit and
not the ones
previously removed.
