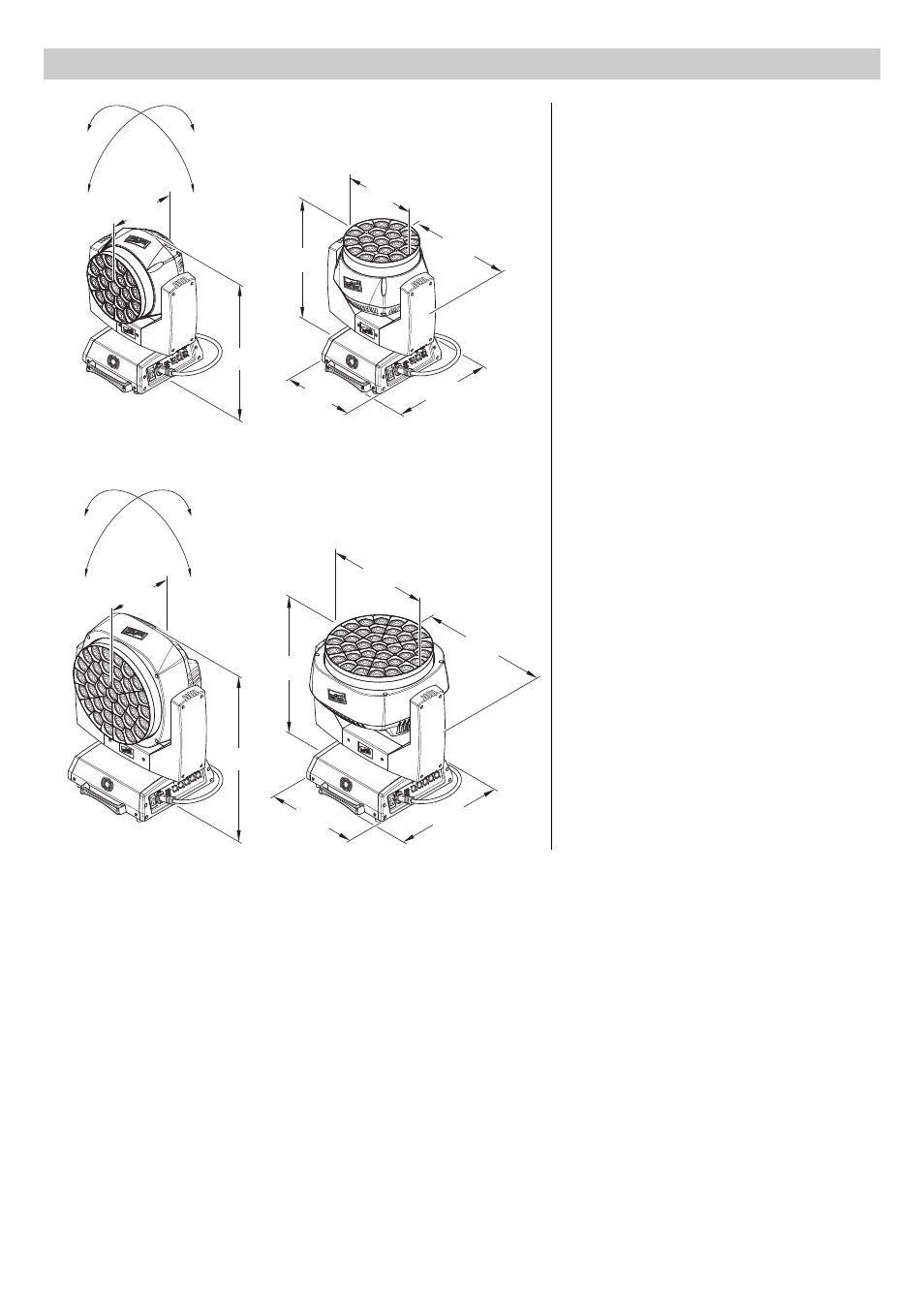

25 A.LEDA B-EYE CC
479
(18.86")
358
(14.09")
253
(9.96")
423
(16.65")
248
(9.76")
360
(14.17")
290
(11.42")
Zoom IN
340
(13.39")
Zoom OUT
180
(7.09")
Zoom IN
230
(9.06")
Zoom OUT
TECHNICAL INFORMATION
Power supplies available
100-240V 50/60Hz
Input power
• K10 CC - 350VA
• K20 CC - 550VA
LED source
Osram Ostar RGBW - 15W LED
Average LED life: 50.000 h
Motors
5 (k10), 6 (k20) stepper motors, operating with microsteps,
totally microprocessor controlled.
Cooling
• High efficiency die-cast aluminium
• Forced ventilation
Inputs
DMX 512
Working position
Working in any position.
Moving head
• Movement by means of two stepper motors, controlled
by microprocessor.
• Automatic repositioning of PAN and TILT after accidental
movement not controlled by control unit.
• Angle:
- PAN = 540°
- TILT = 210°
IP20 protection rating
• Protected against the entry of solid bodies larger than
12mm (0.47”).
• No protection against the entry of liquids.
CE Marking
Complies with the following European Directives
- 2006/95/EC (LVD)
- 2004/108/EC (EMC)
- 2011/65/EU (RoHS).
Weights
• B-EYE K10 CC: 14.5 kg (31.14 lbs)
• B-EYE K20 CC: 21 kg (46.3 lbs)
A.Leda B-EYE K10 CC
589
(23.19")
476
(18.74")
370
(14.57")
460
(18.11")
380
(14.96")
Zoom IN
430
(16.93")
Zoom OUT
200
(7.87")
Zoom IN
250
(9.84")
Zoom OUT
395
(15.55")
330
(12.99")
A.Leda B-EYE K20 CC
