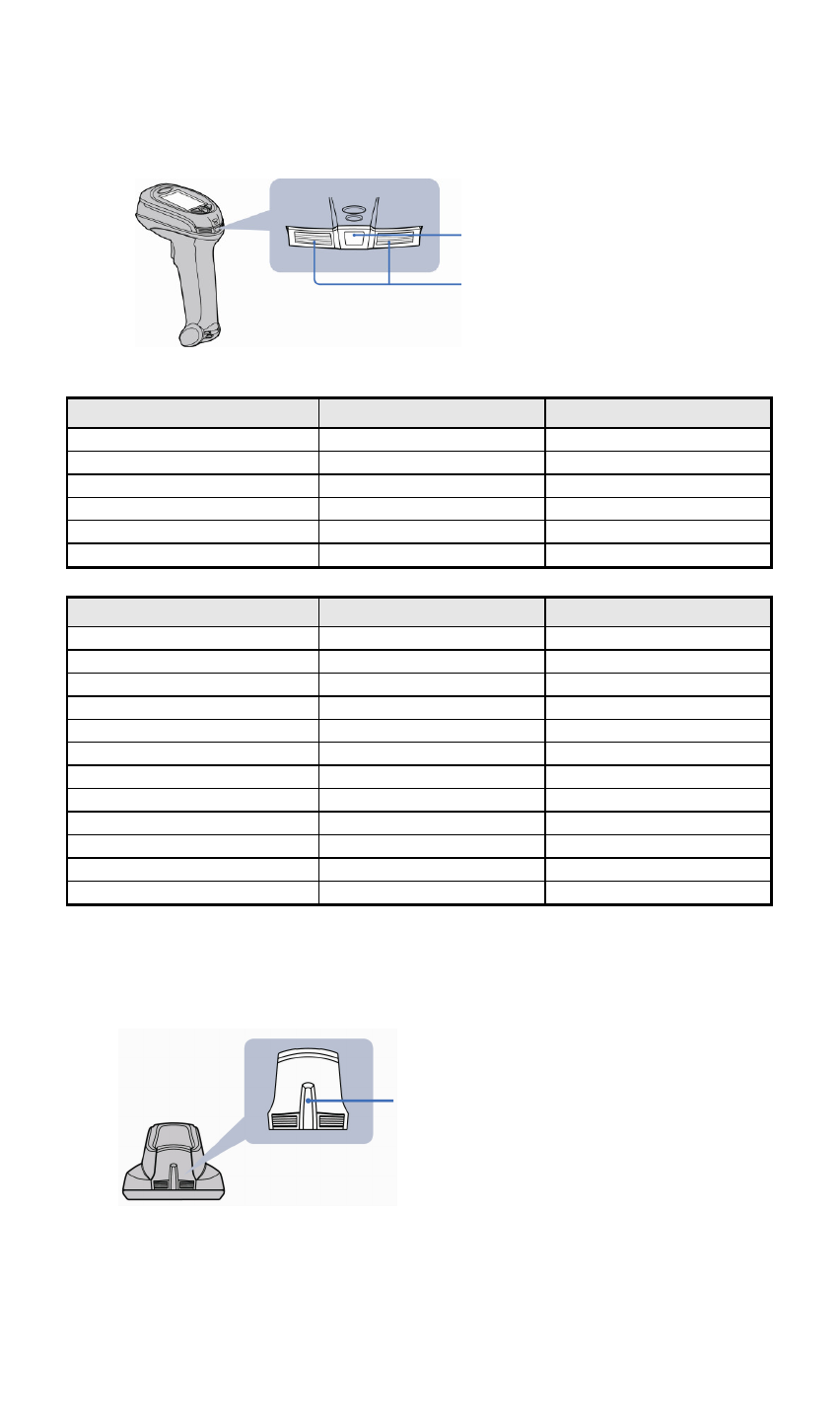

Indications
Descriptions
Link Indicator
Beeper
Radio connected
1 blue blink per 3.5 sec.
Off
Radio disconnected
3 blue blinks per 3.5 sec.
Off
During connection
Quick blue blinks
Short clicks
Radio connection built
1 blue blink per 3.5 sec.
4 beeps in ascending tone
Radio connection lost
3 blue blinks per 3.5 sec.
4 beeps in descending tone
Data Transmission
Quick blue blink
Short clicks
Descriptions
Status Indicator
Beeper
Under charging (on cradle)
Steady red
Off
Fully charged (on cradle)
1 green blink at regular interval
Off
Out of memory
2 red blinks
2 long beeps
Battery power low
1 red blink at regular interval (30sec) 1 beep at regular interval(30sec)
Battery power extremely low
8 red blinks
8 beeps
Good read
1 green blink
1 good read beep
Under Configuration
Steady red
Off
Upgrade state
Steady red
Short click
Sleep state / Battery no power
Off
Off
ACK Time-out Indication
Off
3 long beeps
Host ACK received
Off
1 beep
Error Beep
Off
1 long beep
HB2100 Charging Cradle
Center Indicator
Once you supplied the power to the cradle via
power supply unit or USB interface, the center
indicator will be steady blue.
Link Indicator
Status Indicator
