Dicota REPLICATOR 2 - Manual (Page 2)

2
english
Table of contents
Introduction ...................................................... 1
Driver installation .............................................. 2
Making sure installation was successful ................ 5
Removing drivers .............................................. 5
Introduction
Thanks for choosing the Replicator 2.0. It offers a sim-
ple, flexible and highly scalable connectivity solution
between the Notebook and any USB 1.0/1.1/2.0 com-
pliant devices. The Replicator 2.0 adds one 4-Ports
USB 2.0 HUB; 2 PS/2 ports; 1 RS232 port; 1 USB
2.0 LAN port, which supports 10/100 Mbps transfer
rate.
Of course the Replicator 2.0 can connect the latest
higher performance peripherals, such as high-resolu-
tion video conferencing cameras, scanners and prin-
ters. You can enjoy the Replicator 2.0 to extend your
USB 2.0 devices.
System requirements
• USB 2.0 host controller
• Windows 2000/XP
Package contents:
• 1 x USB 2.0 Replicator 2.0
• 1 x USB 2.0 A to B type cable (1800 mm)
• 1 x AC Power Adapter (DC 5 V/3 A)
• 1 x Driver CD
• 1 x User’s manual
LED indicator description:
• Good link status
– When the USB Replicator 2.0 is connected to the
PC or Notebook, all of the LED indicators will turn
on. (Note: The Ethernet Linked to the Network or
Internet)
• Power LED indicator
– When just the power adapter is plugged into the
Replicator 2.0, the POWER LED indicator and
PS/2 LED will turn on.
• Ethernet LED indicator
– When the Ethernet works correctly, the LED indi-
cator will turn on the red LED.
– When the Ethernet work under 100 Mbps Net-
work, the LED indicator will turn on the red and
green LED at the same time.
Notes
• For the Replicator 2.0 working under stable environ-
ment, please be sure to use the power adaptor.
• When the USB 2.0 HUB ports become overloaded,
please refresh or re-plug the Replicator 2.0 into the
Notebook to active the ports.
Driver installation
• Windows 2000/XP
Step 1:
• Insert the Driver CD into the CD-ROM drive.
• Double click the “USBPR2.0_4.00.exe” program of
Driver CD to install.

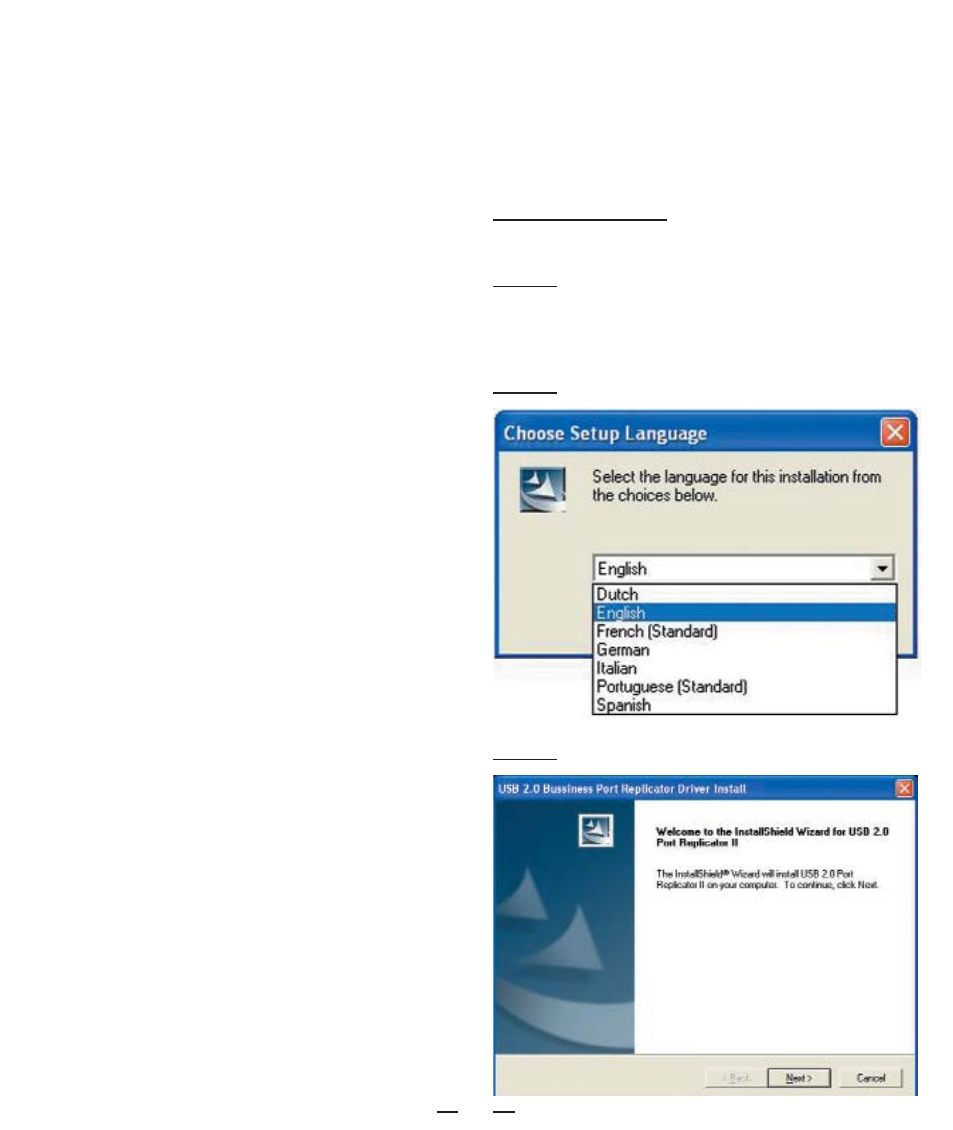

Step 2: Select the language to continue.
Step 3: Click “Next” to continue.
