Technologies inc, Typical wiring diagrams, Please visit our website for other products – AZEL i-Link SERIES ZONE VALVE CONTROLS FOR HYDRONIC / RADIANT FLOOR HEATING SYSTEMS User Manual

Page 3: Set dip switch jumper3&4 to on, Zone 1 n l 120 vac, Wiring for prioritizing dhw circulator

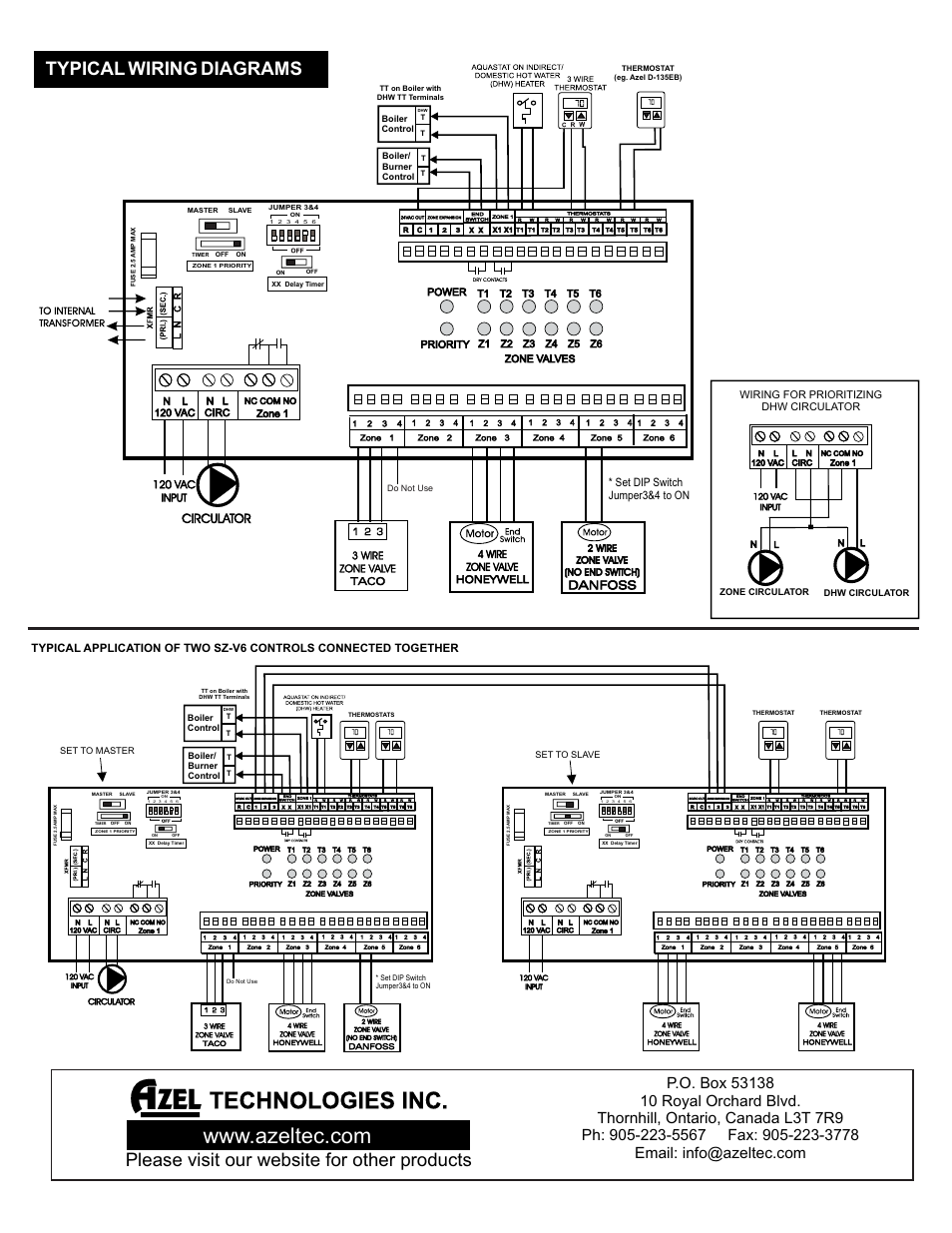

Technologies inc, Typical wiring diagrams, Please visit our website for other products | Set dip switch jumper3&4 to on, Zone 1 n l 120 vac, Wiring for prioritizing dhw circulator | AZEL i-Link SERIES ZONE VALVE CONTROLS FOR HYDRONIC / RADIANT FLOOR HEATING SYSTEMS User Manual | Page 3 / 3 Technologies inc, Typical wiring diagrams, Please visit our website for other products | Set dip switch jumper3&4 to on, Zone 1 n l 120 vac, Wiring for prioritizing dhw circulator | AZEL i-Link SERIES ZONE VALVE CONTROLS FOR HYDRONIC / RADIANT FLOOR HEATING SYSTEMS User Manual | Page 3 / 3
