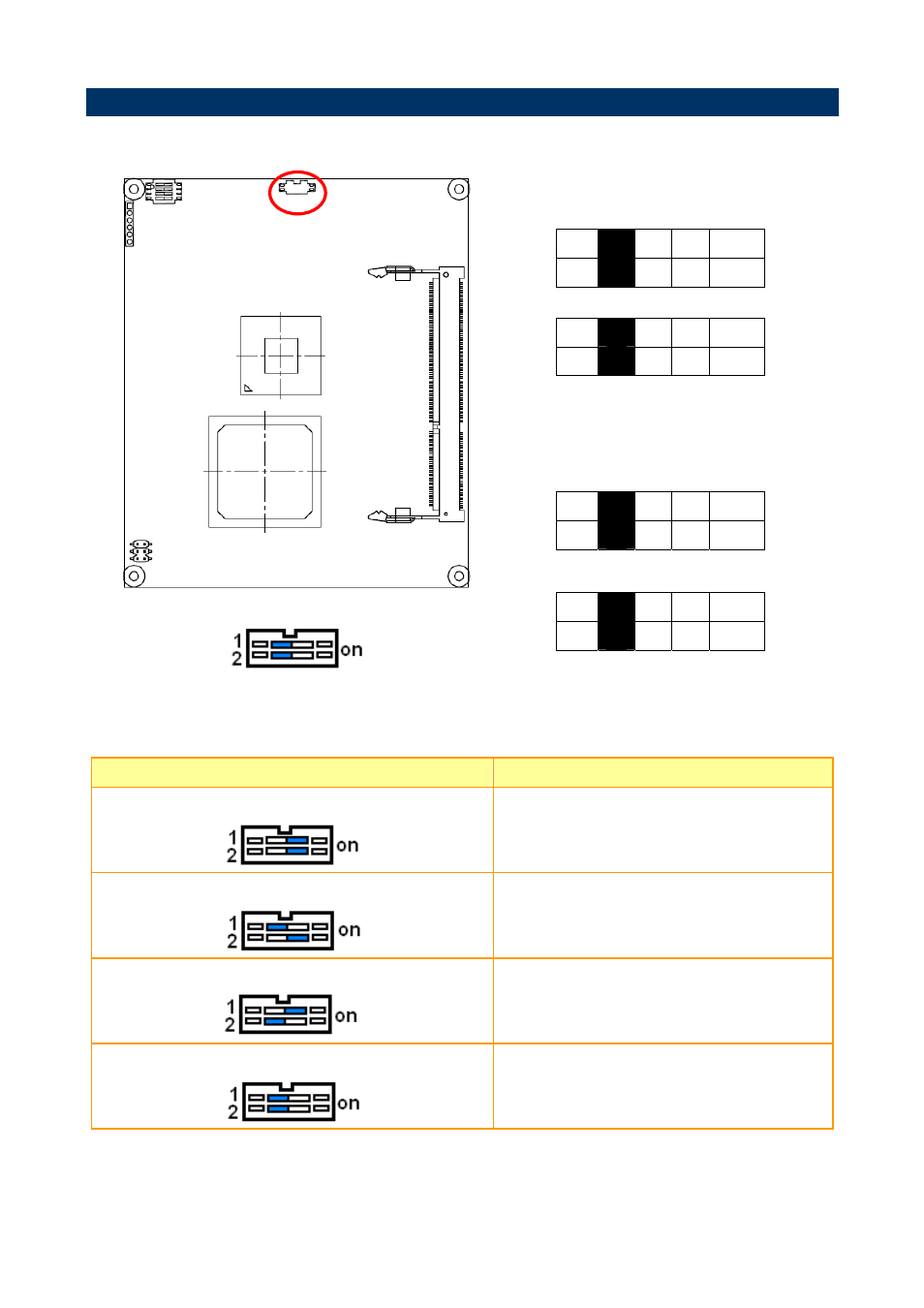

2.3 Setting Jumpers & Connectors
2.3.1 AT/ATX mode/ AT/ATX power selection (SW1)
*Default
AT/ATX Power
AT power
ATX power*
OFF 1 ON
2
>
OFF 1 ON
2
=
AT/ATX mode
AT mode
ATX mode*
OFF 1
>
ON
2
OFF 1
=
ON
2
2.3.1.1 Signal Description –AT/ATX mode/ AT/ATX power selection
AT/ATX power / AT/ATX mode Description
AT mode/ AT power
Use AT power input, and set the board in AT
mode.
AT mode/ ATX power
Use ATX power input, and set the board in AT
mode.
ATX mode/ AT power
Use AT power input, and set the board in ATX
mode.
ATX mode/ ATX power
Use ATX power input, and set the board in ATX
mode.
