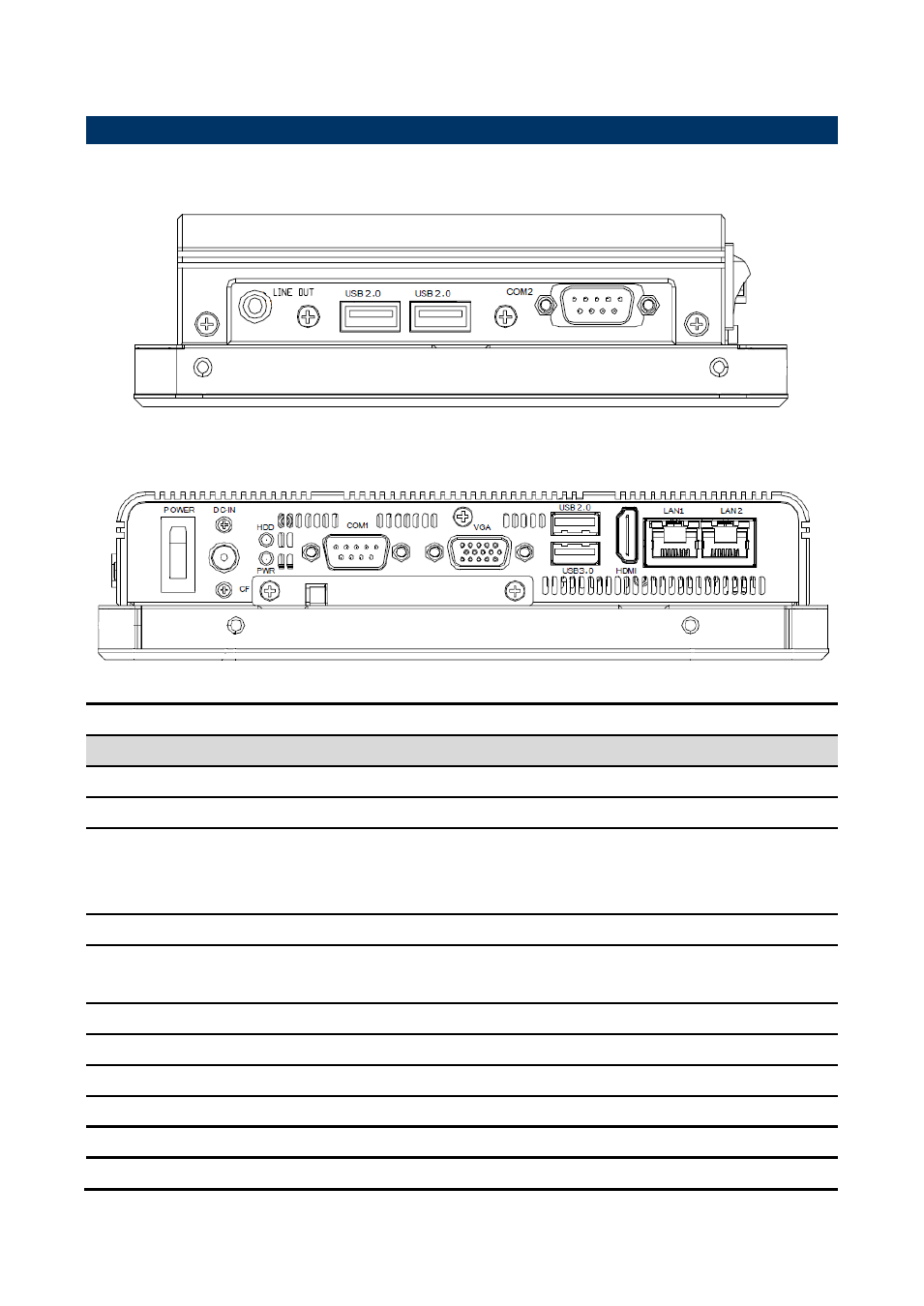

1.4 System Overview
1.4.1 Bottom View
1.4.2 Right View
Connectors
Label Function Note
POWER Power on button
CF CF Type I/II Socket with Ejector
COM1/2 Serial port 1/2 connector
DB-9 male connector
Note：COM1 support
RS422/485 by BIOS setting
LINE OUT Line-out audio jack
USB
USB 3.0 connector x 1
USB 2.0 connector x 3
LAN RJ-45 Ethernet connector x 2
HDMI HDMI connector
HDD HDD indicator
PWR System power indicator
VGA VGA connector
DC-IN DC Power-in connector
