1.4 System Overview

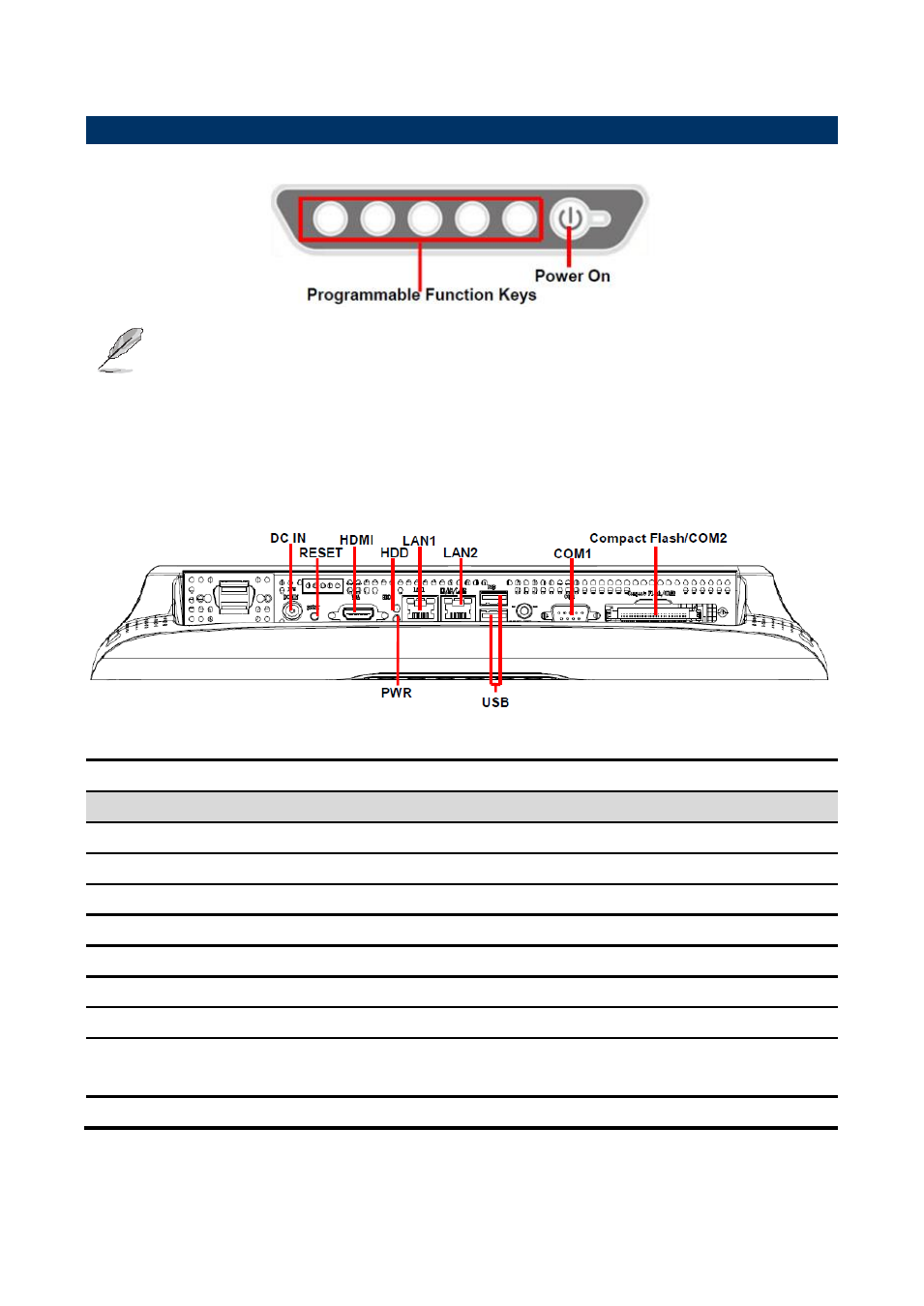

1.4.1 Front View
Note: The programmable function keys are available to be programmed by the
user, and they are unable to work unless programmed.
1.4.2 Rear View
Connectors
Label Function Note
COM1 External Serial port 1 connector DB-9 male connector
Compact Flash/COM2 CF Type I/II Socket with Ejector
DC IN DC Power-in connector
HDD HDD LED
LAN1/2 RJ-45 Ethernet connector 1/2
PWR Power LED
RESET Reset button
USB
4 x USB 2.0 connector
(2 x USB For Optional)
HDMI HDMI connector
