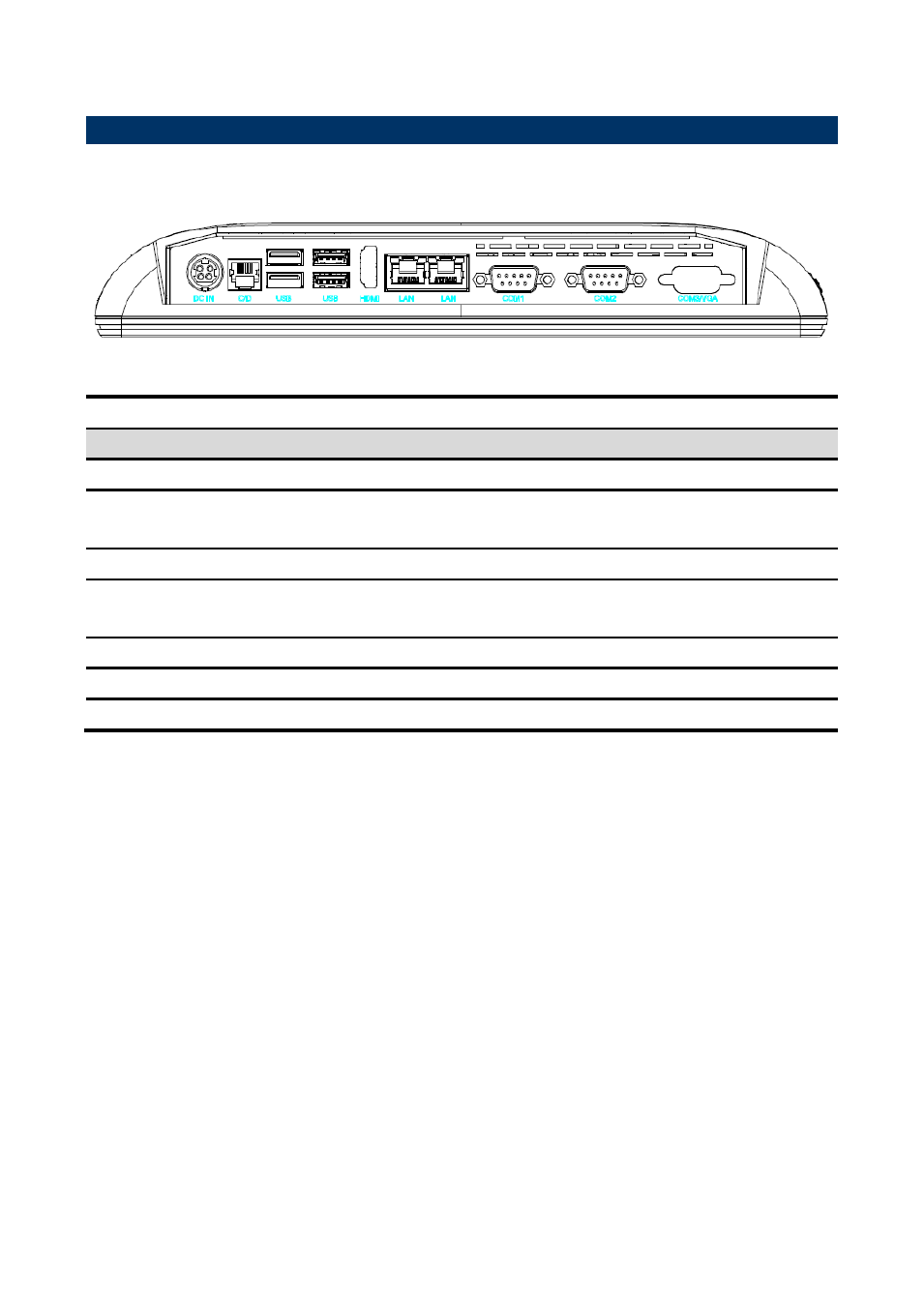

1.4 System Overview

1.4.1

Rear View

Connectors

Label

Function

Note

COM1/2

External Serial Port 1/2 connector

DB-9 male connector

COM3/VGA

External Serial Port 3 connector/ VGA

connector

C/D

Cash Drawer connector

USB

3 x USB 3.0 connector

1 x USB 2.0 connector

LAN

2 x RJ-45 Ethernet connector

HDMI

HDMI connector

DC-IN

DC Power-in connector
