Quick Reference Guide
ERS-BYT Quick Reference Guide 11

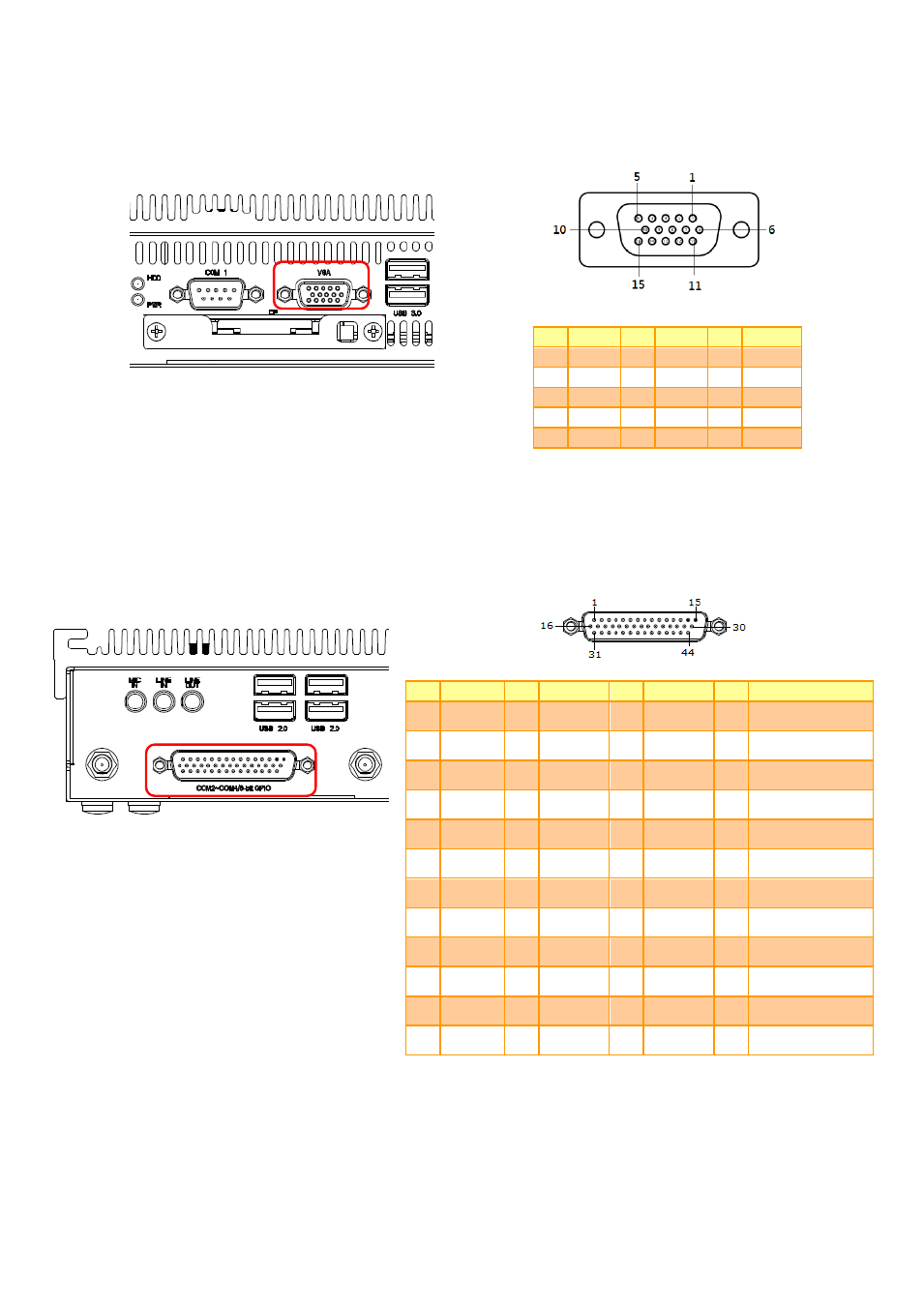

2.1.2 VGA connector (VGA)
PIN Signal PIN Signal PIN Signal
1 R 6 GND 11 NC
2 G 7 GND 12 DATA
3 B 8 GND 13 HSYNC
4 NC 9 +5V 14 VSYNC
5 GND 10 GND 15 CLK
2.1.3 Multi-Function Port combined COM2, COM3, COM4 and 8-bit GPIO
(COM2~COM4/8bit GPIO)
PIN Signal PIN Signal PIN Signal PIN Signal
1 DCD#_2 10 DCD#_3 19 DCD#_4 28 DIO_GP20
2 RXD_2 11 RXD_3 20 RXD_4 29 DIO_GP10
3 TXD_2 12 TXD_3 21 TXD_4 30 DIO_GP21
4 DTR#_2 13 DTR#_3 22 DTR#_4 31 DIO_GP11
5 GND 14 GND 23 GND 32 DIO_GP22
6 DSR#_2 15 DSR#_3 24 DSR#_4 33 DIO_GP12
7 RTS#_2 16 RTS#_3 25 RTS#_4 34 DIO_GP23
8 CTS#_2 17 CTS#_3 26 CTS#_4 35 DIO_GP13
9 RI#_2 18 RI#_3 27 RI#_4 36 SMB_CLK_9555
37 SMB_DATA_9555
38 GND
39 +5V
