SENX-KA User’s Manual
SENX-KA User’s Manual 17

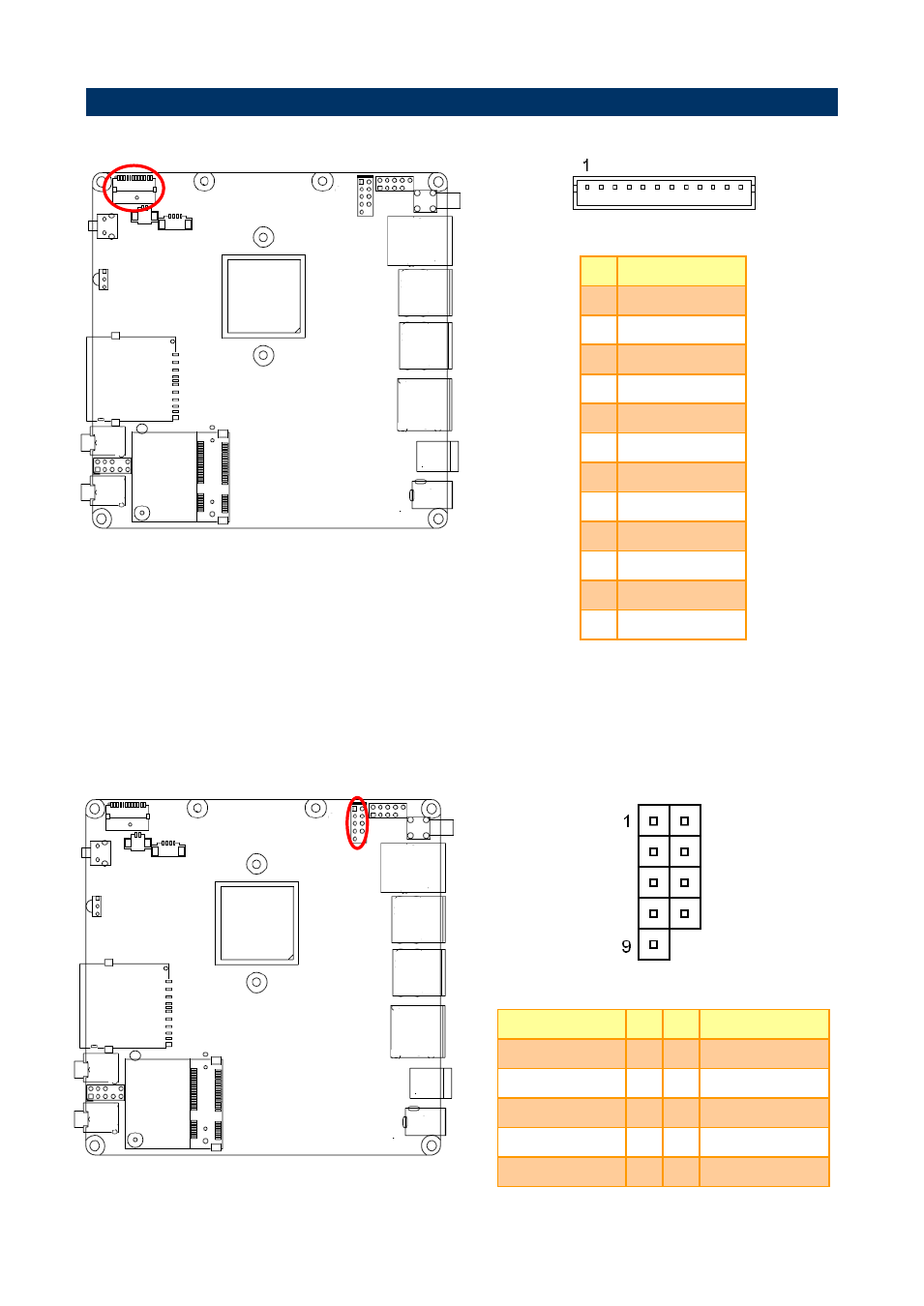

2.4 Setting Jumpers & Connectors
2.4.1 Serial port connector (JCOM)
Note:
COM port without power.
1 x 1 x 12 pin, pitch 1.0mm connector for COM port.
PIN Signal
1 GND
2 NDCDA
3 NSINA
4 NSOUTA
5 NDTRA
6 GND
7 NDSRA
8 NRTSA
9 NCTSA
10 NRIA
11 GND
12 GND
2.4.2 Front Panel connector (FPANEL1)
Signal PIN PIN Signal
+5V
1 2
+5V
HDD_LED
3 4
GND
GND
5 6
PWR_BTN_L
RESET_BTN_R 7
8
GND
GND
9
