EMX-CDD User’s Manual
EMX-CDD User’s Manual 19

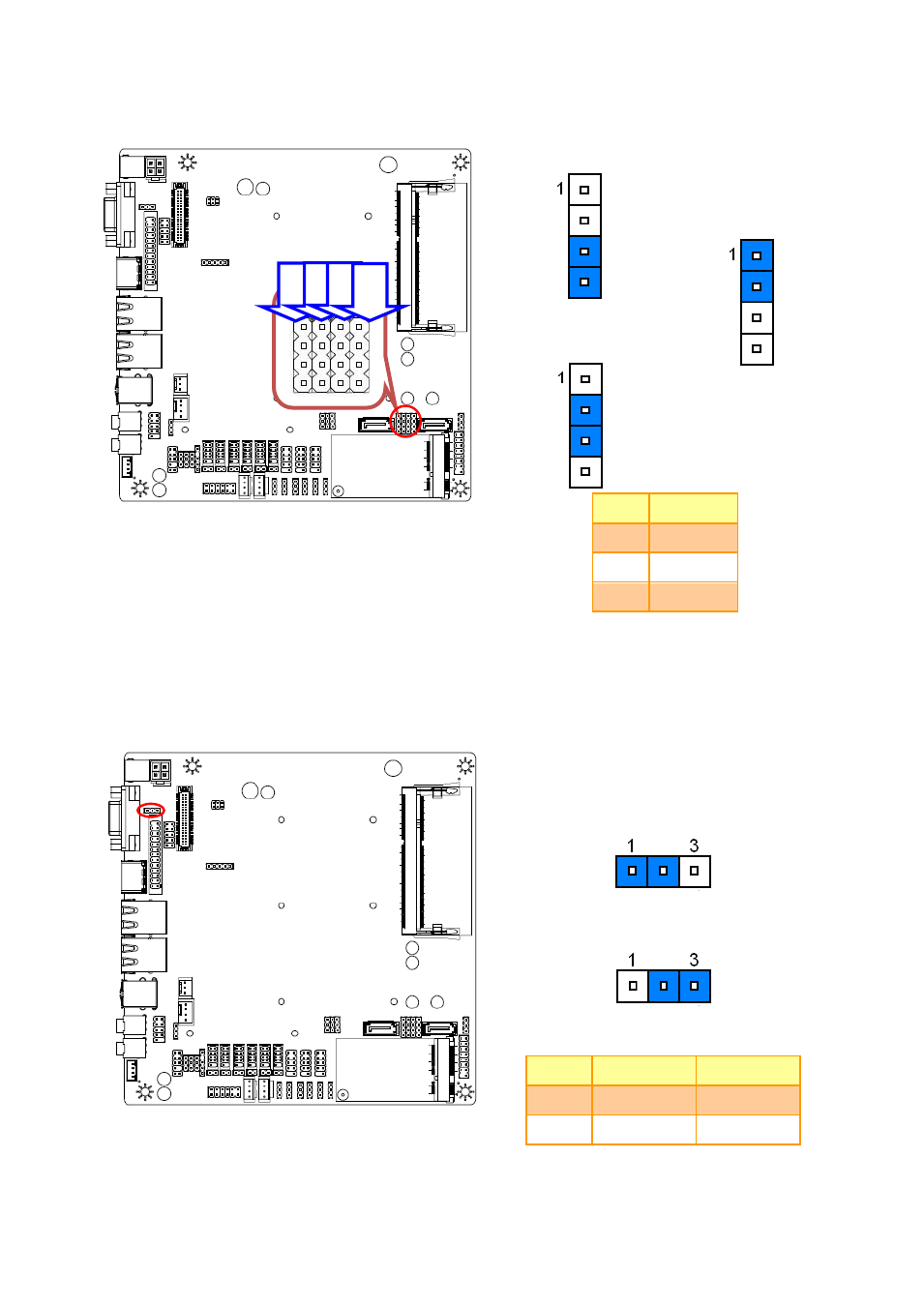

2.4.5 Jumper for MPCIE_WIFI_SATA (JP1~4)
* Default
Note: SATA 2 bond together with M-SATA, it can only
work either way at one time.
SATA2*
M-SATA
MINIPCIE
PIN Define
1-2 MINIPCIE
2-3 M-SATA
3-4 SATA2
2.4.6 Jumper for LVDS power (LVDS_PWR1)
* Default
5V*
3.3V
Pin Define Max current
1-2 5V 1A
2-3 3.3V 1A
JP
1 JP
2 JP
3 JP
4
