EMX-H61B Quick Installation Guide

14 EMX-H61B Quick Installation Guide

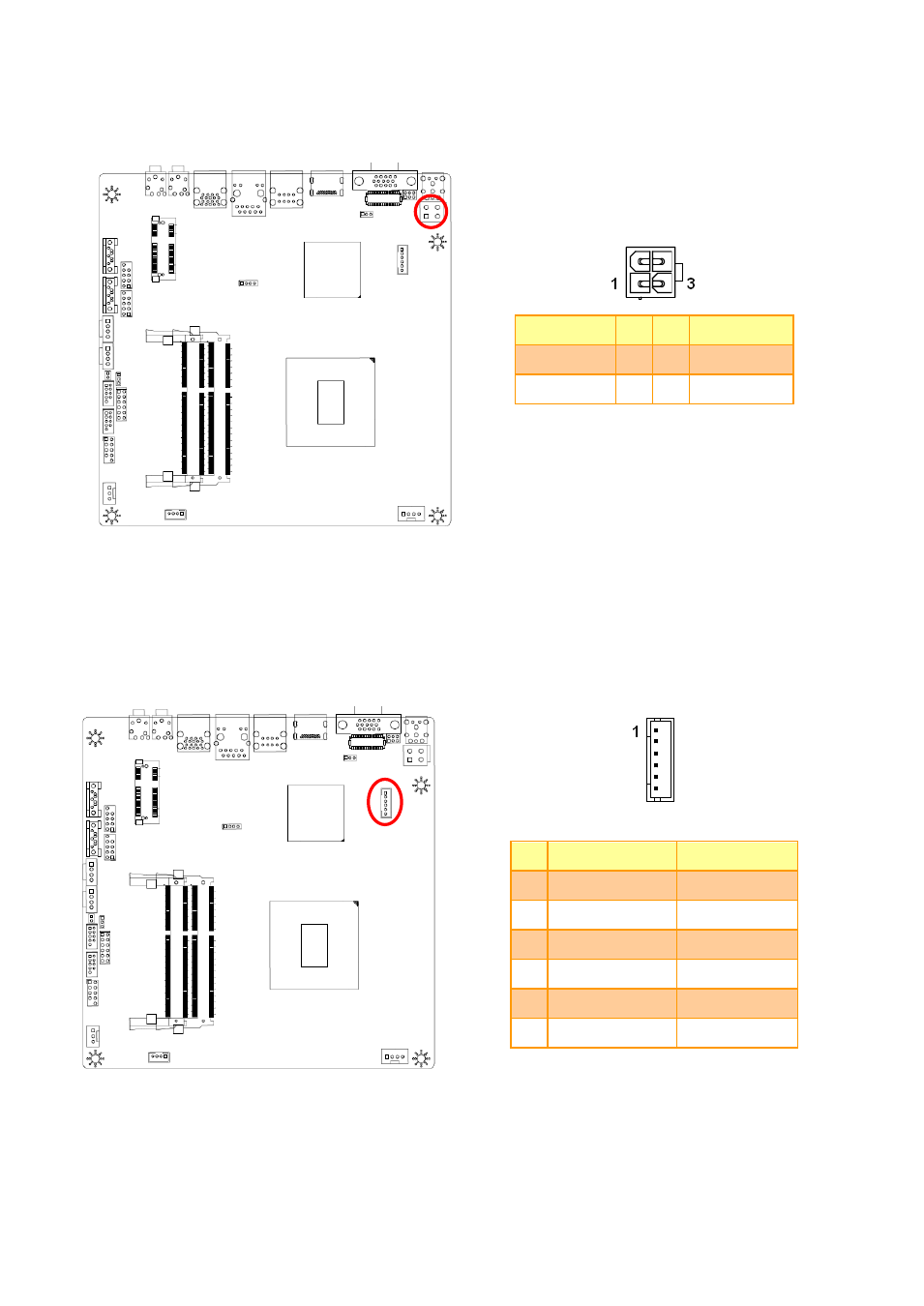

2.3.13 DC power-in connector (JDCIN)

Signal

PIN PIN

Signal

GND

2

4

+12~19V

GND

1

3

+12~19V

Note:

Suggest bundle with 19V power adapter.

2.3.14 Inverter connector (Inverter)

PIN

Signal

Max current

1

+12V

1A

2

+12V

1A

3

BLK_ON

4

Brightness

5

GND

6

GND

Note:

Mapping connector PHR6.
