EMX-PNVB User ’s Manual
20 EMX-PNVB User’s Manual

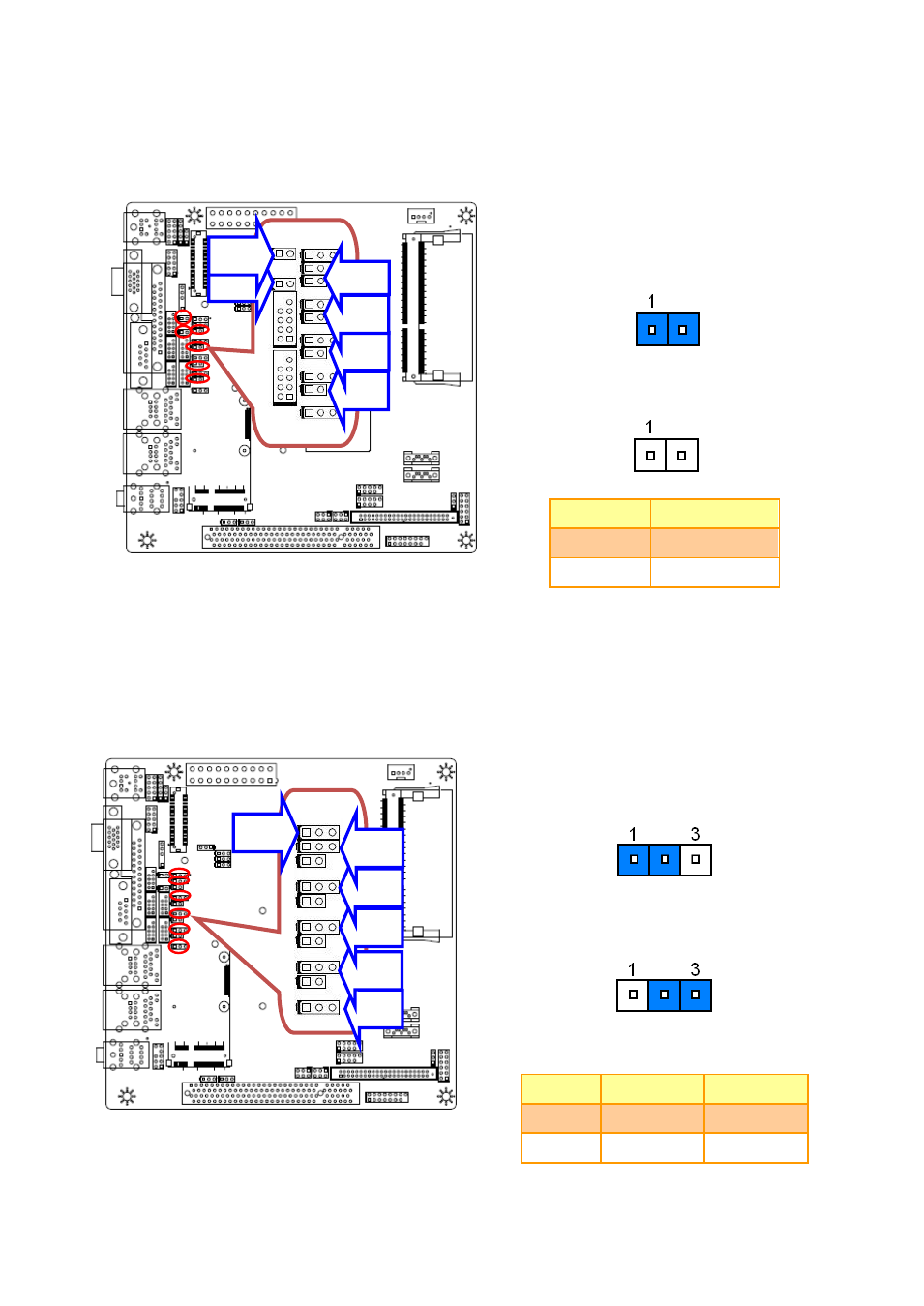

2.4.7 Serial port 1~6 or RI, USE JC11/21/31/41/51/61 PIN 9 selector
(JC12/22/32/42/52/62)
* Default
RI*
USE JC11_JC61
PIN Option Define
CLOSE RI
OPEN USE JC11_JC61
2.4.8 Jumper for Serial port 1~6 pin9 power selection (JC11/21/31/41/51/61)
+5V
+12V
PIN Define Max current
1-2 +5V 1A
2-3 +12V 1A
JC12
JC32
JC22
JC62
JC52
JC42
JC11
JC61
JC51
JC41
JC31
JC21
