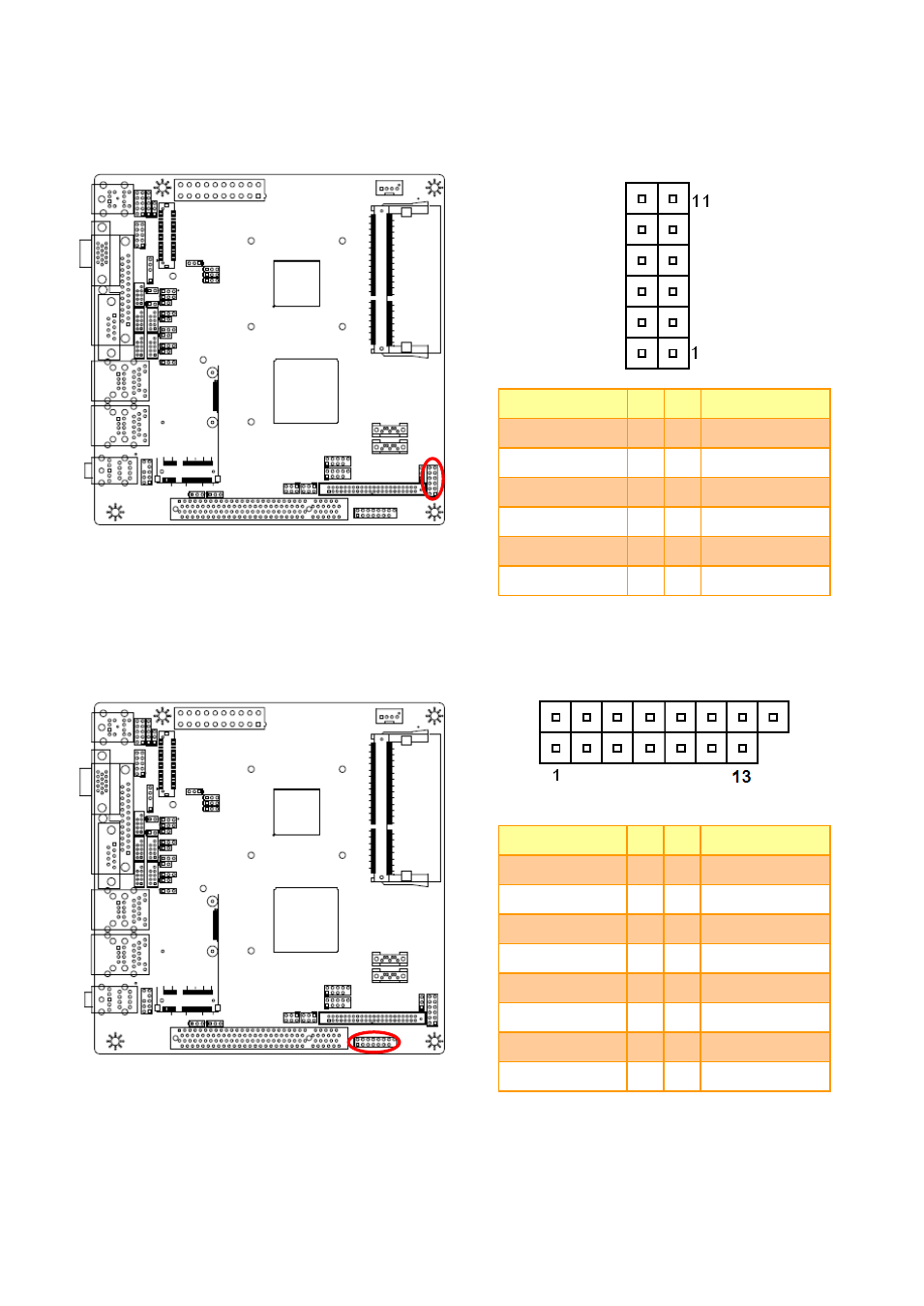

2.3.9 General Purpose I/O (JGPIO1)
Signal PIN PIN Signal
GND 12 11 GND
GPIO 10 9 GPIO
GPIO 8 7 GPIO
GPIO 6 5 GPIO
GPIO 4 3 GPIO
+12V 2 1 +5V
2.3.10 Front Panel Switches (FPANEL1)
Signal PIN PIN Signal
5VSB
1 2
+HD_LED
+P_LED
3 4
-HD_LED
-P_LED
5 6
PS_ON
+SPEAK
7 8
-PS_ON
NC
9 10
RESET
NC
11 12
-RESET
-SPEAK
13 14
+SLPLED
16
-SLPLED
