SEMX-H81 User

’s Manual

20 SEMX-H81

User’s Manual

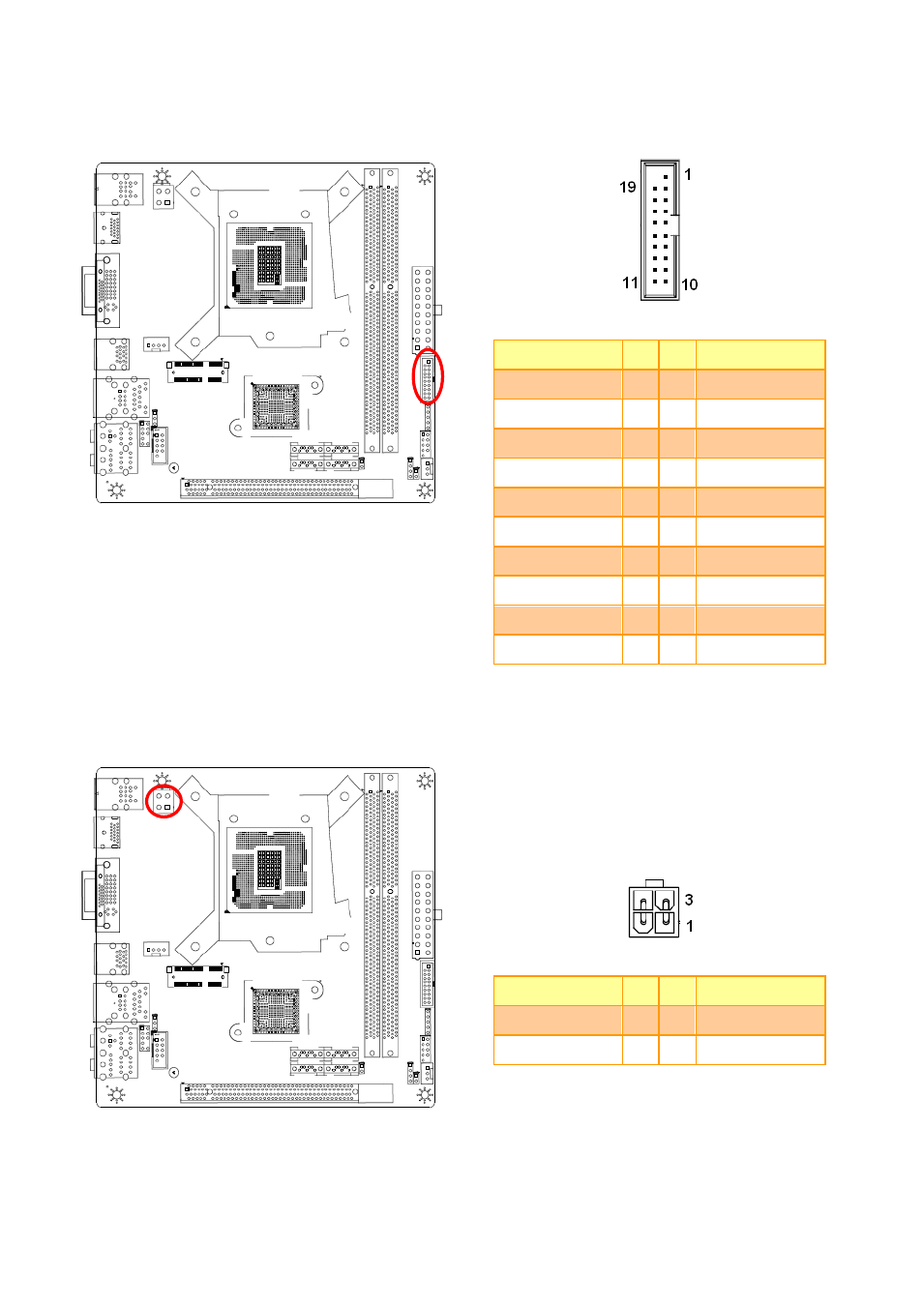

2.4.7 USB Port Headers

– USB3.0 (F_USB3.0)

Signal

PIN PIN

Signal

1

VCC

VCC

19

2

SSRX-

SSRX-

18

3

SSRX+

SSRX+

17

4

GND

GND

16

5

SSTX-

SSTX-

15

6

SSTX+

SSTX+

14

7

GND

GND

13

8

D-

D-

12

9

D+

D+

11

10

ID

2.4.8 ATX +12V Power connector (PWR12V)

Signal

PIN PIN

Signal

+12V

4

3

+12V

GND

2

1

GND
