Dukane 8935 - Manual (Page 6)

4

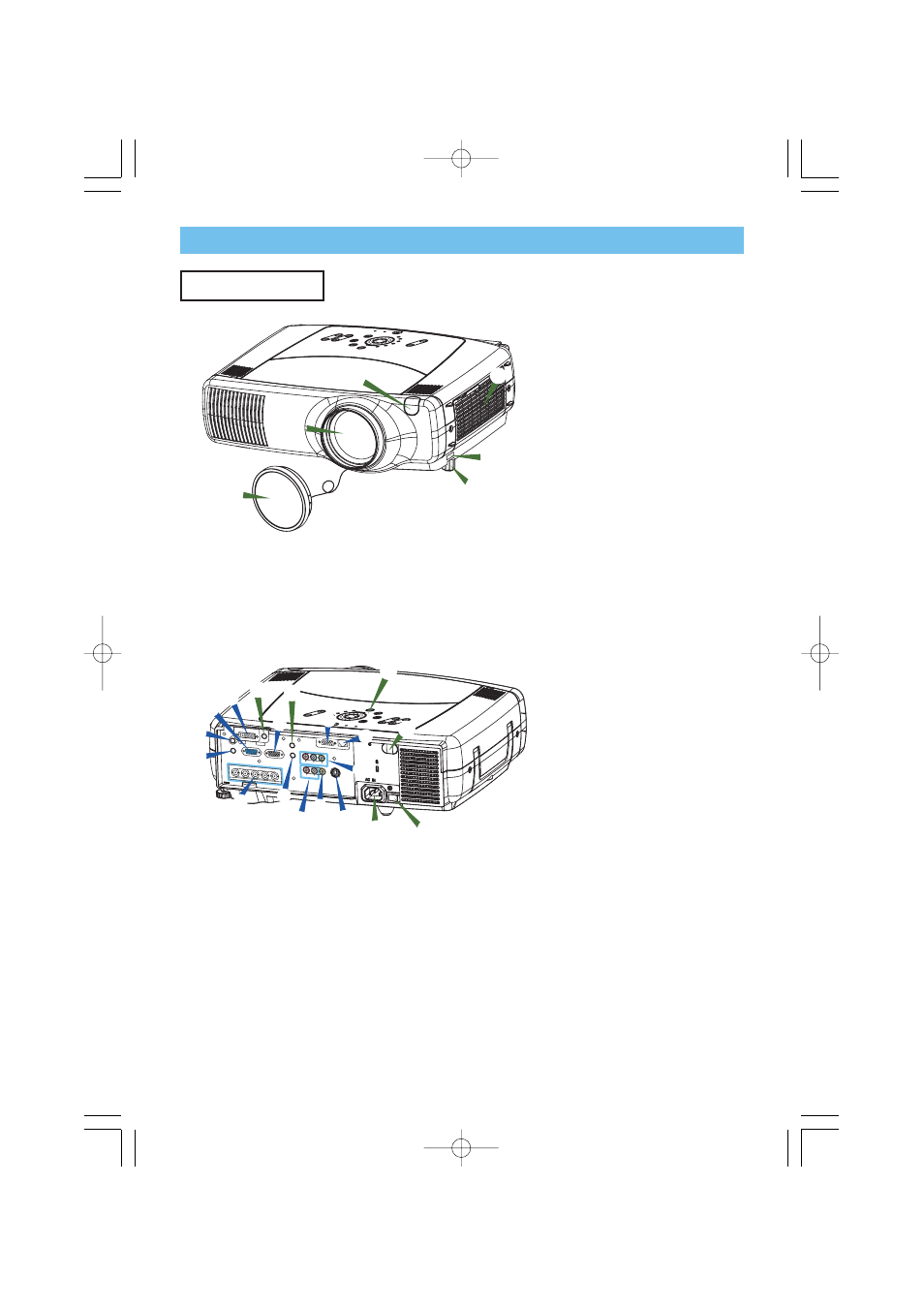

Part Names Part Names
Projector
1 Elevator button
2 Elevator foot
3 Remote sensor
4 Lens cap
5 Lens
The picture is projected from
here.
6 Filter cover
An air filter is inside.
A RGB port
B M1-D port
C BNC port
D AUDIO IN 1 port
E AUDIO IN 2 port
F CONTROL port
G NETWORK port
H AUDIO IN R/L port
I VIDEO IN port
J S-VIDEO port
K COMPONENT port
L RGB OUT port
M AUDIO OUT port
7 REMOTE CONTROL port
8 DC OUT port
9 AC Inlet
0 Power switch
- Control buttons
See the following page.
Projector (Front/Right)
Projector (Rear/Left)
INTER
IN PUT M1-D RGB BNG
S-VIDE O
ST A NDBY/ON
TEMP
VIDEO
COMPON ENT
LAMP
KEYS TON E SEARCH
RE SET
MENU
FOCUS
LE NS SH IFT
ZO OM
1
2
3
5
4
6
INTER
INPUT M1-D RGB BNG
S-VIDEO
STANDBY/ON
TEMP
VIDEO
COMPONENT
LAMP
KEYSTONE
SEARCH
RESET
MENU FOCUS
LENS SHIF T
ZOOM
VIDEO R-AUDIO IN-L S-VIDEO BNC
RGB
AUDIO IN1
AUDIO IN2
RGB OUT AUDIO OUT
REMOTE CONTR OL
R/C R /P R G/Y B/C B /P B H V
Y
CONTROL NETWORK
CR/PR Ca/Pa
7 8
-
L
F
A
D
E
C
M
H
I
J
K
G
3
0 9
B
