Quick Installation Guide

Quick Installation Guide

11

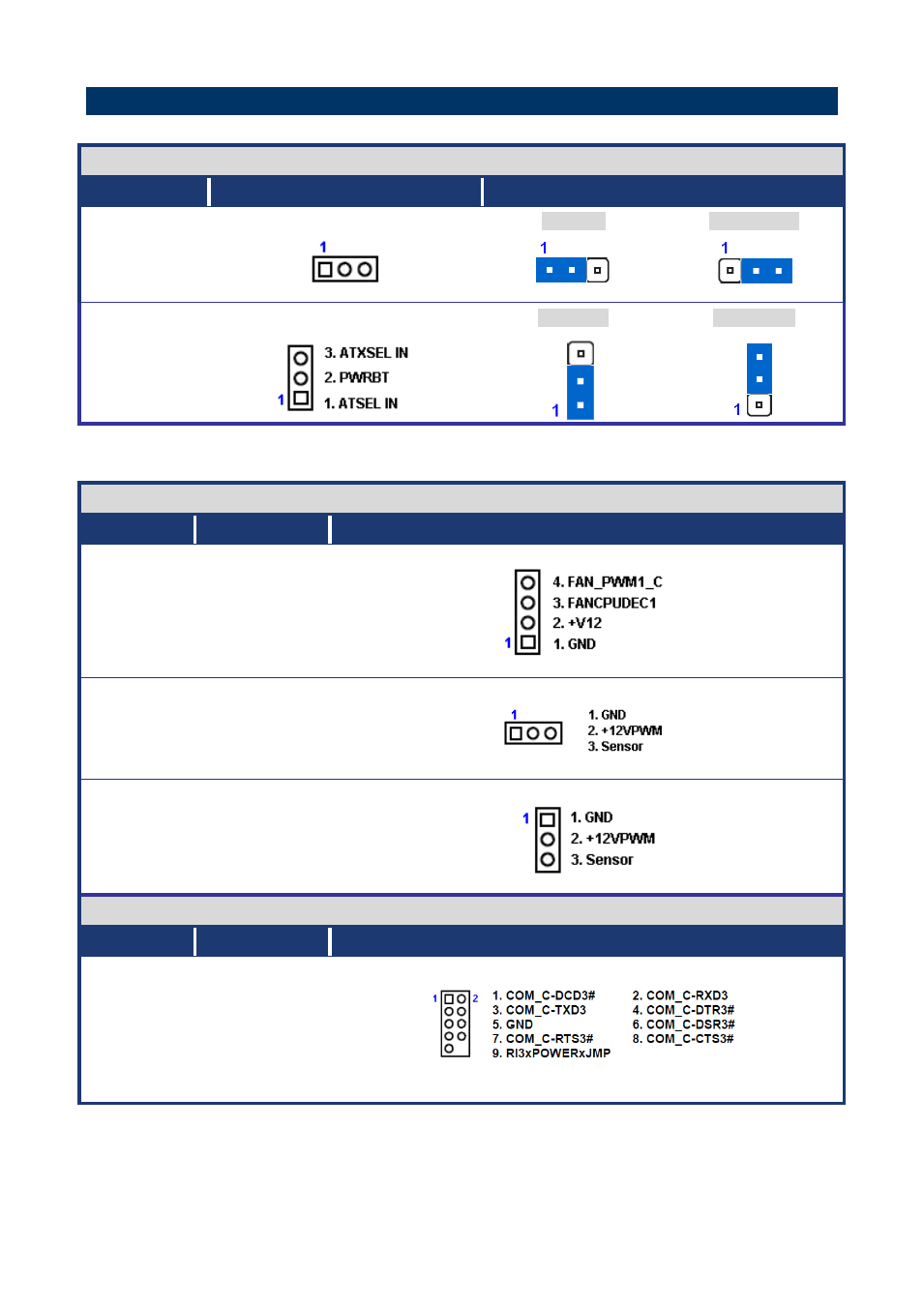

2.3 Setting Jumpers & Connectors

Jumpers

Label

Function

Note

JCMOS1

Clear CMOS

Normal *

Clear CMOS

PSON1

Select AT/ATX mode

AT MODE

ATX MODE

Connectors

Label

Function

Note

FAN 1

CPU Fan

Connector

FAN 2

System Fan

Connector

FAN 3

Chasis Fan

Connector

Connectors

Label

Function

Note

COM2

COM3

COM4

COM5

COM6

Serial Port

Connector
