Quick Installation Guide
EPI-QM57 Quick Installation Guide 19

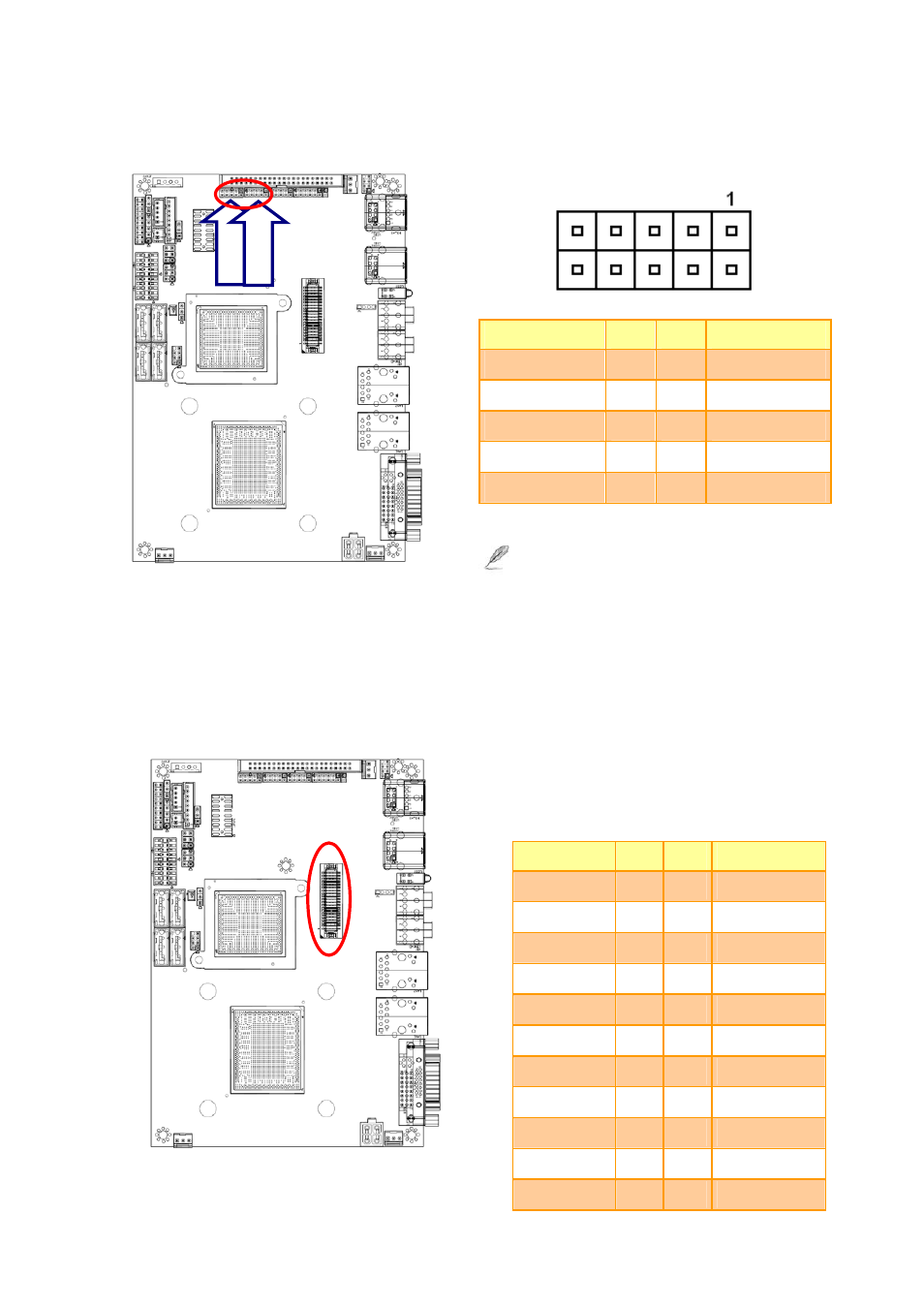

2.3.22 USB connector 4&5/ 6&7 (JUSB1/ JUSB2)
Signal PIN PIN Signal
+5V 1 2 GND
USB_DN4/ 6 3 4 GND
USB_DP4/ 6 5 6 USB_DP5/ 7
GND 7 8 USB_DN5/ 7
GND 9 10 +5V
Note: Wrong USB cable configuration with
your USB devices might cause your USB devices
damaged .
2.3.23 LVDS connector (JLVDS1)
Signal PIN PIN Signal
+12V 39 40 +12V
GND 37 38 GND
CLK2M 35 36 CLK1M
CLK2P 33 34 CLK1P
GND 31 32 GND
YA7M 29 30 YA6M
YA7P 27 28 YA6P
GND 25 26 GND
YA5M 23 24 YA4M
YA5P 21 22 YA4P
GND 19 20 GND
