ECM-QM77 Quick Installation Guide

ECM-QM77 Quick Installation Guide 23

2.5.2

Separate CPU cooler and its base first by screw drawer

1.

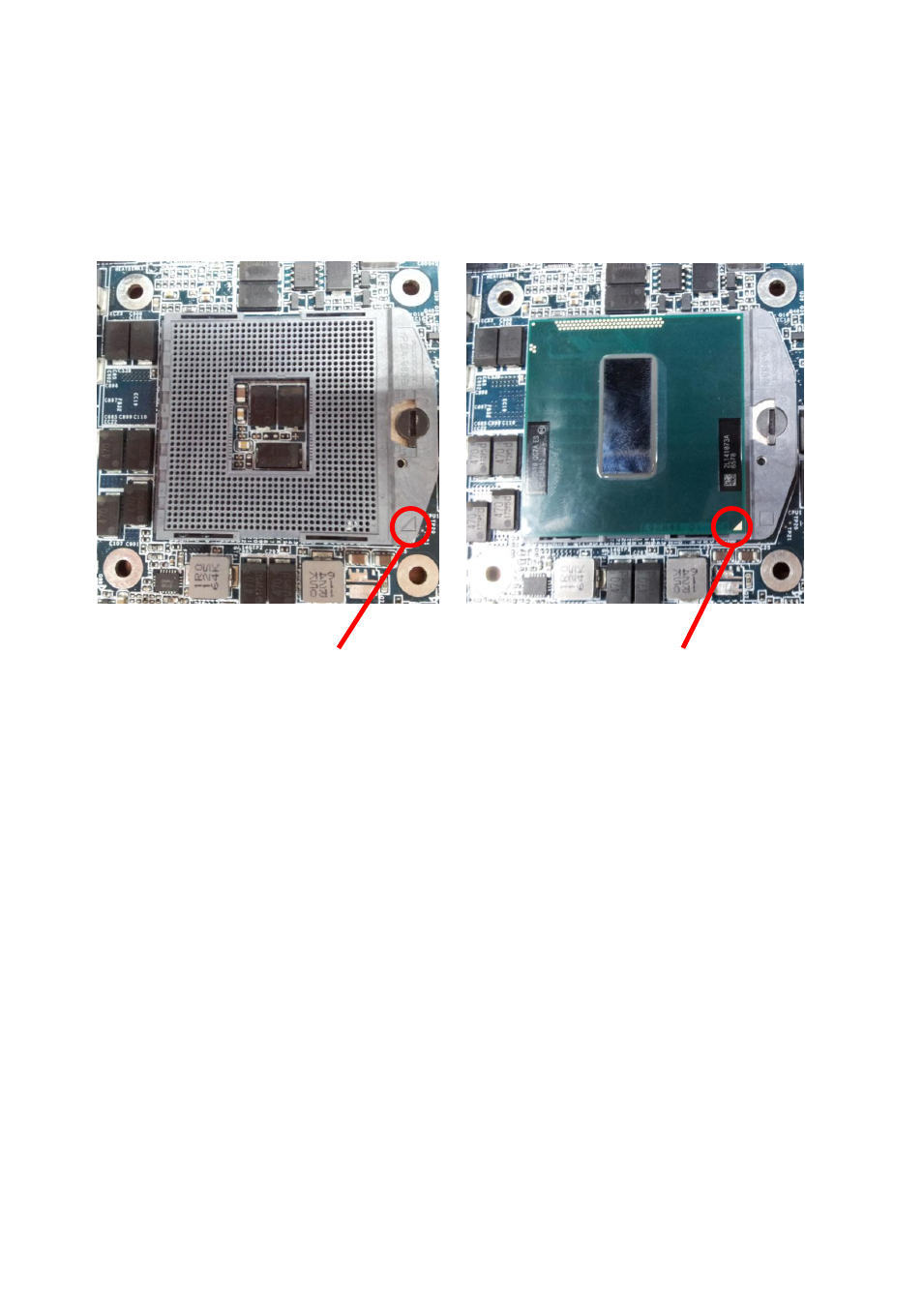

Position the CPU over the socket, making sure that the gold triangle is the same side

as CPU Socket triangle

CPU Socket triangle

Gold triangle
