1 1 DOOR HOOK - When the door is closed, it
will automatically lock shut.
If door is opened while oven is operating,
magnetron tube will immediately stop
operating.
2 2 DOOR SEAL - Door seal maintains the
microwave within the oven cavity and
prevents microwave leakage.
3 3 OVEN CAVITY
4 4 OVEN LAMP - Automatically turns on
during oven operating.
5 5 SAFETY INTERLOCK SYSTEM
6 6 CONTROL PANEL
7 7 SPATTER SHIELD - Protects the
microwave outlet from splashes of cooking
foods.
8 8 COUPLER - This fits over the shaft in the
center of the oven cavity floor.
This is to remain in the oven for all cooking.
9 9 GLASS COOKING TRAY - Made of
special heat resistant glass. The tray must
always be in proper position before
operating. Do not cook food directly on the
tray.
0 0 ROLLER GUIDE - Supports the glass
cooling tray.
q q DOOR SCREEN - Allows viewing of food.
Microwave cannot pass through
perforations in screen.

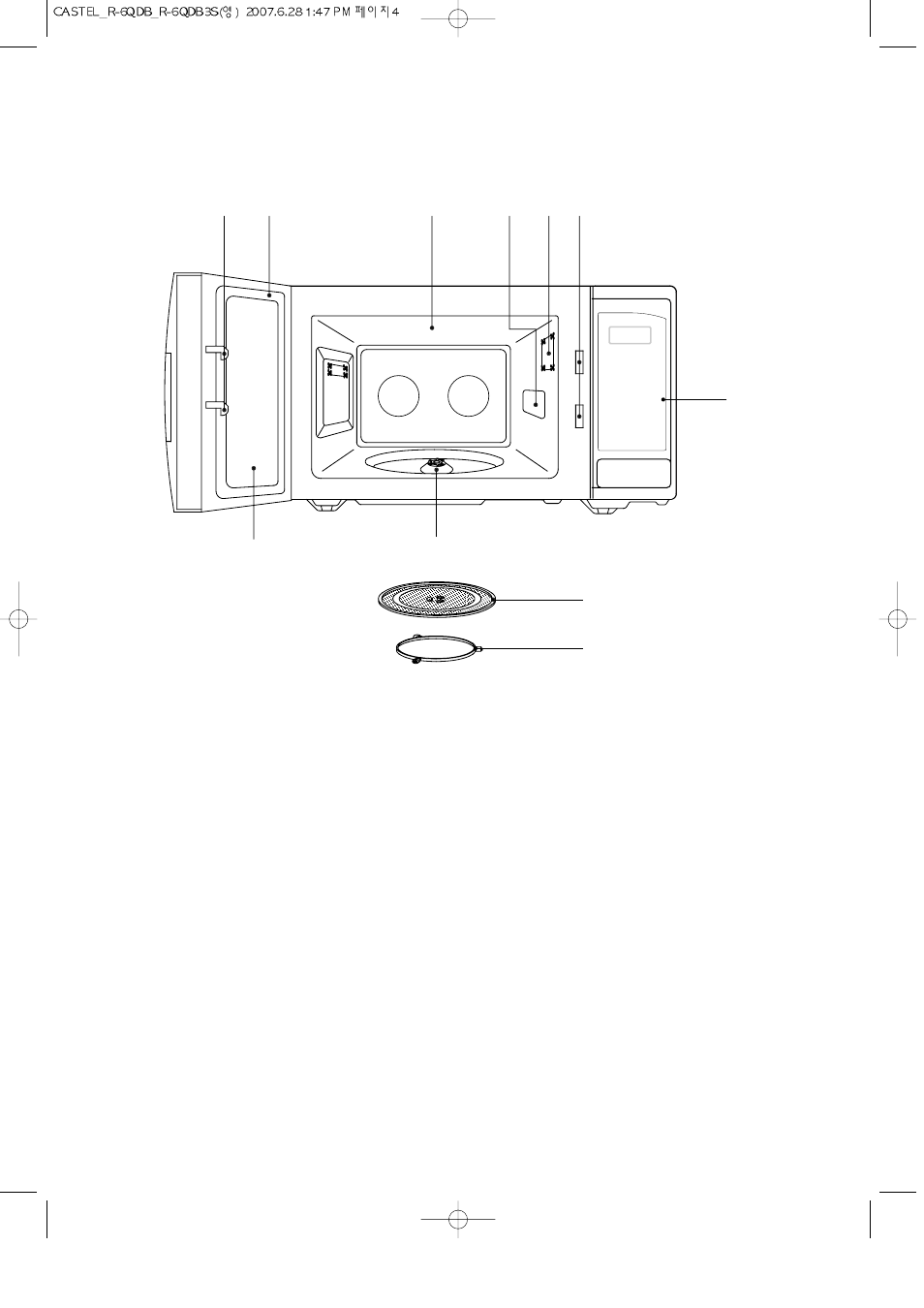

FEATURES DIAGRAM
1 2 3 4 7 5
9
0
q 8
6
