UM-UV-621-15-Q215V1 www.austin-hughes.com
Rear case
LCD panel
Protective 3mm glass
6mm aluminum front bazel
Audio speaker ( for Audio or TV option )
LCD membrane
Remote sensor
1
2
3
4
5
6
Front view
1
2
3
4
Rear view
6

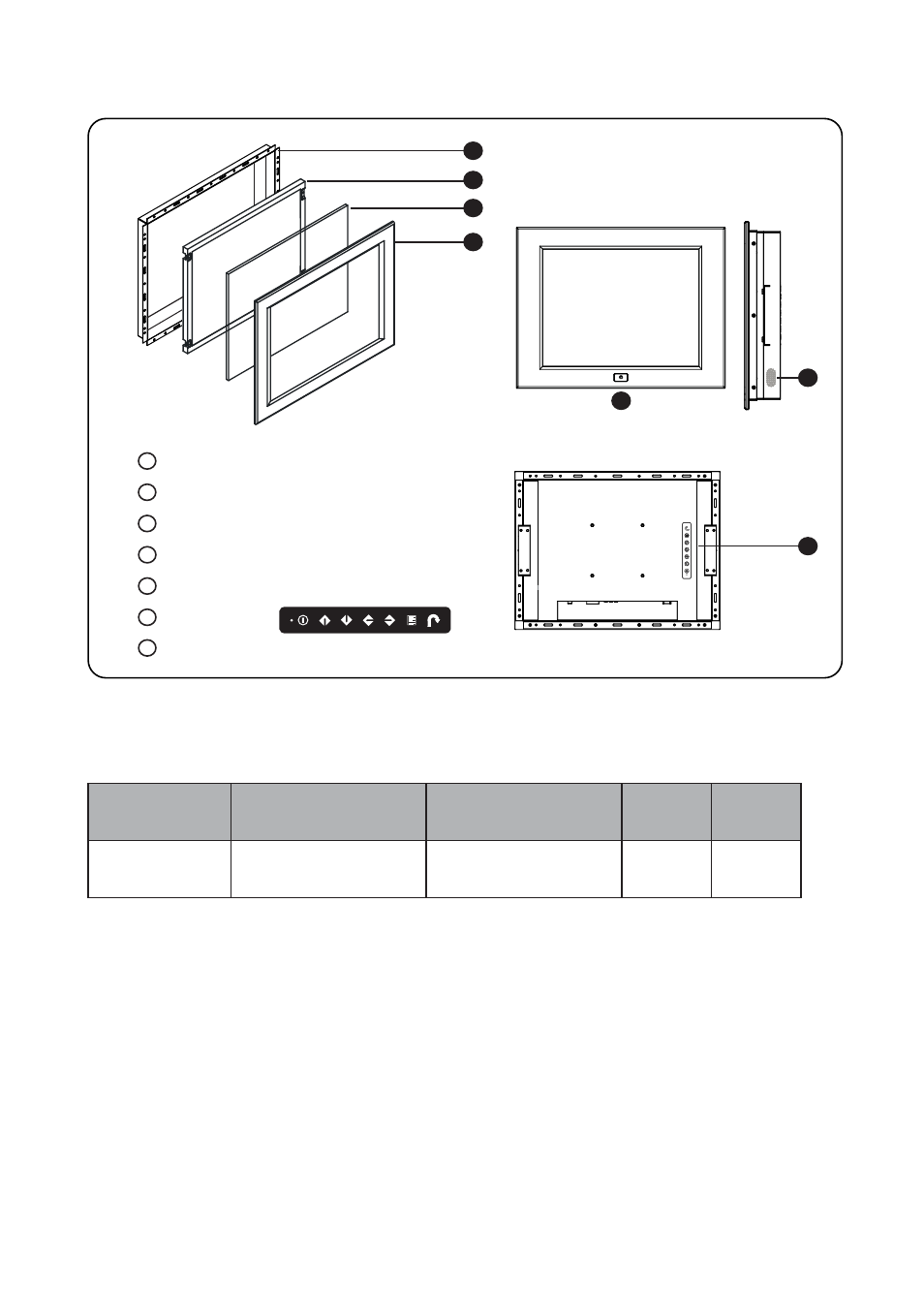

< 1.2 > Structure Diagram - AP / NAP-15
AP-15
NAP-15
P.2
5
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
407 x 59.1 x 313.6 mm
16 x 2.3 x 12.3 inch
615 x 113 x 523 mm
24.2 x 4.4 x 20.6 inch
4.7 kg
10.3 lbs
7.3 kg
16.1 lbs
AP-15
NAP-15
7
7
