UM-UV-621-6-Q215V1 www.austin-hughes.com
Front view
1
2
3
4
Rear view
6
Rear case
LCD panel
3mm protective glass
( NEMA 4 / IP65 front protection for NAP series )
6mm aluminum front bazel
Audio speaker ( for Audio or TV option )
LCD membrane
Remote sensor
1
2
3
4
5

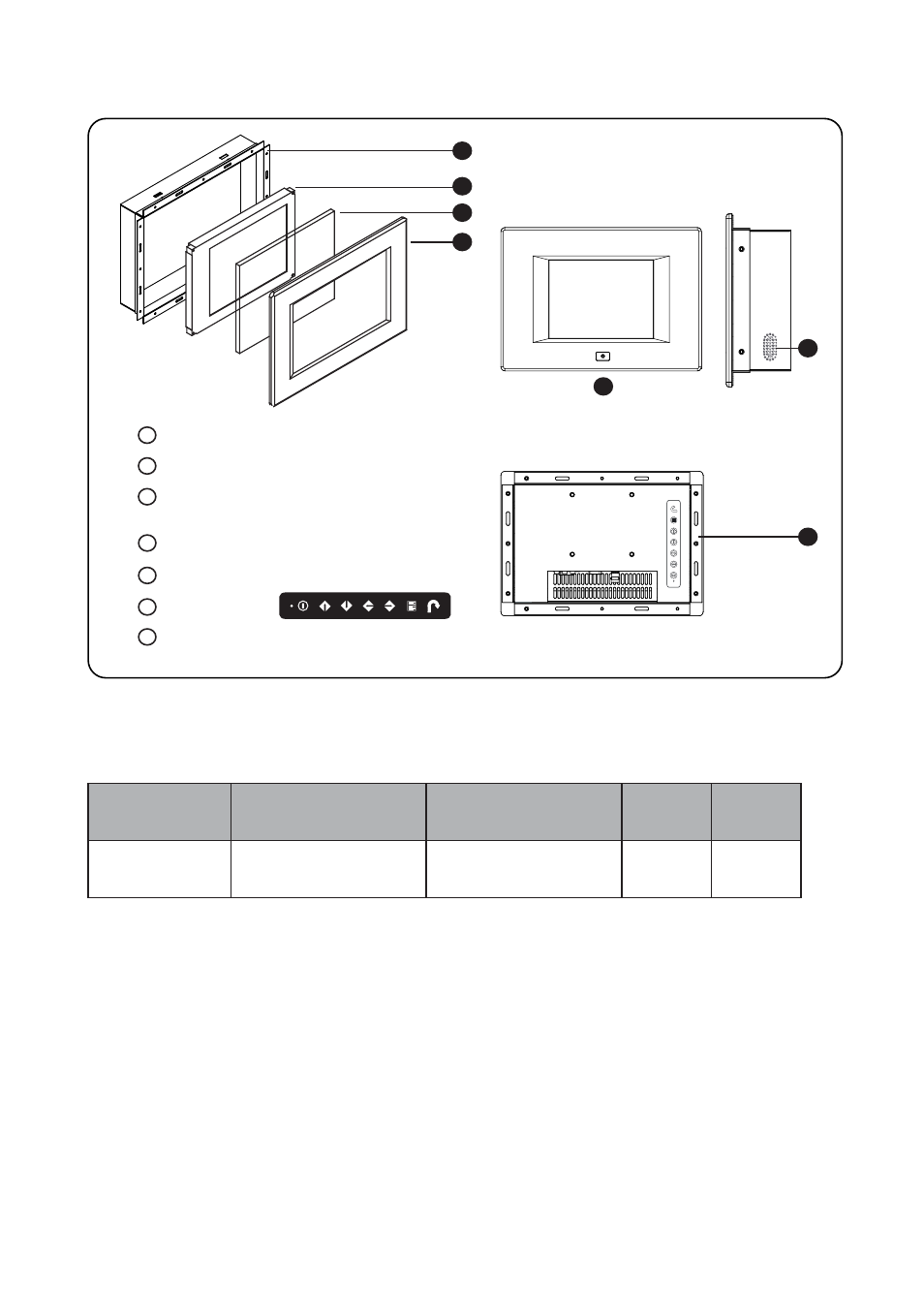

< 1.2 > Structure Diagram - AP / NAP-6
AP-6
NAP-6
6
P.2
5
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
254.7 x 67.8 x 182 mm
10 x 2.7 x 7.2 inch
515 x 117 x 429 mm
20.3 x 4.6 x 16.9 inch
2.1 kg
4.6 lbs
4.1 kg
9 lbs
AP-6
NAP-6
