UM-UV-621-W42-Q215V1 www.austin-hughes.com
Front view
Rear view
Rear case
LCD panel
8mm aluminum front bazel
Audio speaker, pair
LCD membrane
Wall-mount bracket
Remote sensor
1
2
3
4
5
6
Bottom view
7
7
1
2
3
6
5
4

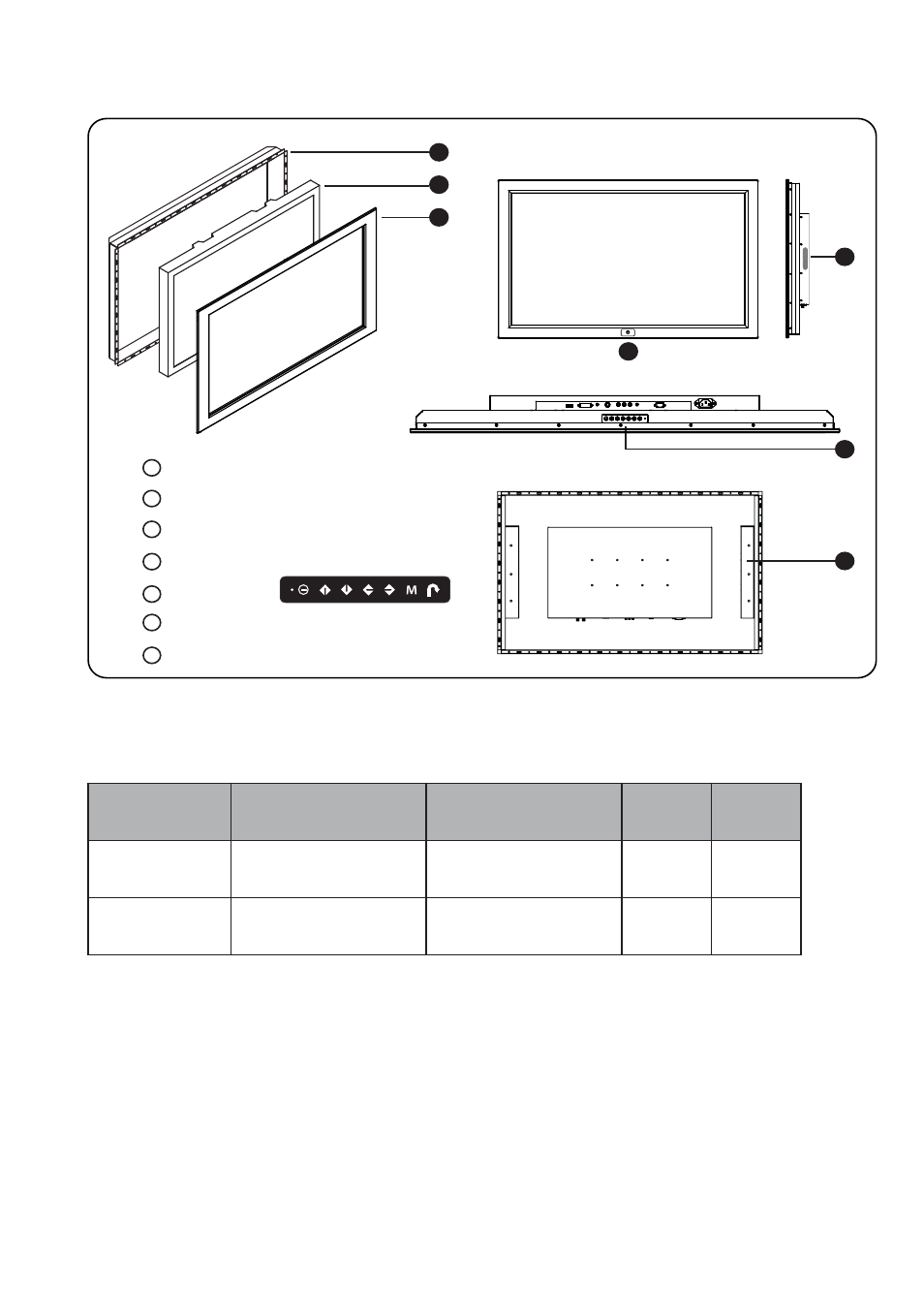

< 1.2 > Structure Diagram - AP / NAP-W42
P.2
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
AP-W42
1033.2 x 88.8 x 627.2 mm
40.7 x 3.5 x 24.7 inch
1122 x 199 x 712 mm
44.2 x 7.8 x 28 inch
31.7 kg
69.7 lbs
37.5 kg
82.5 lbs
NAP-W42
1033.2 x 88.8 x 627.2 mm
40.7 x 3.5 x 25.4 inch
1122 x 199 x 712 mm
44.2 x 7.8 x 28 inch
35.7 kg
78.5 lbs
41.5 kg
91.3 lbs
AP-W42
NAP-W42
