Model 24V 48V 110 ~ 125V
Input rating
Input voltage: 24-Volt 48-Volt 110-Volt
Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V
Input current
- No load 180 mA 90 mA 80 mA
- Full load 8396 mA 4198 mA 2467 mA
Output rating
Output voltage: 24-Volt 24-Volt 12-Volt / 24-Volt
Output current: 9.0A 9.0A 12.5A / 8.4A
Effi ciency 88% 89% 92%
24” High Resolution LCD Display < 4.4 > Options : Touchscreen & driver
< 4.5 > Options : DC Power
TRB Driver
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/downloads/UVDL/driver.html
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to fi nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”

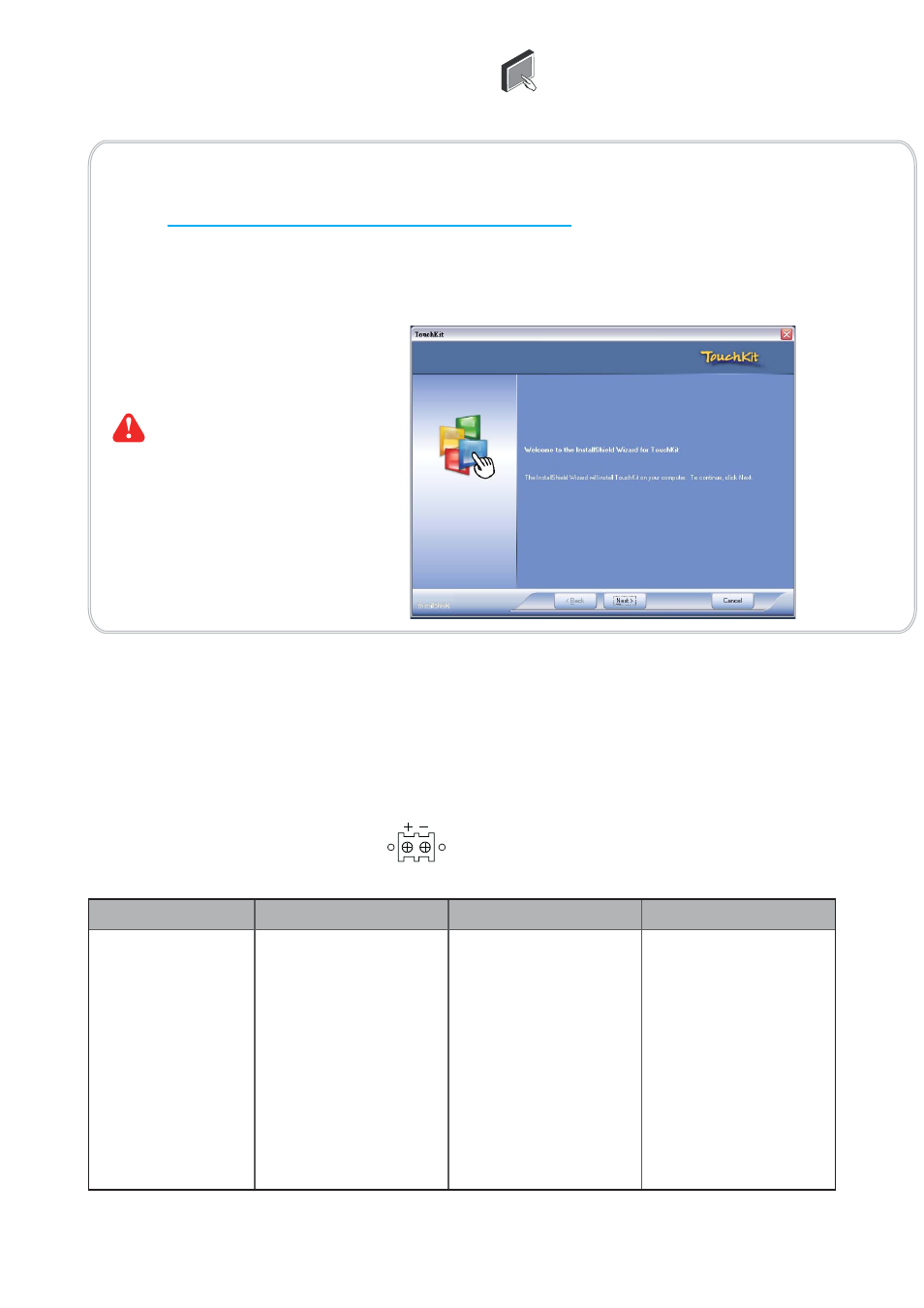

Please follow the below steps to setup the touch screen:-
Please do the initial calibration
after the fi rst setup
