RP-X117

For touchscreen option, casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )

***

Power

VGA

DVI-D

USB Touchscreen

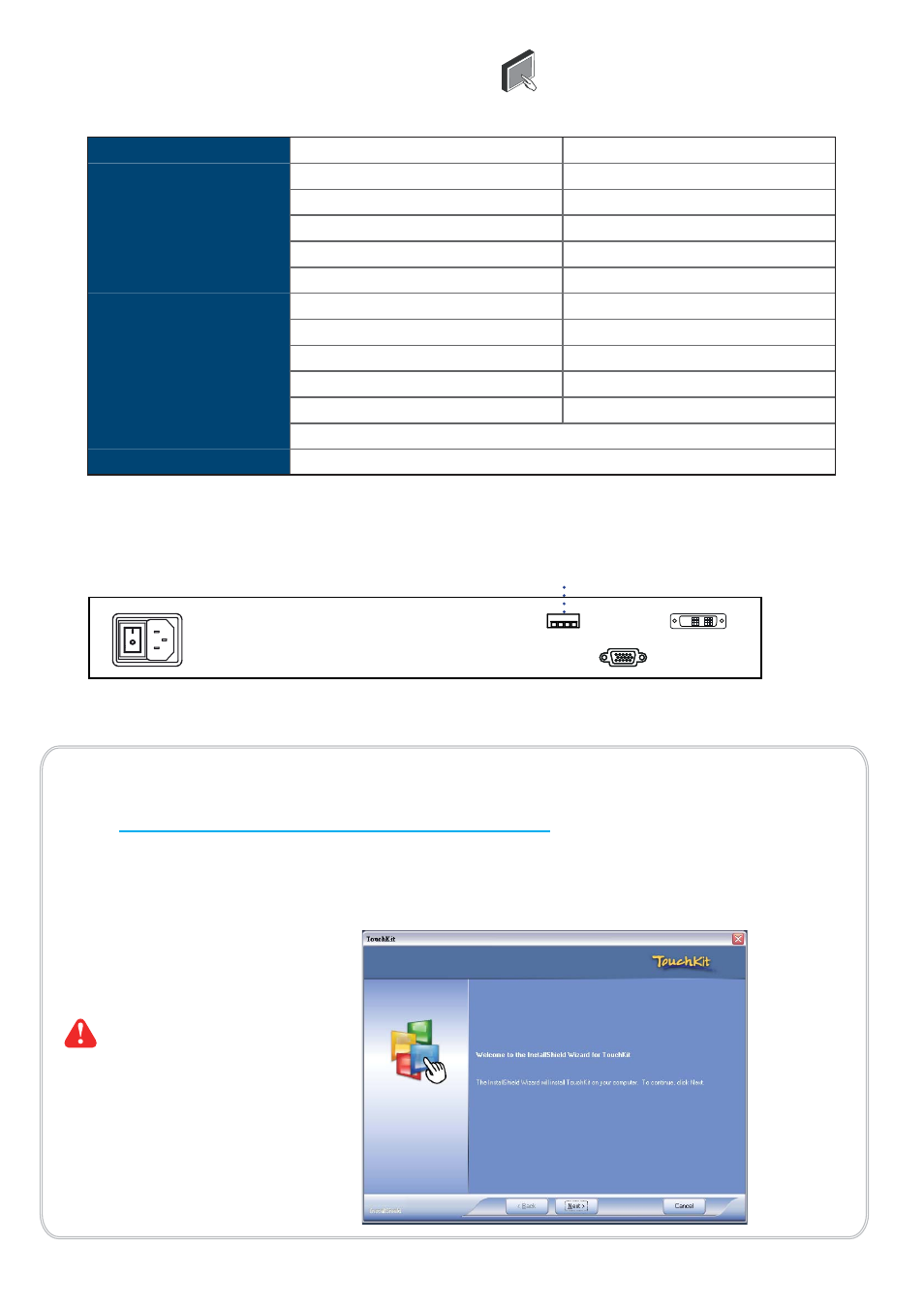

< 3.3 > Options : Touchscreen & driver

Model

TRB e-Resistive

TCB e-Capacitive

Technology

5-Wire Resistive

Capacitive

Touch Point

Single

Method

Stylus or Finger

Finger

Activation Force

≤ 50g / Stylus=R0.8

≤ 50g

Durability

10 million touches

300 million touches

Response Time

15 ms

20 ms

Optical Transmittance

80% ± 3%

92% ±2%

Surface Hardness

Haze

8% ± 3%

Glass

2.2 ±0.2 mm

2.8 mm ±10%

Connector

USB Type A

Compatibility

Windows 7 / XP / Vista, Linux

P.12

X17" USB Touchscreen Specifi cation

Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/downloads/RMDL/software.html

Step 2. Double click the Setup.exe

Step 3. Follow the installation instruction to fi nish the setup

Step 4. After installation, run the TouchKit program & the “4 point calibration”

Please follow the below steps to setup the touch screen:-

Please do the initial calibration
after the fi rst setup

■

USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc

■

For detailed information, please refer to the attached CD disc

■

As the touchscreen unit is not made of toughened glass, please handle it carefully
