3 > installation- how to install l-bracket – Austin Hughes RK-2b User Manual
Page 6
UM-CV-751-RK2e-Q215V1 www.austin-hughes.com
■

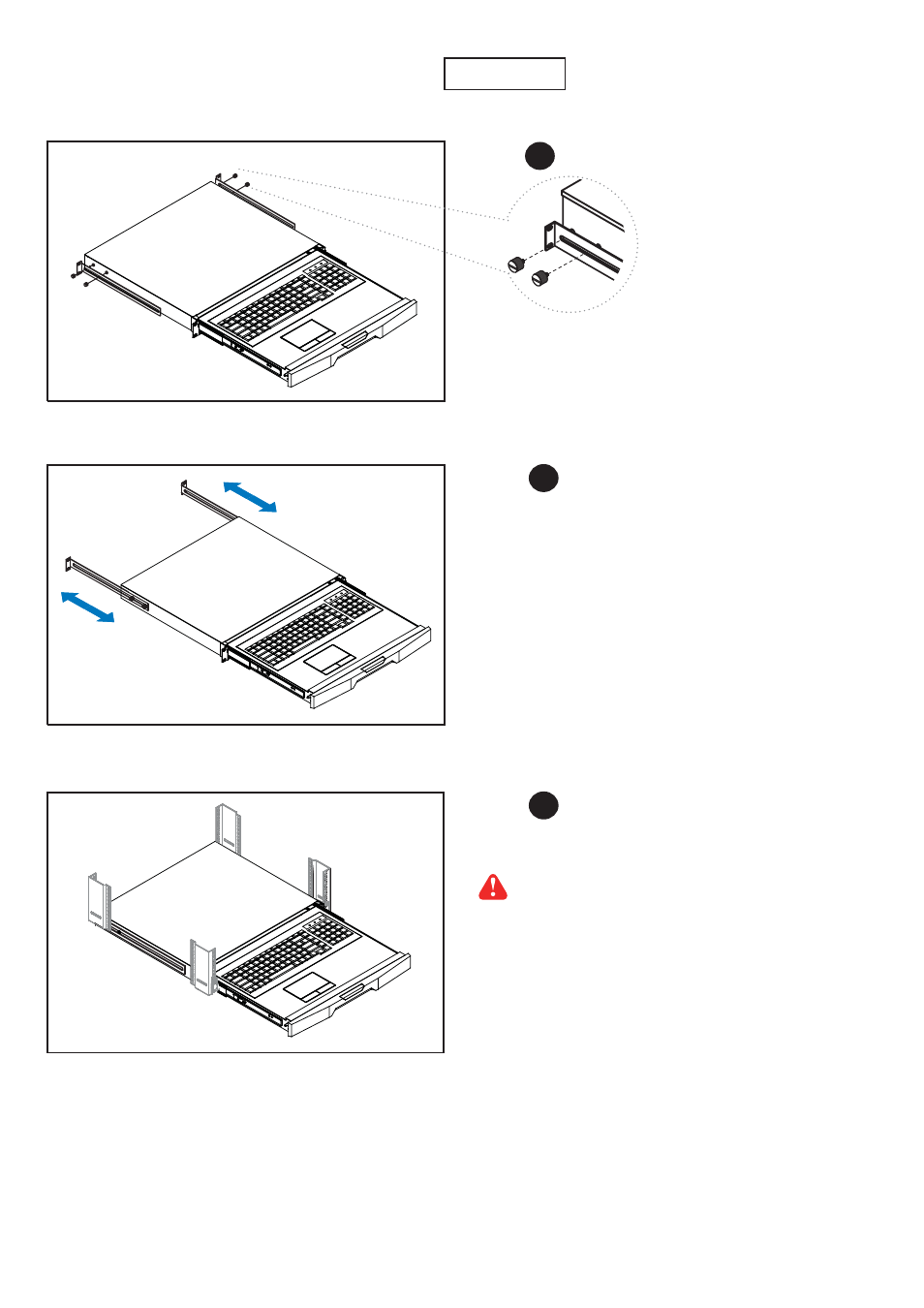

Install left & right rear L-brackets with two fasteners
shown above.
■
Leave the fasteners slightly loose.
■
Measure the depth of the front and rear mounting
rails.
■
Align each rear L-bracket to a suitable length and
tighten the fasteners.
■
Fix the keyboard drawer into the rack.
M6 mounting screws & cage nuts are not provided.
Step
1
Step
2
Step
3
< 1.3 > Installation- How to install L-bracket
