UM-CV-751-DF117-Q215V1 www.austin-hughes.com
5
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI, Audio & DC power.
Carry handle to release the 2-pt lock
LCD interchangeable module kit
Installation Slides
LCD membrane
Membrane switch (KVM option)
1
2
4
7
8
9
1
2
3
6
7
8
Audio speaker ( for SDI, HDMI or Audio option )
Keyboard interchangeable module kit
Touchpad mouse module
1U dual slide for LCD console drawer
4
3
6
9
DF117 unit X 1
- CX-6 6ft DVI-D console cable X 1
( Alternative : CB-6 6ft VGA console cable )
- Power cord X 1
- M6 screw, cage nut & cup washer X 8

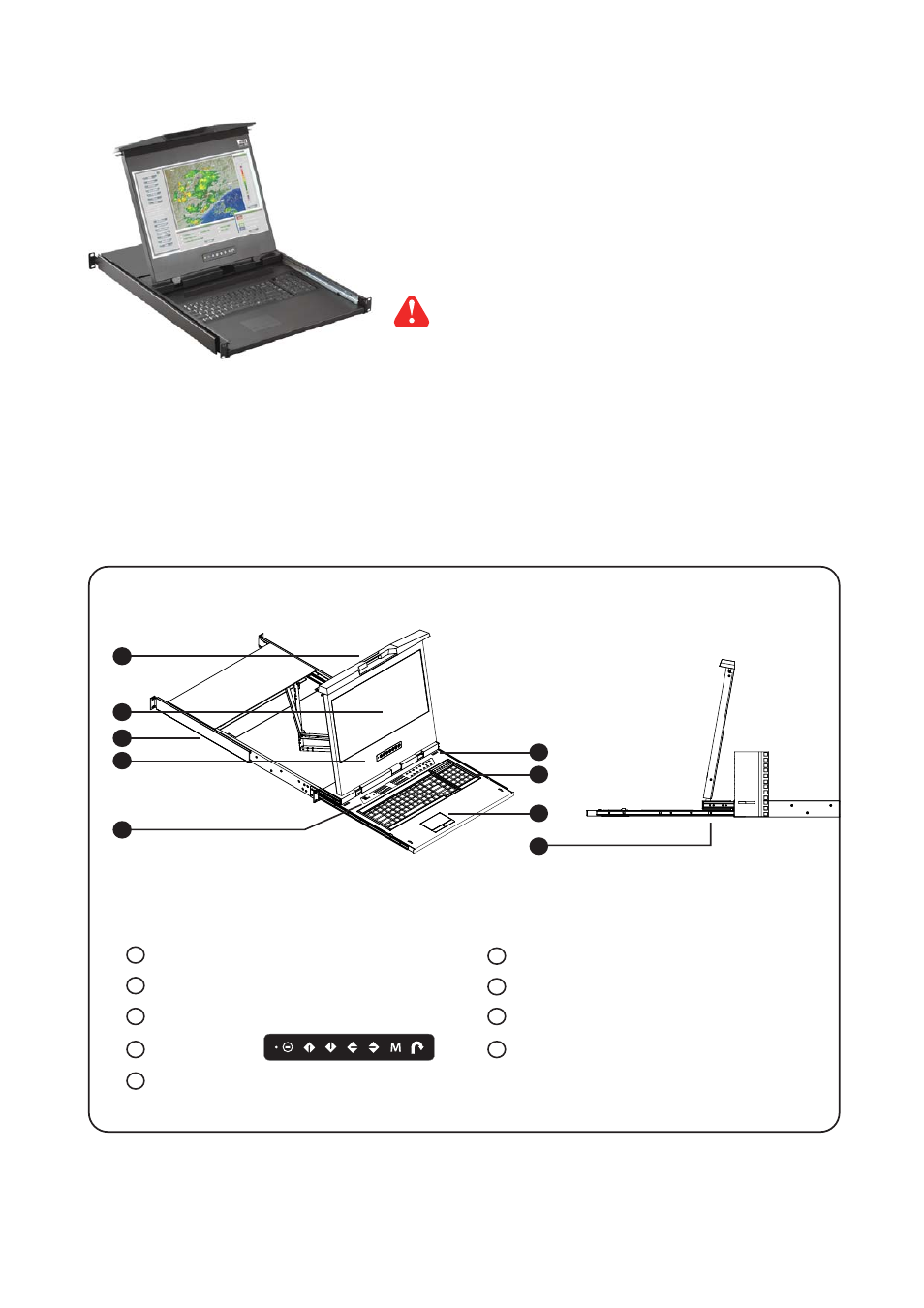

< 1.1 > Package Content
P.1
< Part 1 >
< 1.2 > Structure Diagram
DF117
5
5
