UM-CV-751-X117-Q215V1 www.austin-hughes.com
DVI-D PC
Device 2
X117
P.6

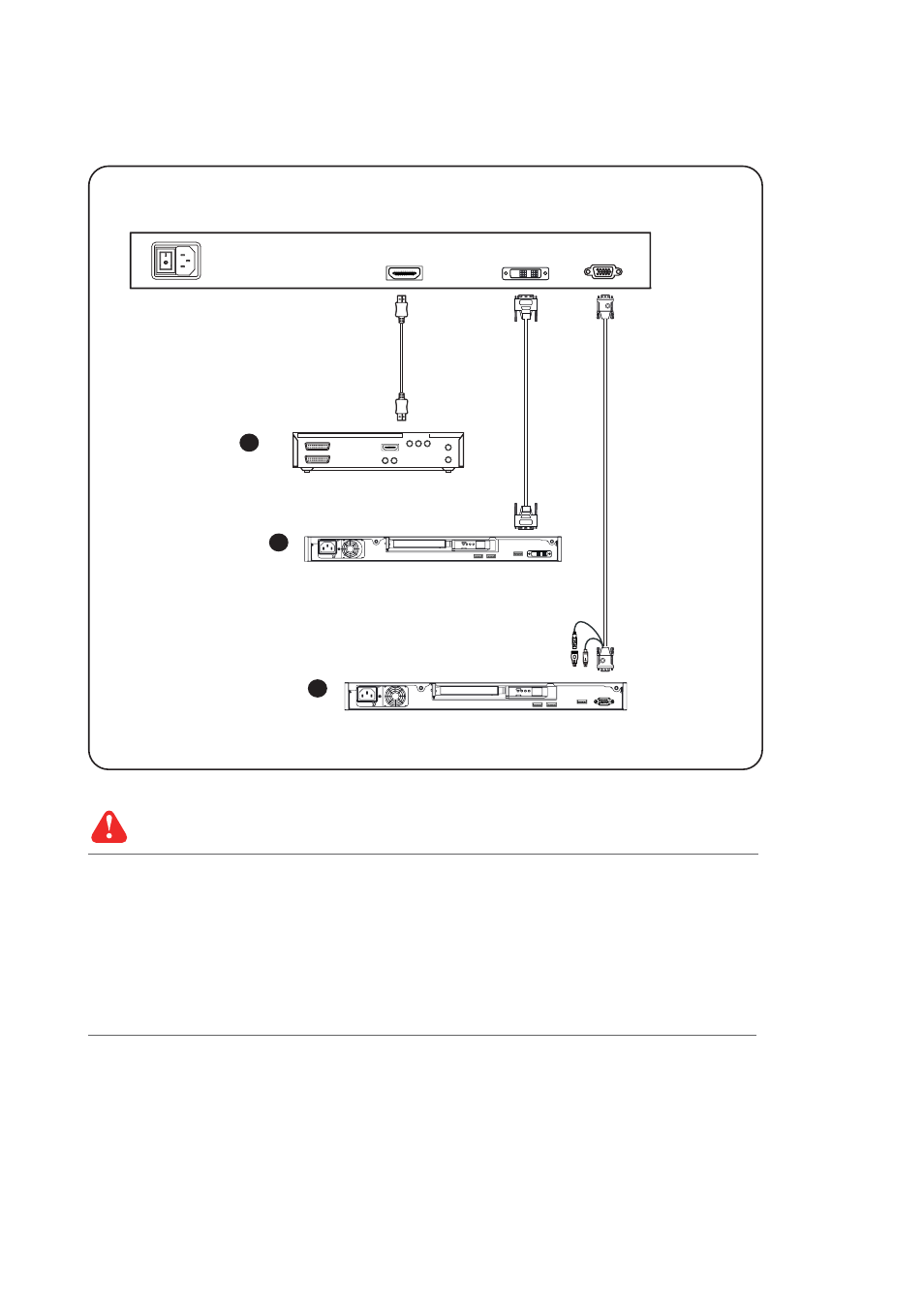

< 1.4 > Connection
X117 provides three signal input - DVI-D, VGA & HDMI. By PIP function, user can view two different signal
inputs on the display ( please refer to P.17-18 ).
LCD Console Drawer
CE-6 Combo
console cable
VGA KB &
mouse
HDMI player
Device 1
HDMI
cable DVI-D
cable
HDMI DVI-D VGA
USB server
Device 3
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
