P.16
■

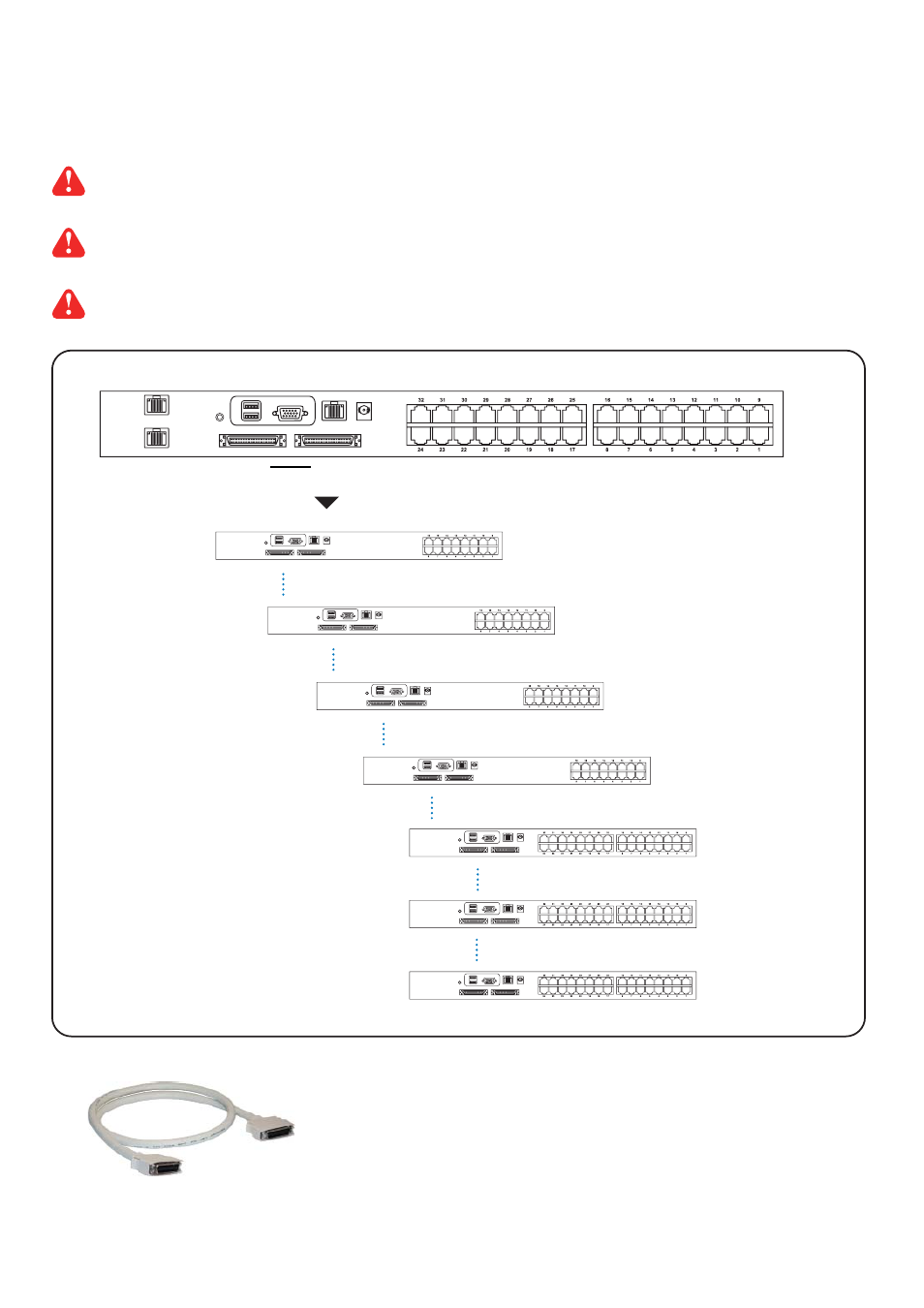

Cascade up to 8 levels, 256 servers
■
Cascading multiple KVM with CMC-8 cascade cable.
< 2.4 > KVM Cascade
MU-1602
MU-1602
MU-1602
MU-1602
MU-3202
MU-3202
MU-3202
Cascaded KVMs from level 2 to 8 must be the models of MU-1602 / MU-3202 or M-802 / M-1602.
When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other
slave KVM switches (e.g. level 2 to 8).
The slave matrix KVM will be as a port expansion module of the master matrix KVM, the original
remote console on slave KVM will be sacrifi ced and disabled.
Master KVM
Slave KVM
level 2
Slave KVM
level 8
Slave KVM
level 7
Slave KVM
level 6
Slave KVM
level 5
Slave KVM
level 4
Slave KVM
level 3
Matrix Cat6 KVM
CMC-8
■
8ft Matrix KVM cascade cable
To cascade OUT port
out in
Cascade
