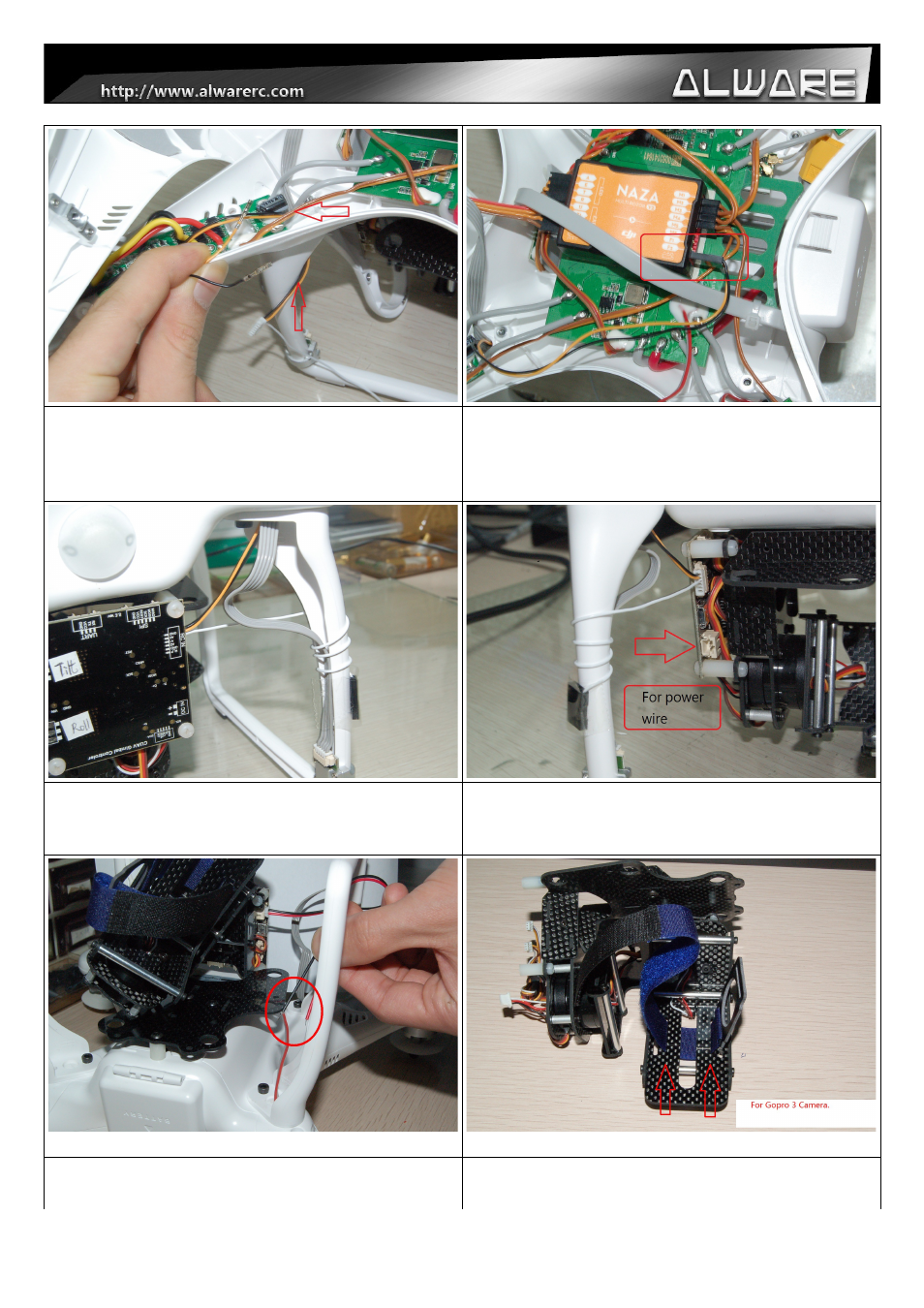

Step 11.
Insert the Black and Yellow wires through the landing
gear hole(with the Compass cable) of the Phantom. Step 12.
Insert the Black and Yellow wires back to the
connector and then insert to the “F2” port of NAZA
inside Phantom. (The black wire is facing upward)
Step 13.
The white wire of the Tilt Roll Controll cable is
useless so it can be just put outside of the Phantom. Step 14.
Connect the Power Cable to the DC IN port of the
Brushless Gimbal Controller.
Step 15.
Soldering the Power Cable to the Phantom. Step 16.
Use the closer slots when mounting with Gopro3 Cam.
