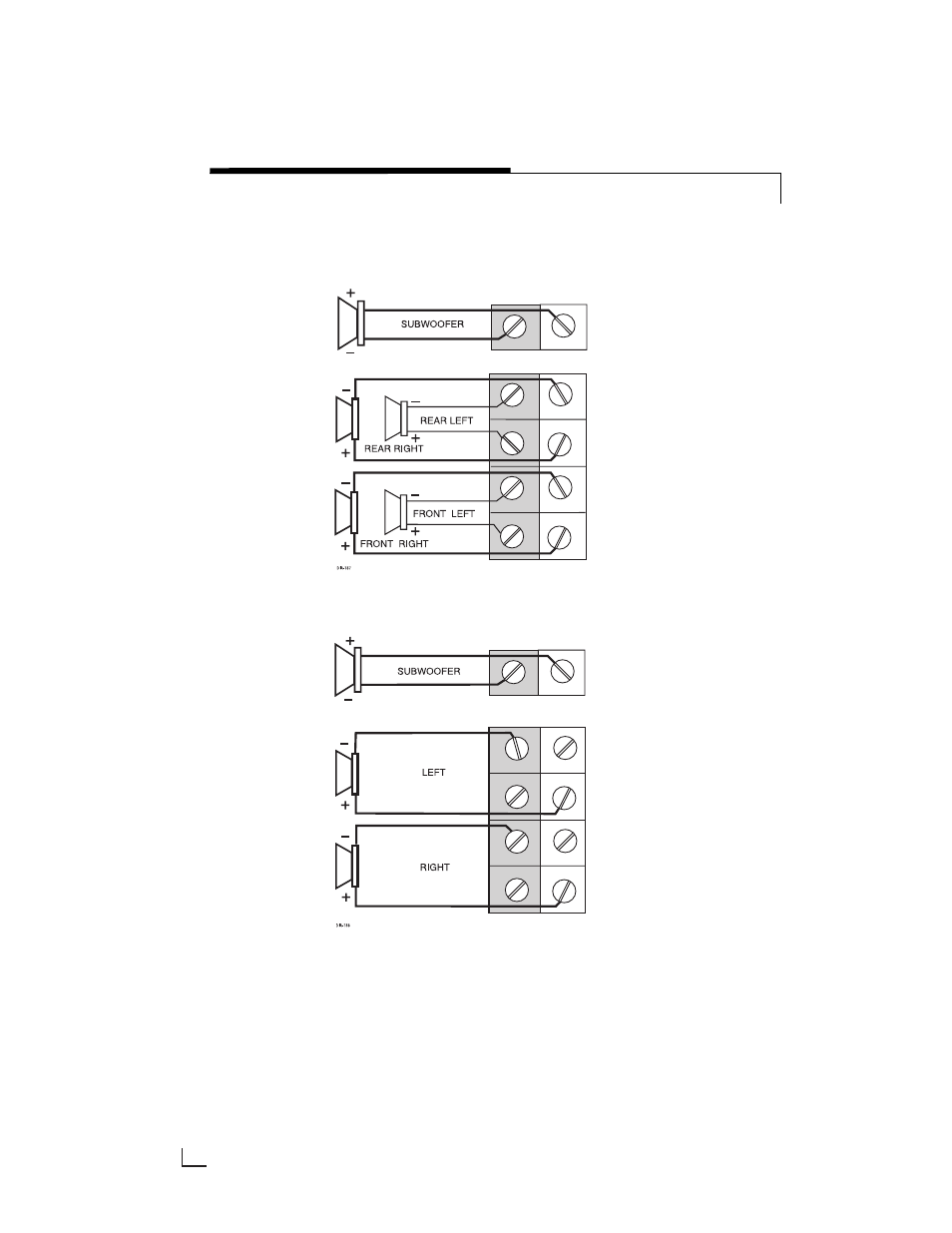

SPEAKER WIRING DIAGRAMS
For bridged three channel operation as shown in this diagram, connect right channel
RCAcables to the “FRONT” inputs of the amplifier, and left channel RCA cables to the
“REAR” inputs of the amplifier.
Five channel operation
Three channel operation
