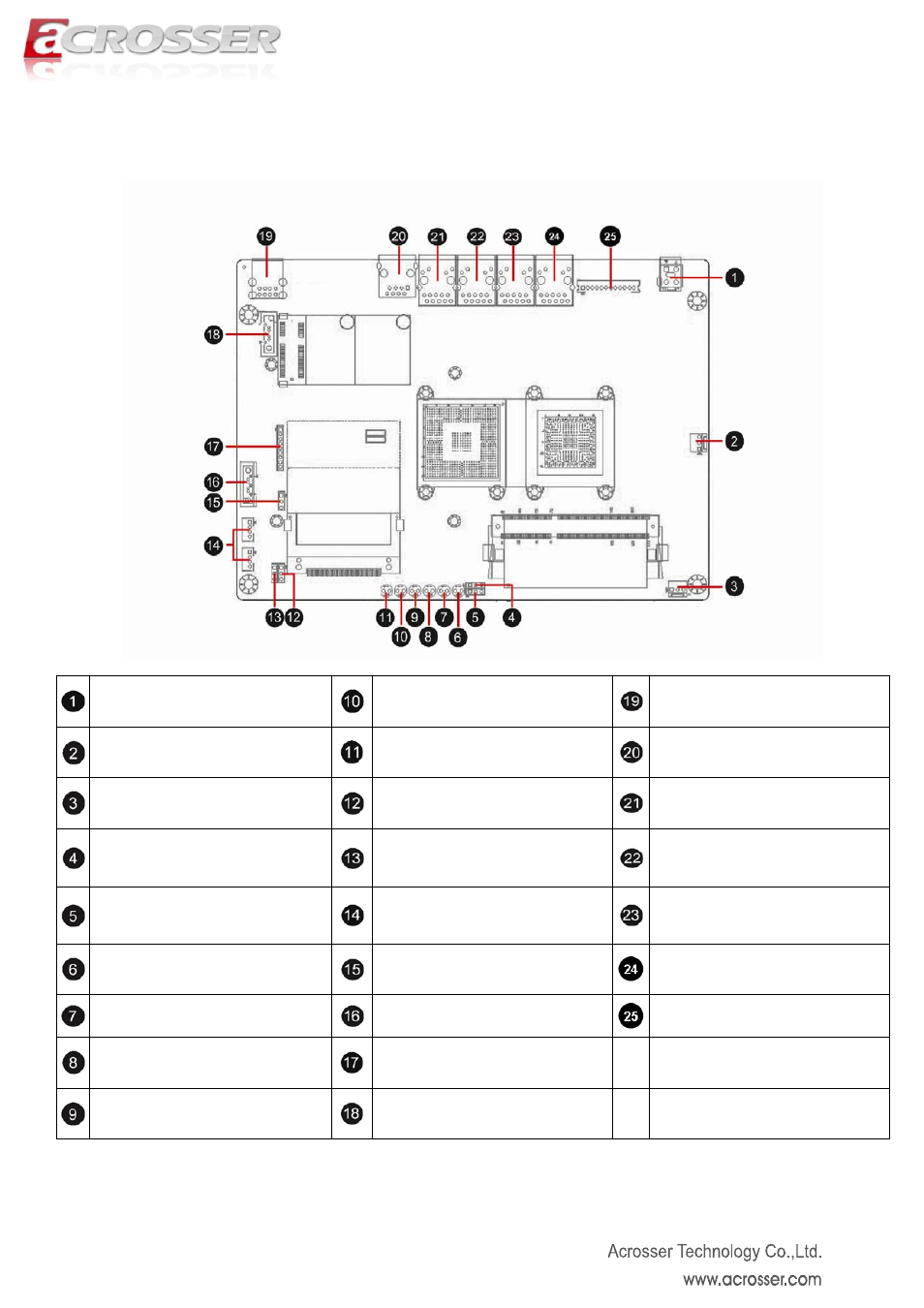

3.2. Headers and Jumper Settings
ATX2
DC power input connector
LAN_LED2
LAN 2 LED header
R_USB1*
USB connector
CPU_FAN1
CPU fan connector
LAN_LED1
LAN 1 LED header
COM1
RJ45 COM connector
SYS_FAN1
System fan connector
JP7
CF Card power supply control jumper
RJ45_J1
RJ45 LAN1 connector
F_PANEL2
Front panel 2 header
JP8
CF Card Working Mode Selecting
Jumper
RJ45_J2
RJ45 LAN2 connector
F_PANEL1
Front panel 1 header
P_SATA1~2
SATA1~2 power supply connector.
RJ45_J3
RJ45 LAN3 connector
PW_LED1
Power LED header.
CLR_CMOS1
Clear CMOS header.
RJ45_J4
RJ45 LAN4 connector
HD_LED1
HDD LED header.
S_ATA1
SATA1 device connector
VGA2
VGA expansion header
LAN_LED4
LAN 4 LED header.
J3
Debug header (Reserve)
LAN_LED3
LAN 3 LED header
S_ATA2
SATA2 device connector
*Note. It can not use USB Hub with power adaptor that connects to USB port.
