Part a. getting comfortable – Accutone A20 User Manual
Page 3
3
part a. getting comfortable.
Learning about the interface & controls.
A.1

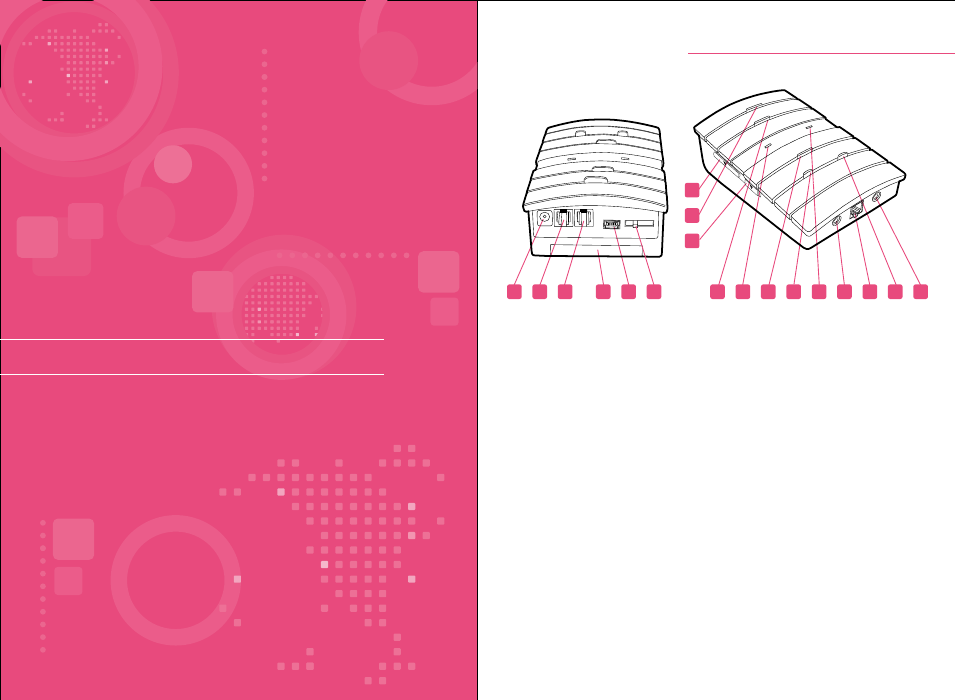

MAIN SWITCHES AND INTERFACE
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
External DC Supply Jack (9V DC)
Modular Jack for Telephone Handset
Modular Jack for Input from Telephone Unit
Battery Compartment Door
PC/Recording Machine Jack
Microphone Selector
Telephone Configuration Switch
Mute Switch
Power On/Off Switch
Microphone Volume Control Slide Switch
Muting LED Indicator
Reception Volume Control Slide Switch
Telephone/PC Selection Switch
Online LED Indicator
Reception Volume Gain Controller
Modular Jack for Telephone Headset
Headset/Handset Application Switch
Microphone Volume Gain Controller
1
2
3
4
5
6
10
11
12
13
14
15
16
17
18
9
8
7
2
A.1 Understanding the Controls.
A.2 Connection and Preparations.
getting comfortable.
Part A. Getting Comfortable
understanding the controls.
