Page 13: 3 wall mounting with a junction box
Hardware Install Manual | VISIX 360 Network Camera
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
13

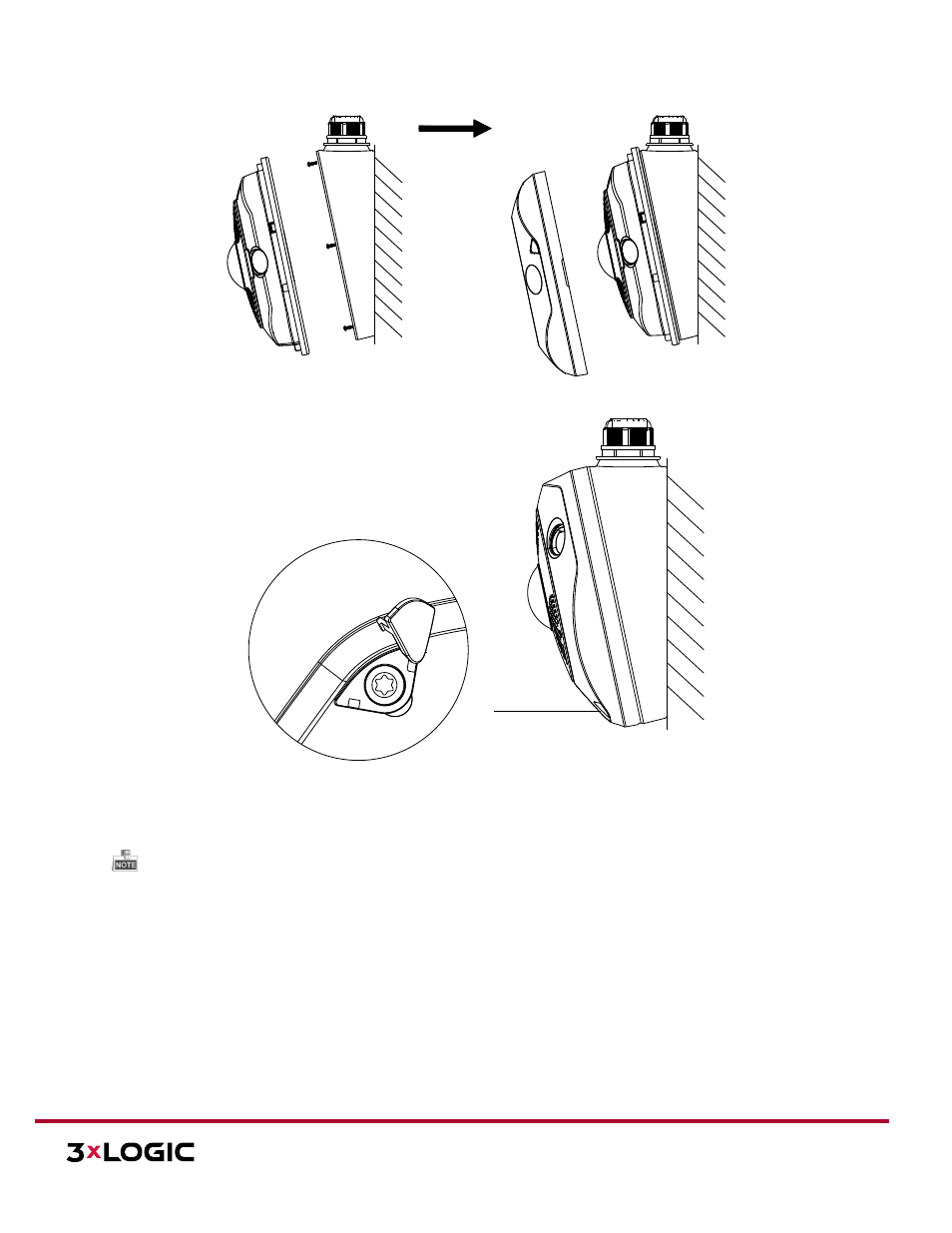

Figure 2-7 Install the Camera Body and Cover
Figure 2-8 Tighten the Lock Screw on the Camera Cover
2.3 Wall Mounting with a Junction Box
(Product #: VX-SMJ-360)
You have to purchase a junction box separately if this mounting method is selected.
3xLOGIC Product Number: VX-SMJ-360
Steps:
1. Fix the junction box to the wall with screws.
Lock Screw
