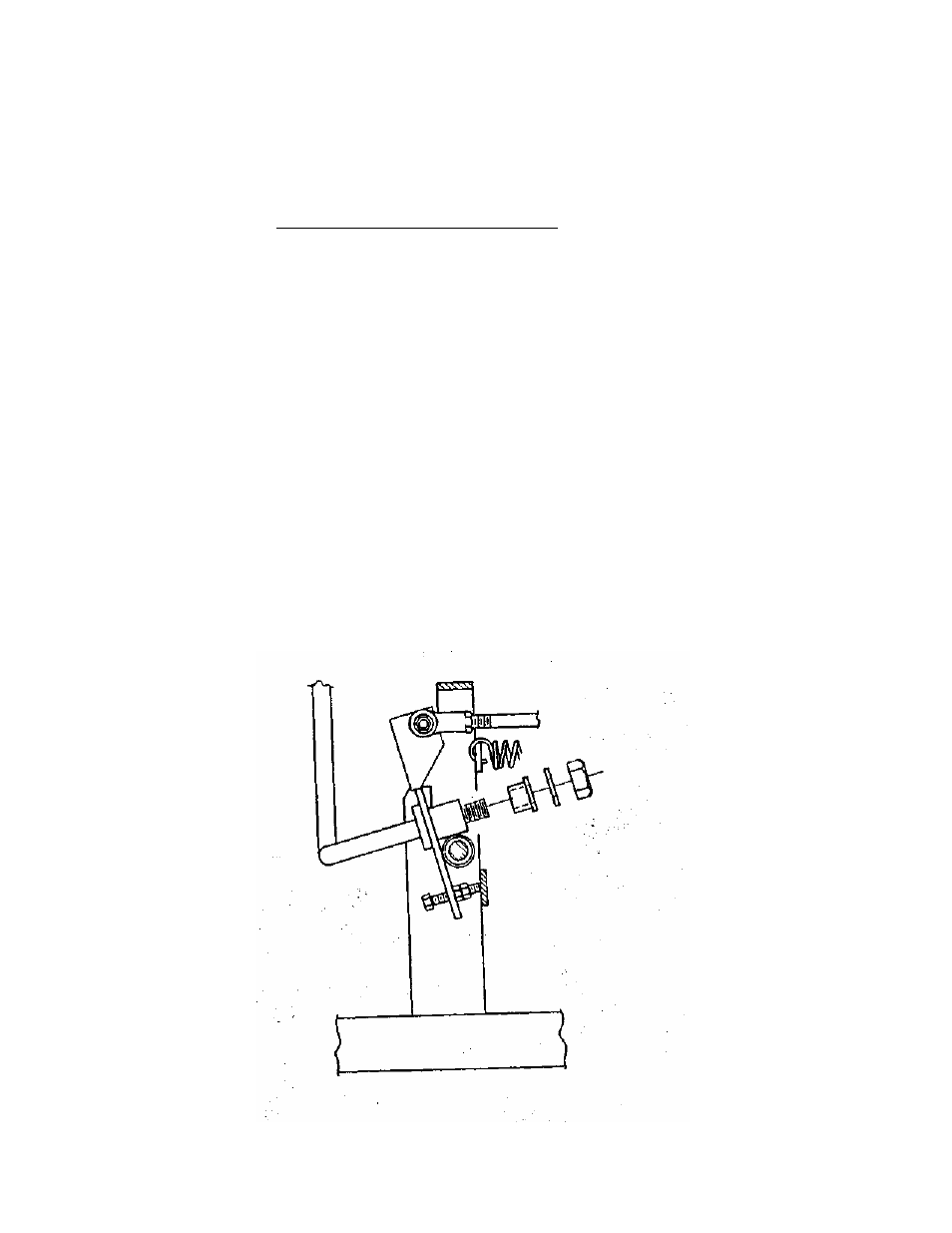

UPPER CONTROL LEVER INSTALLATION
1. Raise rear body cover to fully open position.
2. Insert left upper control lever on swivel plate.
3. Install fiber washer and jam nut.
;
4. Proper tightness or tension on jam nut is achieved when swing out movement of upper
control levers requires some pressure. Levers should not fall to the side or be
sloppy in movement.
5. Repeat procedure on right side.
