PUTTIng InTo oPEraTIon
STOP
CaUTIon: when working on the brushcutter always be absolutely certain to switch off the engine, pull the spark plug
cap and wear protective gloves!
IMPorTanT: Do not start the brushcutter until fully assembled and inspected!

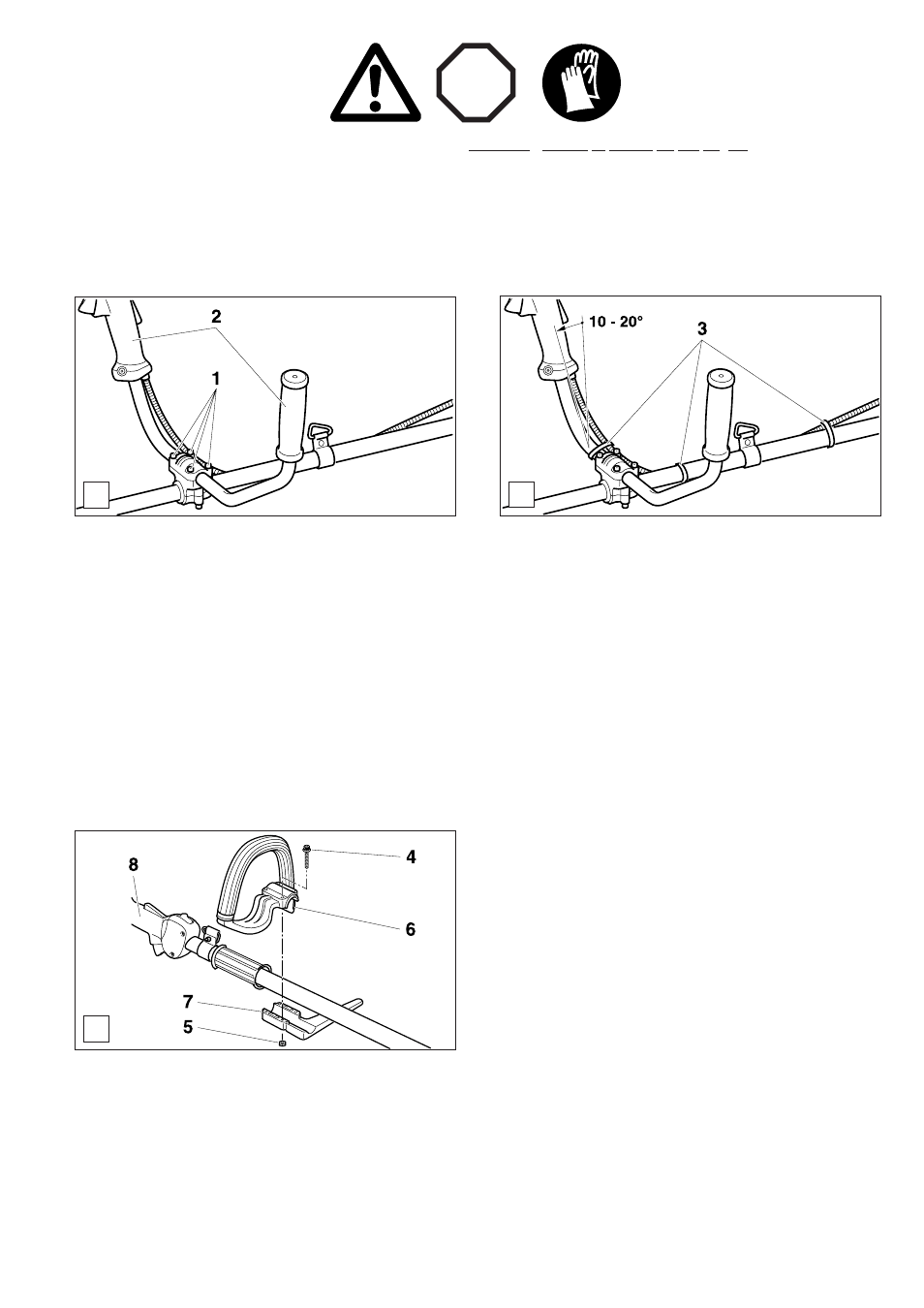

A
- Loosen screws (a/1) and unscrew about 1- mm.
- Push the grips (a/2) into the grip mounting, as shown in the
illustration.
- Tighten the screws only enough to hold the grips while leav-
ing them able to be turned for final positioning.
B
Installing the handle
(MS-60 U, MS-330 U, MS-430 U)
- Push the handle about 10 to 0° forward and tighten the
bolts (a/1).
- Attach the bowden cable to the shaft tube using the cable
ties (B/3) found in the enclosed pack.
noTE:
The handle must be tilted to accommodate the operator, so
the exact angle will depend on the operator’s body size. For
easiest operation the elbows should be slightly bent, with the
wrists straight.
C
Installing the handle
(MS-30 C, MS-60 C, MS-330 C)
- Take the bolts and nuts (C/4, 5) and grip bracket (C/7) from
the enclosed pack.
- Place grip (C/6) on shaft tube.
- Attach the handle retainer plate (C/7) with bolts (C/4) and
nuts (C/5). Set the right distance between the throttle grip
(C/8) and hand grip, and tighten screws (C/4).
