Dimplex LI AS - Manual (Page 4)

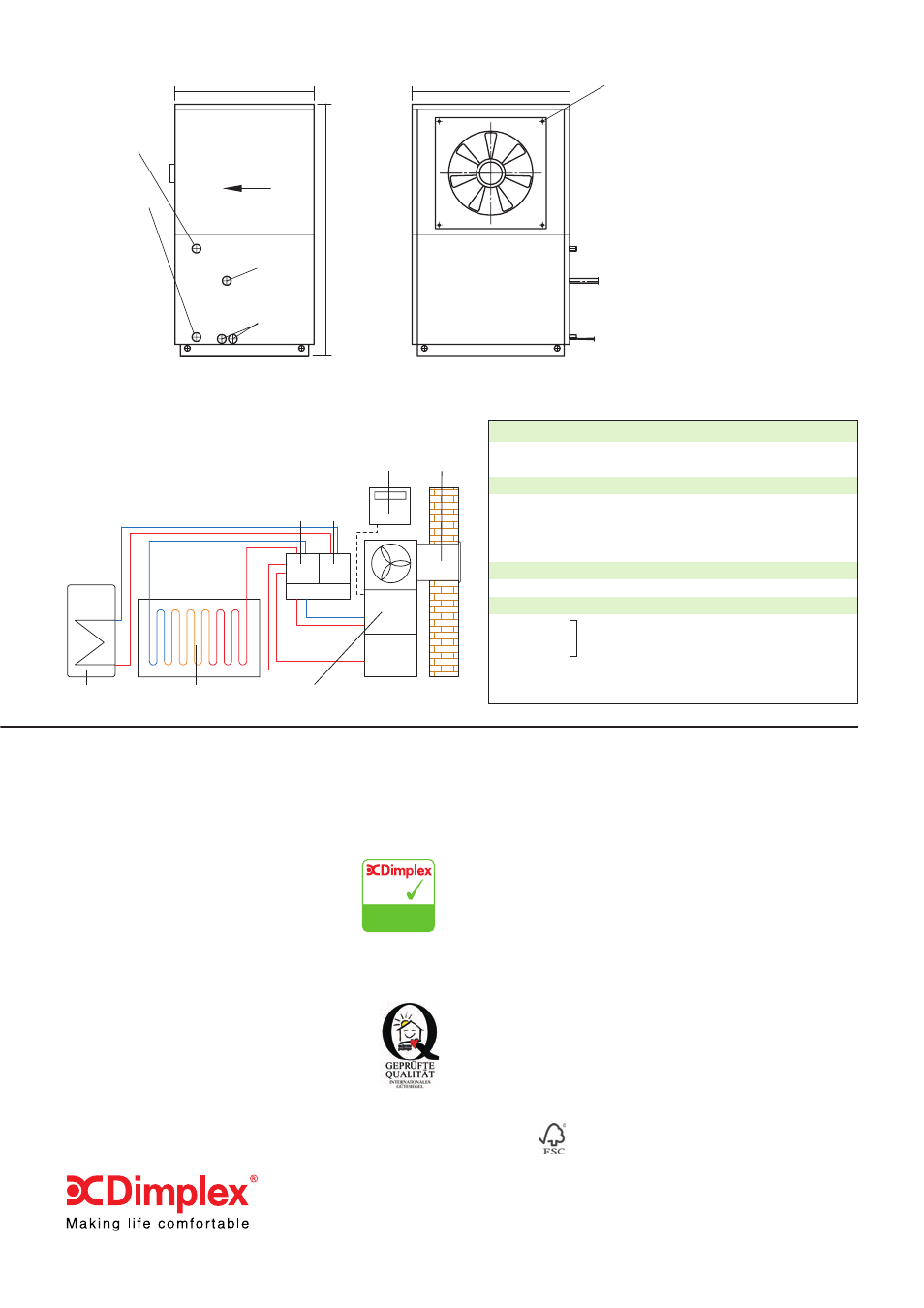

DIMENSIONS AND CONNECTIONS
TYPICAL SYSTEM CONFIGURATION AND ACCESSORIES
LI 11MS / LI 16AS
Heat Pump
Buffer
Tank
VTB25
Heat Pump
Control
Heating
Circuit
DHW
Cylinder
The diagram below shows a typical LI MS / LI AS heat
pump configuration for heating and domestic hot water
including typical accessories required for a single
heating circuit.
(Note this is for illustrative purposes only and is not intended as a full
hydraulic schematic)
RSG 600/700
LKL
LKB
LKK
600/700
KPV25 WWM25
D1238/0406
Heat Pump Qty
LI 11 MS or Indoor air source heat pump (single phase) 1
LI 16 AS Indoor air source heat pump (three phase) 1
Heating and Hot Water Accessories
PSP 890 140L built-under buffer tank 1
KPV25 Compact manifold 1
WWM25 Heating circuit/hot water module 1
VTB25 Manifold bar 1
Controller Accessories
EVL 995/6/7/8 – 1 Heat pump/controller connecting cable 1
Ducting Accessories
LKL 600/700
Long, short or 90° elbow ducts
LKB 600/700
(dependent on requirement)
1 or 2
LKK 600/700
DMK 600/700 Sealing collar 1 pair
RSG 600/700 Rain guard 2
4x Internal screw thread M8x15
Condensate
drain inside
30mm
Heating water supply.
Heat pump outlet
1" external thread
Heating water return.
Heat pump inlet
1" external thread
Electrical
lines
Direction of air flow
750 850
1360 / 1570
Glen Dimplex UK Limited, Marketing Department, Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF. Telephone: 0870 077 7117 Fax: 0870 727 0109
For Northern Ireland please contact – Glen Dimplex N.I. Limited, Unit No. 24, Seagoe Industrial Estate, Portadown, Craigavon, Co. Armagh, BT63 5TH. Telephone: 02838 337317
Designed and pr
oduced by CCA Ltd, Christchur
ch (Bour
nemouth). T
elephone 01202 499612
TRUST OUR EXPERIENCE
As the world's largest manufacturer of electrical heating technology, Dimplex
has been at the forefront of product development and innovation for nearly 60
years. We are well respected within the construction industry for producing
products of the highest specification and quality and for our pre and post sales
support. At our manufacturing plant in Kulmbach, Germany, we have been
developing and producing innovative heat pumps for over 30 years.
EVERYTHING'S A MATTER OF PROPER PLANNING
Heat pumps are one of the most efficient and economical
heating systems provided the individual components of the
heat pump system, including the heat source, heat pump
and connected heating system are properly matched.
Dimplex can provide advice and guidance on the correct
heat pump for your application and our network of experienced, fully trained
installers will provide complete system planning assistance, installation and
comprehensive after-sales service.
CERTIFIED QUALITY
Maximum operational reliability of all Dimplex appliances is
ensured at all times due to continuous quality assurance during
production and quality certification to EN ISO 9001. The
international heat pump quality label for heat pump heating
systems guarantees highest safety and quality standards.The
tests conducted by recognised testing institutes provide
comparability of results, ensure compliance with standards and guarantee an
extensive after-sales network with at least 10-year spare parts availability.
Dimplex is also a member of the UK Heat Pump Association.
SPECIFICATIONS
Dimplex policy is one of continuous improvement; the Company therefore
reserves the right to alter specifications without notice. Although every care
has been taken in the reproduction of product finishes in this brochure,
photographs should be taken only as a guide. The information is correct at the
time of printing.
CE MARK
Products carrying the CE mark comply with European safety standards and
the European Standard for electro-magnetic compatibility.
