DLS Svenska AB IRIDIUM 15 - Manual (Page 4)

SEALED
Sealed enclosure:
Wiring : Single VC
Volume : 45,5 / 1,6 (litre / ft 3 )
Damping : Acoustic wool
F3 : 44,6 Hz
Outside box dimensions:
Width
: 600 mm (23,62”)
Height : 460 mm (18,11”)
Lower depth : 278 mm (10,94”)
Upper depth : 178 mm (7,01”)
Material : MDF 19 mm (3/4”)
RECOMMENDED ENCLOSURES for Iridium 12i
SEALED
For best result, use any of these
recommended enclosures.
If you want to modify the dimensions,
use the calculation methods
described on previous page.

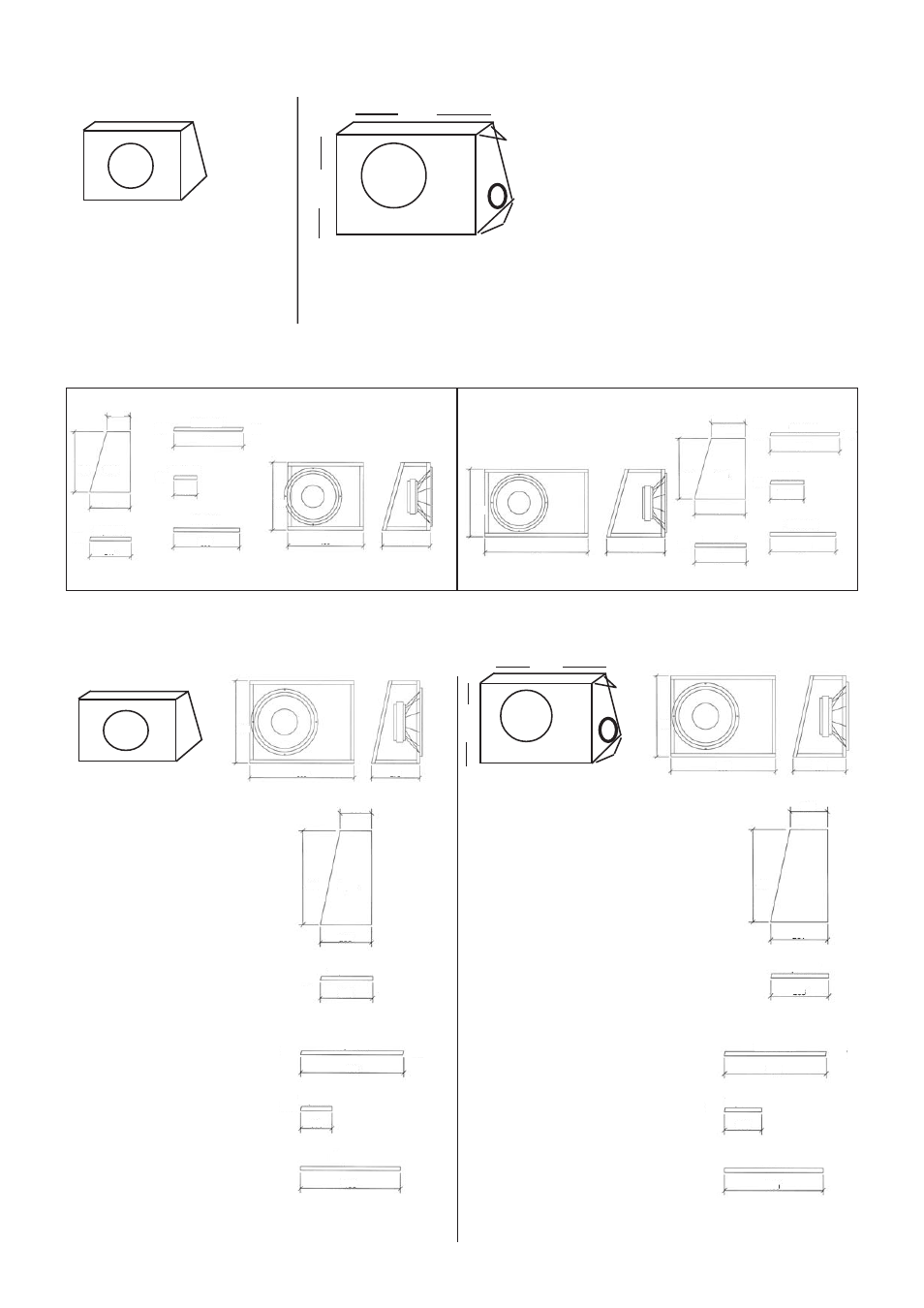

Technical drawing for a
19,3 litre enclosure.
RECOMMENDED ENCLOSURES for Iridium 15
VENTED
Width
Height
Lower
depth
Upper
depth
Technical drawing for a
45 litre enclosure.
The Iridium 15 works well in a
45 litre sealed enclosure.
This is a drawing for the 45
litre box and the separate
boards needed to build a
suitable enclosure.
Sealed enclosure:
Wiring : Parallel VC
Volume : 19,3 / 0,67 (litre / ft 3 )
Damping : Acoustic wool
F3 : 56 Hz
Outside box dimensions:
Width
: 400 mm (15,75”)
Height : 350 mm (13,78”)
Lower depth : 256 mm (10,08”)
Upper depth : 156 mm (6,14”)
Material : MDF 19 mm (0,75”)
Vented enclosure:
Wiring : Parallel VC
Volume : 36,5 / 1,29 (litre / ft 3 )
Port* : 3”(6,8 cm) x 27 cm / 10,63”
Damping : Line inside
F3 : 32 Hz
* Use the port included in the subwoofer
packing.Mount the flanges on the tube ends.
Dont cut the tube, it has the correct length.
Outside box dimensions:
Width
: 550 mm (17,72”)
Height : 350 mm (13,78”)
Lower depth : 313 mm (12,32”)
Upper depth : 213 mm (8,39”)
Material : MDF 19 mm (0,75”)
Technical drawing for a
36,5 litre enclosure.
Vented enclosure:
Wiring : Parallel VC
Volume : 50 / 1,765 (litre / ft 3 )
Port* : 4”(10,3 cm) x 31 cm / 12,2”
Damping : Line inside
F3 : 38,3 Hz
* Use the BP 110 port kit . Mount the flanges
on the tube ends. The port should be on the
side of the enclosure.
Cut the tube to it’s correct length.
Outside box dimensions:
Width
: 600 mm (23,62”)
Height : 450 mm (17,71”)
Lower depth : 304 mm (11,96”)
Upper depth : 204 mm (8,03”)
Material : MDF 19 mm (0,75”)
Technical drawing for a
50 litre enclosure.
The Iridium 15 works well in
a 50 litre vented enclosure.
This is a drawing for the 50
litre box and the separate
boards needed to build a
suitable enclosure.
VENTED
Width
Height
Lower
depth
Upper
depth
For best result, use any of these
recommended enclosures.
If you want to modify the dimensions,
use the calculation methods
described on previous page.
Depth 400
Depth 400
Depth 400
Depth 400
74 0 74 0
74 0
74 0
312
217
212
350
123
400
350
256
370
123
2 pcs
312
Depth 550
Depth 550
Depth 550
Depth 550
74 0
74 0
74 0 74 0
2 pcs
180
370
350
274
269
180
350
550 313
2 pcs
412
422
Depth 600
Depth 600
Depth 600
Depth 600
77 0
77 0 77 0
77 0
170
304
450
600
261
266
465
170
450
Depth 600
Depth 600
Depth 600
Depth 600
78 0
78 0 78 0
78 0
460
600 278
144
2 pcs
235
240
475
144
460
